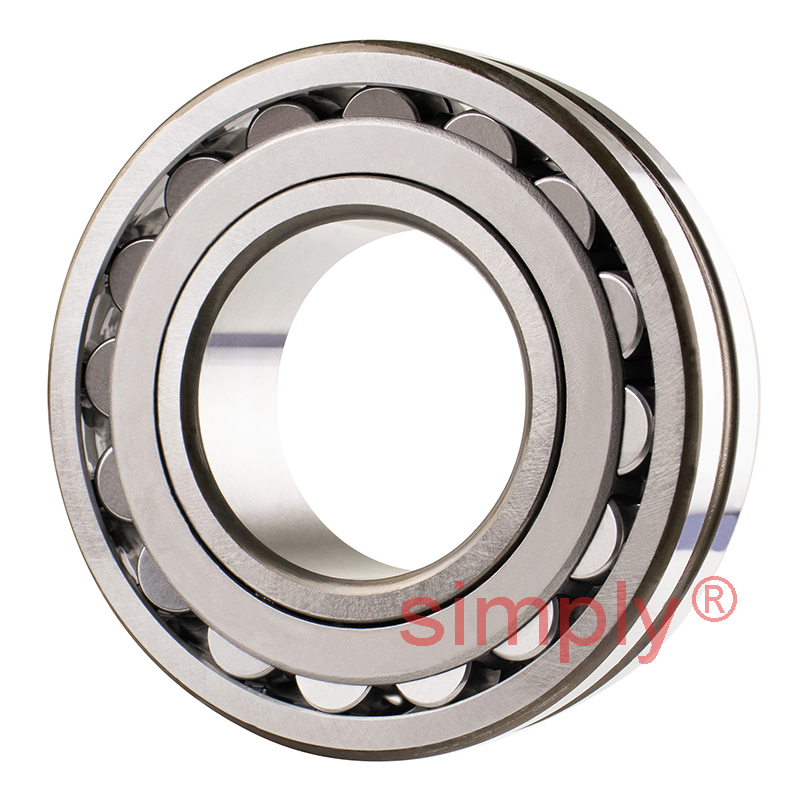

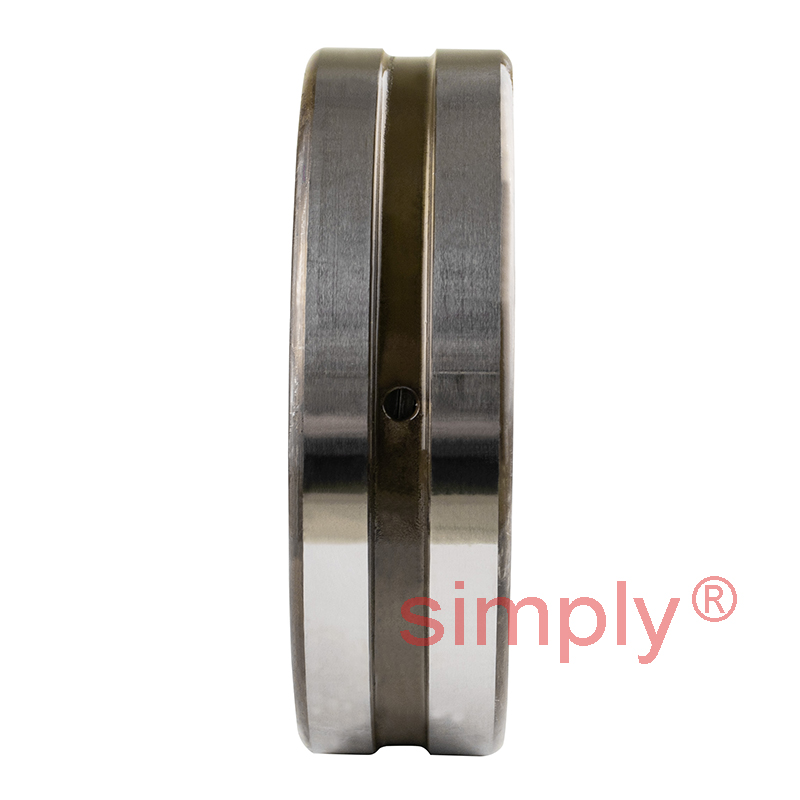

SKF 22208EC3 Spherical Roller Bearing with Cylindrical Bore 40x80x23mm
What is C3? [Click Here]
£61.44
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £54.68 each |
| 4+ | £51.61 each |
| 9+ | £51.00 each |
| 19+ | £50.38 each |
| 29+ | £49.77 each |
| 39+ | £49.15 each |
| 49+ | £46.08 each |
| 59+ | £45.47 each |
| 249+ | £44.85 each |
| 499+ | £44.24 each |
| 999+ | £43.01 each |
In Stock
| Dimensions | ||
| d | = | 40mm |
| D | = | 80mm |
| B | = | 23mm |
| D1 | = | 69.4mm |
| d2 | = | 49.1mm |
| r1r2 min | = | 1.1mm |
| b | = | 5.5mm |
| K | = | 3mm |
| da min | = | 47mm |
| Da max | = | 73mm |
| ra max | = | 1mm |
| Speeds, Loads and Weights | ||
| Dynamic load C | = | 96.5 kN |
| Static load Co | = | 90 kN |
| Fatigue load limit Pu | = | 9.8 kN |
| Reference speed | = | 8000 rpm |
| Limiting speed | = | 11000 rpm |
| Weight | = | 0.53 kg |
| Factors | ||
| Calculation factor e | = | 0.28 |
| Calculation factor Y1 | = | 2.4 |
| Calculation factor Y2 | = | 3.6 |
| Calculation factor Y0 | = | 2.5 |
