SKF NU324ECMC3VL0241 Insocoat Cylindrical Roller Bearing 120x260x55mm
What is C3? [Click Here]
£2143.76
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £1907.95 each |
| 19+ | £1800.76 each |
| 29+ | £1779.32 each |
| 39+ | £1757.88 each |
| 49+ | £1736.45 each |
| 74+ | £1715.01 each |
| 99+ | £1607.82 each |
| 199+ | £1586.38 each |
| 249+ | £1564.95 each |
| 499+ | £1543.51 each |
| 999+ | £1500.63 each |
In Stock

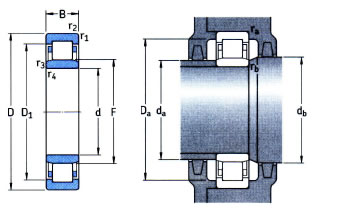

| d | = | 120mm |
| D | = | 260mm |
| B | = | 55mm |
| Dynamic load C | = | 610 kN |
| Static load Co | = | 620 kN |
| Fatigue load limit Pu | = | 69.5 kN |
| Reference speed | = | 2800 rpm |
| Limiting speed | = | 3200 rpm |
| Weight | = | 15.2 kg |
| D1 | = | 219mm |
| F | = | 154mm |
| r1r2 min | = | 3mm |
| r1r4 min | = | 3mm |
| s | = | 3.7mm |
| da min | = | 134mm |
| da max | = | 150mm |
| db min | = | 157mm |
| Da min | = | 225mm |
| Da max | = | 246mm |
| ra max | = | 2.5mm |
| rb max | = | 2.5mm |
| kr | = | 0.15 |
