SKF BMD6206064S2UA008A Sensor Bearing Unit 30x62x16mm
Equivalent to: BMB-6206/064S2/UA002A BMB-6206/064S2/EA002A-SKF
£222.38
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £197.92 each |
| 5+ | £186.80 each |
| 9+ | £184.58 each |
| 14+ | £182.35 each |
| 15+ | £180.13 each |
| 20+ | £177.90 each |
| 49+ | £166.79 each |
In Stock

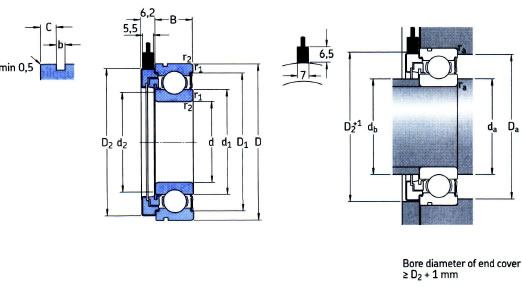

| d | = | 30mm |
| D | = | 62mm |
| B | = | 16mm |
| Dynamic load Cr | = | 20.3 kN |
| Static load Cor | = | 11.2 kN |
| Fatigue load limit Pu | = | 0.48 rpm |
| Limiting speed | = | 7500 rpm |
| No of pulses | = | 64 |
| Period accuracy | = | ±4% |
| Phase shift | = | 90° ±45° |
| Weight | = | 0.22 kg |
| d1 | = | 40.3mm |
| d2 | = | 37.8mm |
| D1 | = | 54.1mm |
| D2 | = | 58mm |
| b | = | 1.9mm |
| C | = | 3.28mm |
| r1r2 min | = | 1mm |
| da min | = | 35mm |
| db min | = | 35mm |
| db max | = | 37.5mm |
| Da max | = | 57mm |
| ra max | = | 1mm |
| Radial internal clearance min | = | 13mm |
| Radial internal clearance max | = | 28mm |
