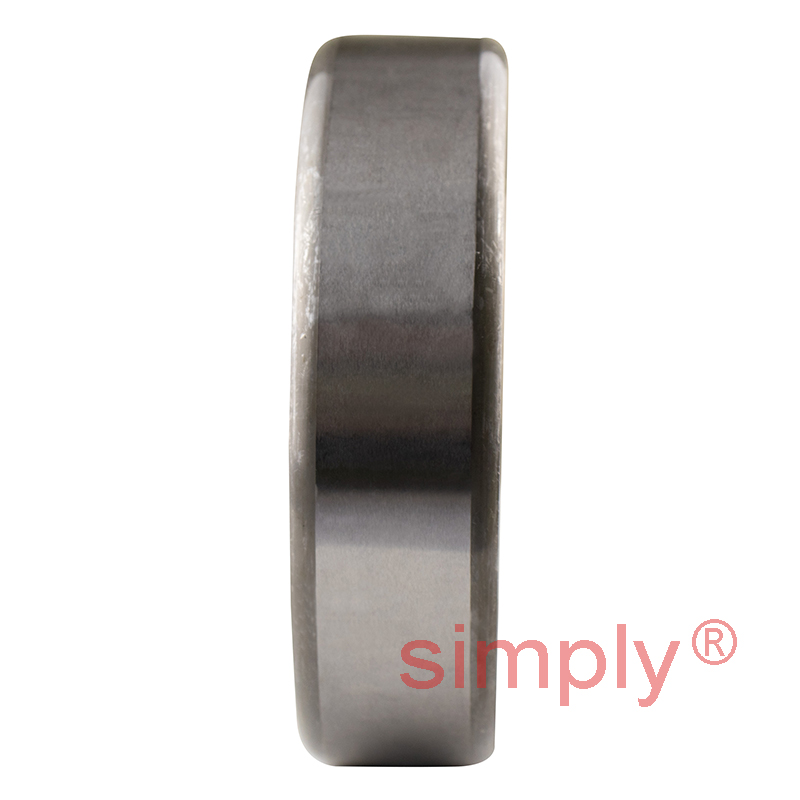

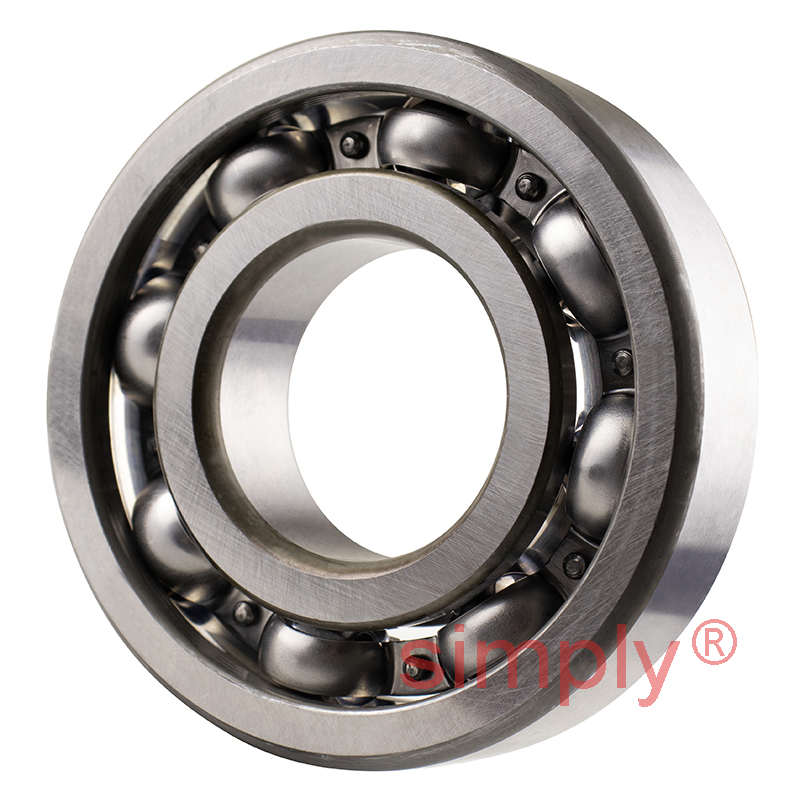

Major Branded 6307C4 Open Deep Groove Ball Bearing 35x80x21mm
Equivalent to: 6307 6307C4
What is C4? [Click Here]
£21.75
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £19.36 each |
| 19+ | £18.27 each |
| 29+ | £18.05 each |
| 39+ | £17.84 each |
| 49+ | £17.62 each |
| 74+ | £17.40 each |
| 99+ | £16.31 each |
In Stock
| d | = | 35mm |
| D | = | 80mm |
| B | = | 21mm |
| Dynamic load C | = | 35.1 kN |
| Static load Co | = | 19 kN |
| Fatigue load limit Pu | = | 0.82 kN |
| Reference speed | = | 19000 rpm |
| Limiting speed | = | 12000 rpm |
| Mass | = | 0.46 kg |
| d1 | = | 49.6mm |
| D1 | = | 65.4mm |
| D2 | = | 69.2mm |
| r1r2 min | = | 1.5mm |
| da min | = | 44mm |
| Da max | = | 71mm |
| ra max | = | 1.5mm |
| Calc factor Kr | = | 0.03 |
| Calc factor | = | 13 |
