Average Rating (2 Reviews)

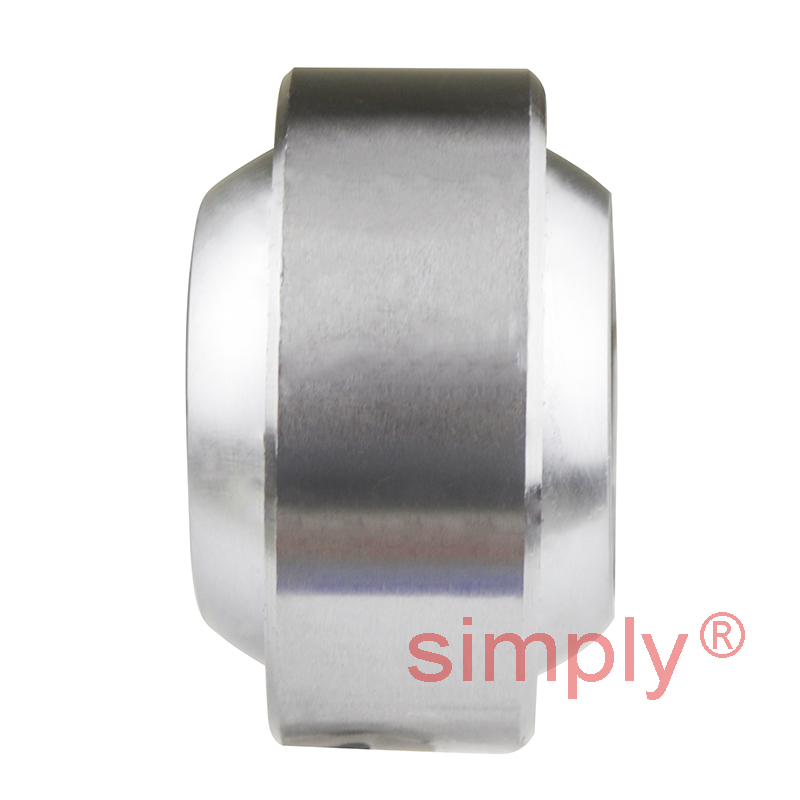

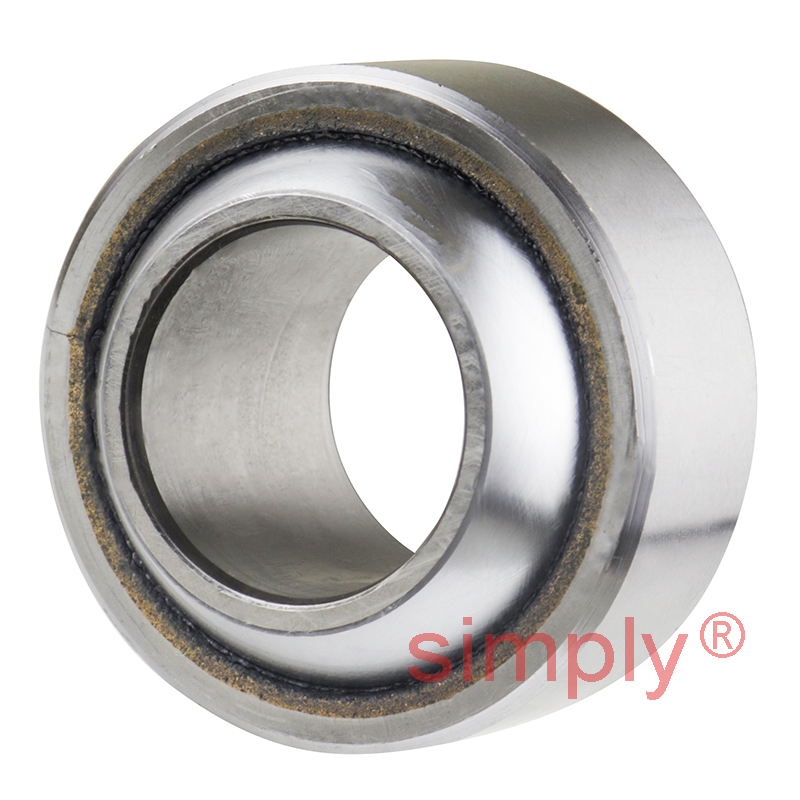

SKF GEH25C Maintenance Free Spherical Plain Bearing Steel / Bronze 25x47x28x18mm
Equivalent to: GE25FW GEG25C
£53.09
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £47.25 each |
| 19+ | £44.59 each |
| 29+ | £44.06 each |
| 39+ | £43.53 each |
| 49+ | £43.00 each |
| 74+ | £42.47 each |
| 99+ | £39.82 each |
In Stock
| d | = | 25mm |
| D | = | 47mm |
| B | = | 28mm |
| C | = | 18mm |
| Max misalignment angle | = | 17 degrees |
| Dynamic load | = | 65.5 kN |
| Static load | = | 166 kN |
| dk | = | 40.7mm |
| r1 min | = | 0.6mm |
| r2 min | = | 0.6mm |
| da min | = | 27.9mm |
| da max | = | 29.5mm |
| Da max | = | 44.4mm |
| Da min | = | 38.7mm |
| ra max | = | 0.6mm |
| rb max | = | 0.6mm |
| Weight | = | 0.2 kg |
