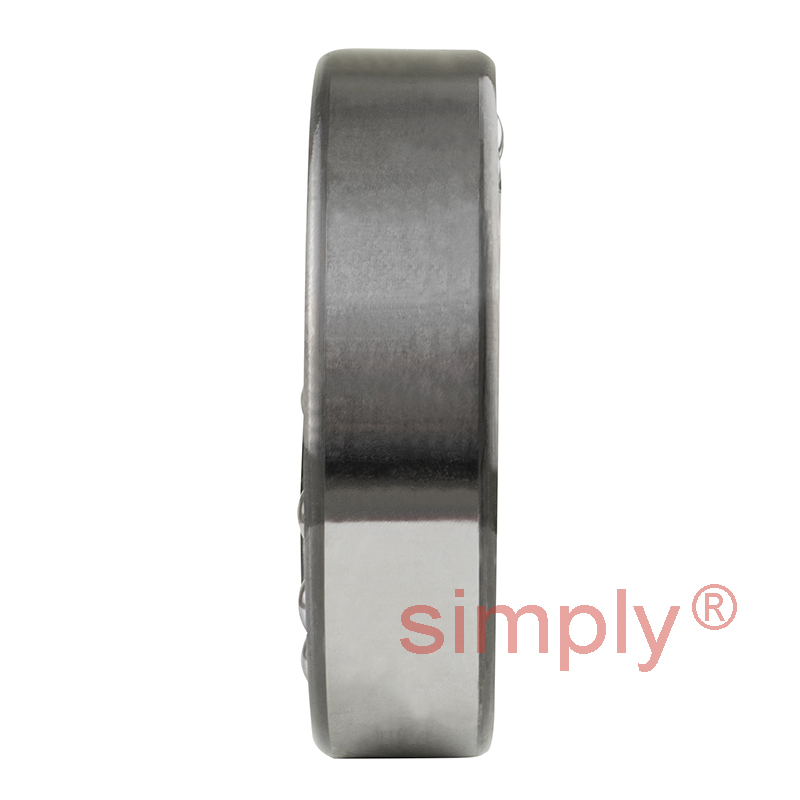

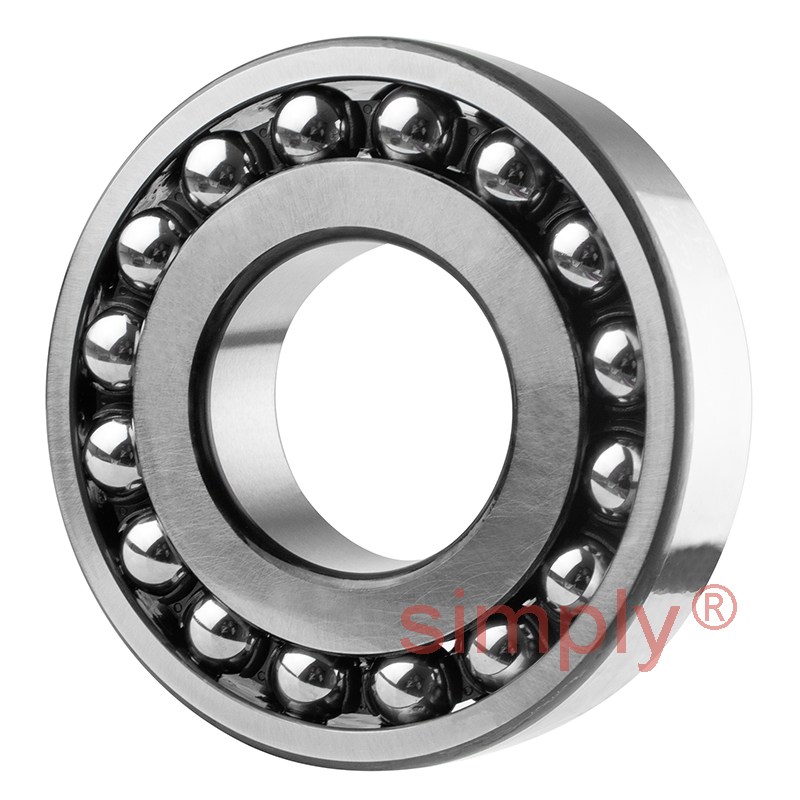

SKF 1309ETN9C3 Open Self Aligning Ball Bearing with Cylindrical Bore 45x100x25mm
What is C3? [Click Here]
£66.53
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £59.21 each |
| 19+ | £55.89 each |
| 29+ | £55.22 each |
| 39+ | £54.55 each |
| 49+ | £53.89 each |
| 74+ | £53.22 each |
| 99+ | £49.90 each |
| 199+ | £49.23 each |
| 249+ | £48.57 each |
| 499+ | £47.90 each |
| 999+ | £46.57 each |
In Stock
| Dimensions | ||
| d | = | 45mm |
| D | = | 100mm |
| B | = | 25mm |
| D1 | = | 89.5mm |
| d2 | = | 67.7mm |
| r1r2 | = | 1.5mm |
| b | = | mm |
| K | = | mm |
| da min | = | 54mm |
| Da max | = | 91mm |
| ra max | = | 1.5mm |
| Calculation Data | ||
| Dynamic load C | = | 39 kN |
| Static load Co | = | 13.4 kN |
| Fatigue load limit Pu | = | 0.7 kN |
| Reference speed | = | 12000 rpm |
| Limiting speed | = | 8500 rpm |
| Calculation factor e | = | 0.23 |
| Calculation factor Y0 | = | 2.8 |
| Calculation factor Y1 | = | 2.7 |
| Calculation factor Y2 | = | 4.2 |
| Weights | ||
| Weight | = | 0.96 kg |
