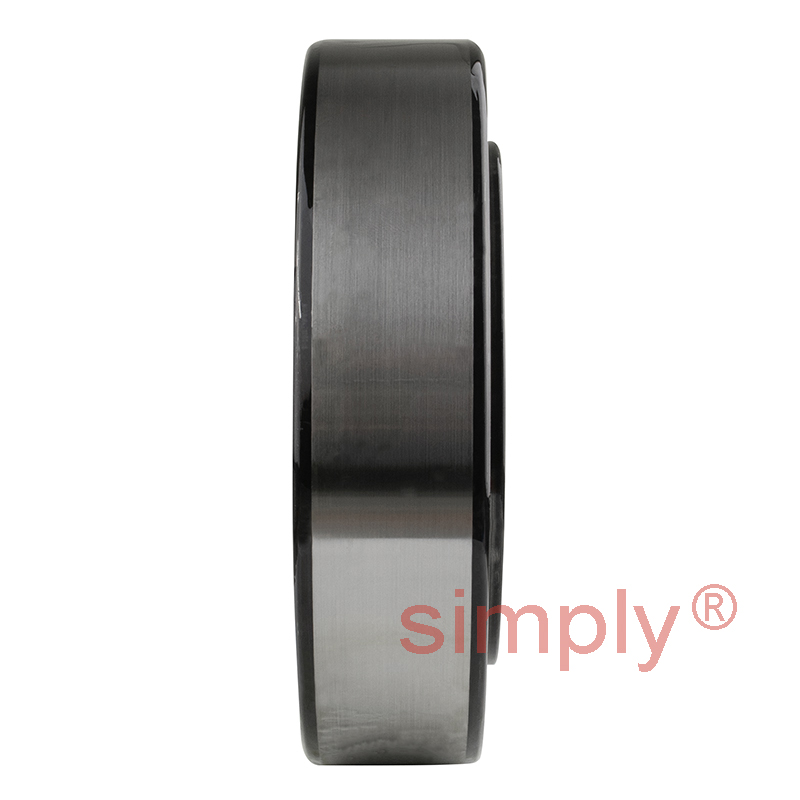

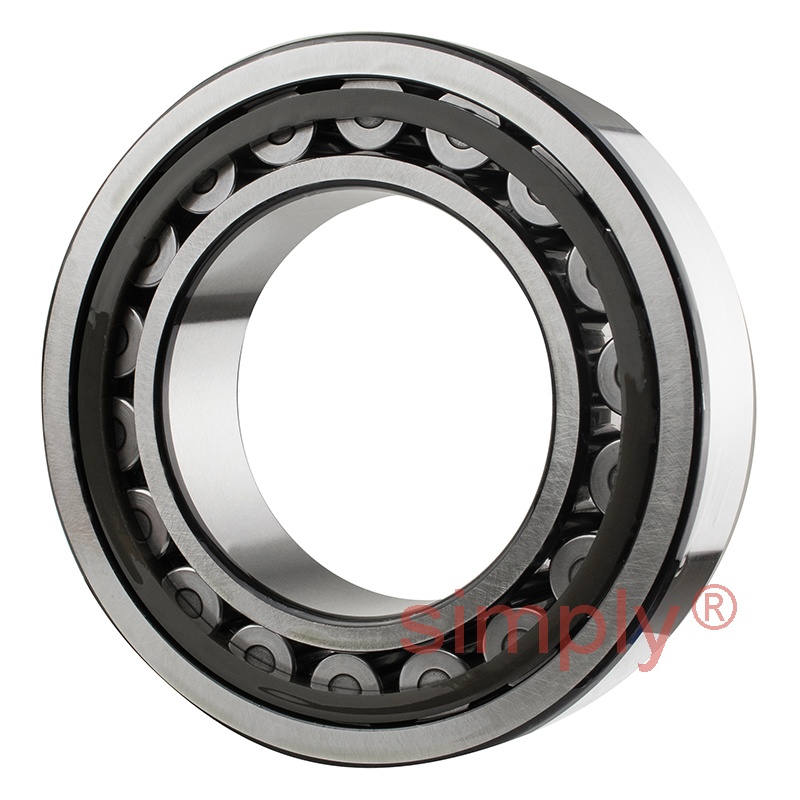

SKF NJ2215ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 75x130x31mm
What is C3? [Click Here]
£145.99
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £129.93 each |
| 19+ | £122.64 each |
| 29+ | £121.18 each |
| 39+ | £119.72 each |
| 49+ | £118.26 each |
| 74+ | £116.80 each |
| 99+ | £109.50 each |
In Stock
| d | = | 75mm |
| D | = | 130mm |
| B | = | 31mm |
| Dynamic load C | = | 186 kN |
| Static load Co | = | 208 kN |
| Fatigue load limit Pu | = | 27 kN |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 6000 rpm |
| Weight | = | 1.6 kg |
| Alt cage | = | J.ML |
| d1 | = | 94.3mm |
| D1 | = | 114mm |
| F,E | = | 88.5mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| S | = | 1.7mm |
| da min | = | 84mm |
| da max | = | 86mm |
| db | = | 97mm |
| Da max | = | 121mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| kr | = | 0.2 |
