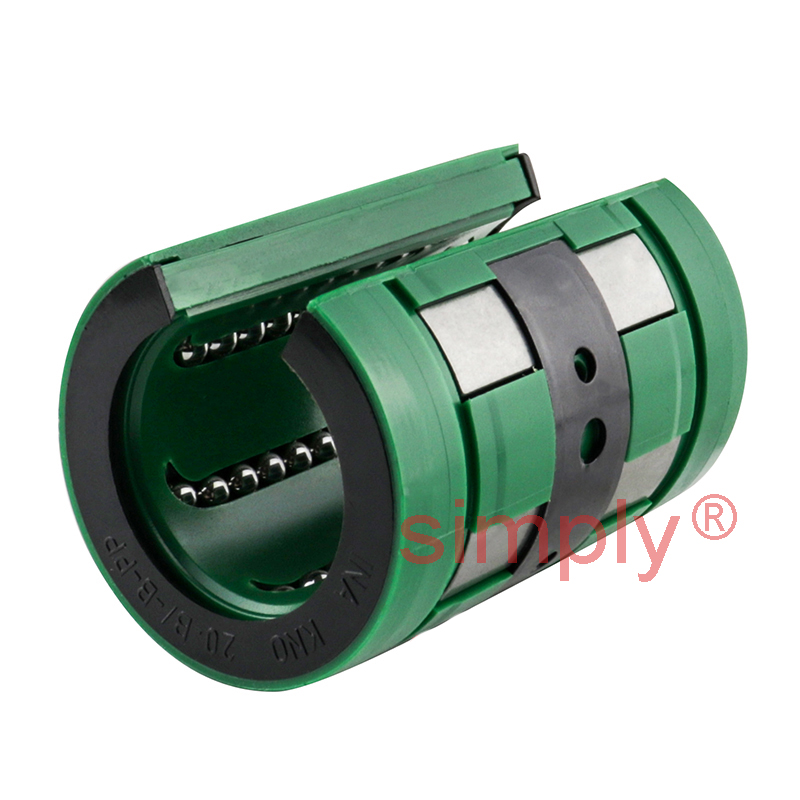

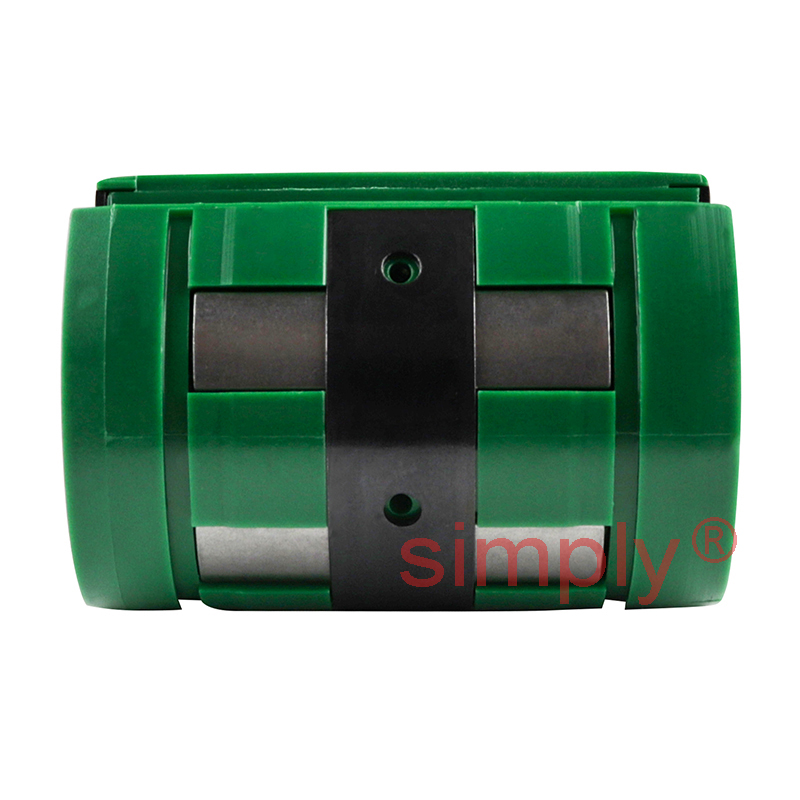

INA KNO20 Relubricatable Open Linear Ball Bushing 20x32x45mm

Page Feedback?

SKU: KNO20-B-INA

£64.72 ex VAT

Price Breaks

Quantity	Prices
3+	£57.60 each
5+	£54.36 each
10+	£53.72 each
15+	£53.07 each
20+	£52.42 each
30+	£51.78 each
40+	£48.54 each

3+ £57.60 each
5+ £54.36 each
10+ £53.72 eachClick Here…

In Stock

Add to a Save List

INA KNO..-B Linear Ball Bearings: These light range linear ball bearings have adjustable clearance in the appropriate housing. In order to compensate misalignments arising from manufacturing tolerances, mounting errors and shaft deflection, the linear bearings of KNO..-B are self-aligning up to ±30 deg. Their robust construction allows operating even under aggressive operating conditions. The bearings are maintenance-free for many applications due to the initial greasing with a high quality grease. If necessary, they can be relubricated via the radial holes arranged in the centre of the bearing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Allows operating under aggressive operating conditions, maintenance-free, relubricatable.

Brand / Quality: INA - High Quality
Inside Diameter: 20mm
Outside Diameter: 32mm
Width: 45mm

Fw	=	20mm
D	=	32mm
L	=	45mm
Number of rows of balls	=	5
B2	=	9mm
b1 max	=	2.5mm
N4	=	3mm
T4	=	0.9mm
α	=	55°
Mass	=	0.05 kg
Basic dynamic load rating C max	=	1740 N
Basic static load rating C0 max	=	1240 N
