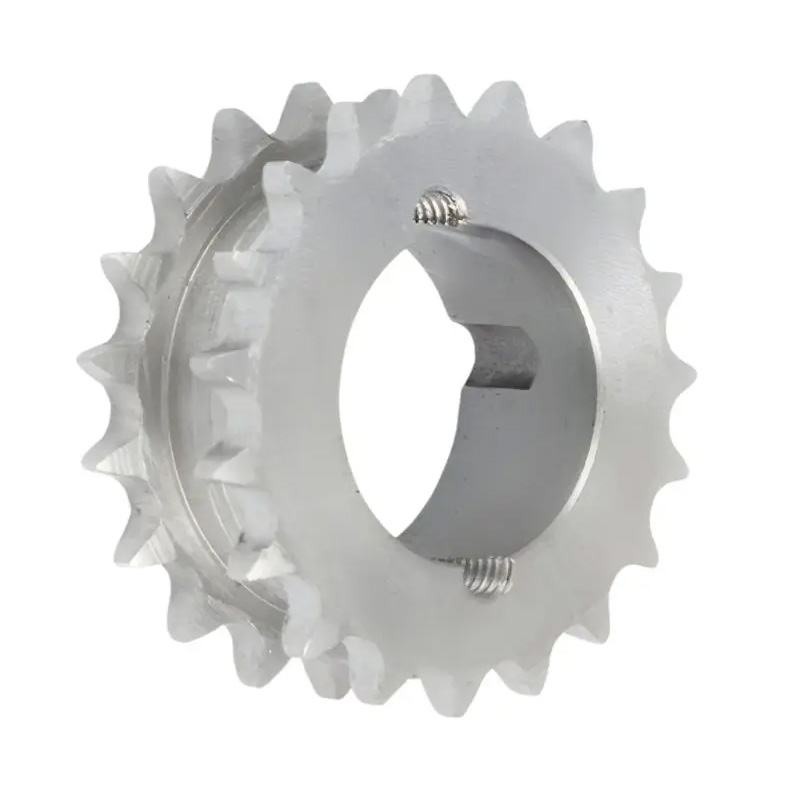

15 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
Equivalent to: 671-030 DS12B1-15TB 6DS15TL
£29.99
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £26.69 each |
| 9+ | £25.19 each |
| 19+ | £24.89 each |
| 29+ | £24.59 each |
| 49+ | £24.29 each |
| 74+ | £23.99 each |
| 99+ | £22.49 each |
| 199+ | £22.19 each |
| 249+ | £21.89 each |
| 499+ | £21.59 each |
| 999+ | £20.99 each |
In Stock

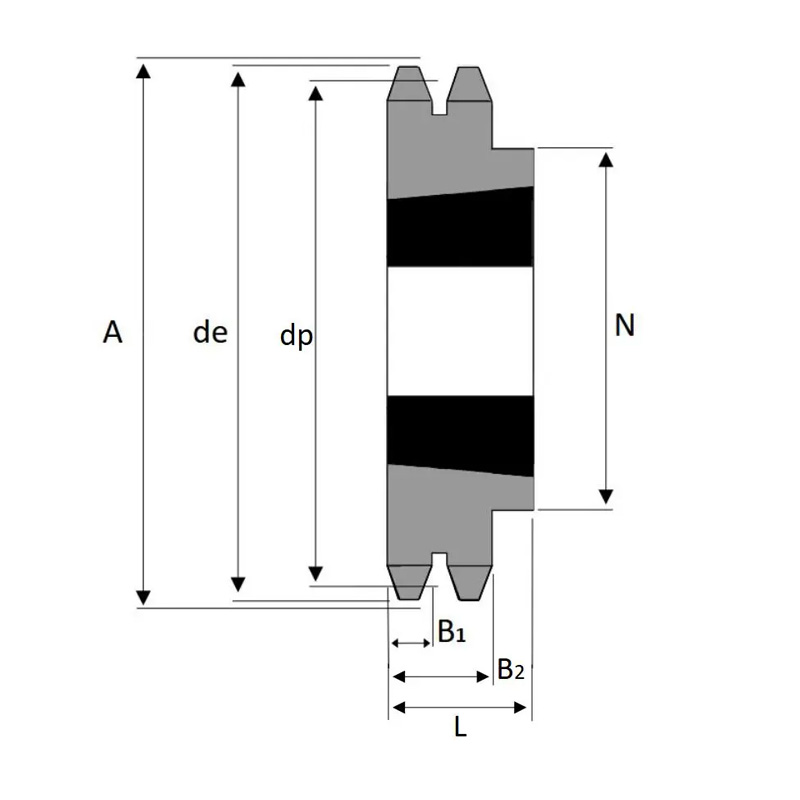

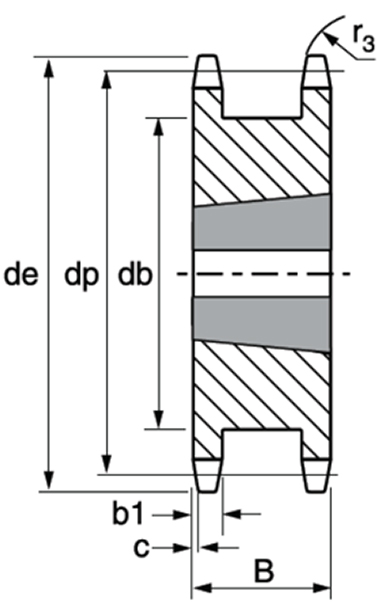

| No. of Teeth | = | 15 |
| Pitch Diameter dp | = | 91.63mm |
| Outer Diameter de | = | 99.8mm |
| Width B | = | 45mm |
| Hub Diameter N | = | 71mm |
| Chamfer C | = | 45mm |
| Tooth Radius r3 | = | 2mm |
| Tooth Width b1 | = | 19mm |
| Taper Bush Series | = | 1610 Click Here |
| Weight | = | 0.826 kg |
