SKF Deep Groove Ball Bearing Puller Kit: The SKF TMMD 100 is especially designed to allow easy and quick dismounting of deep groove ball bearings with interference fit on both rings. The puller is suitable for use in both blind housings and shaft applications. In addition to dismounting open bearings, the TMMD 100 can be used to dismount sealed bearings after the removal of the seal. The puller kit contains six sets of different size puller arms, two spindles and one handle packed in a carrying case. The TMMD 100 is suitable for dismounting up to 71 different SKF deep groove ball bearings from shaft diameter ranging between 10 and 100 mm (0.4 - 3.9 in). Benefits: The claws are especially designed to facilitate a precise fit in the bearing’s raceways, providing good grip and allowing the application of higher dismounting forces. The puller arms are made of a single piece, laser-cut hardened-steel for strength and longevity. Note: The TMMD100 suits the following bearing series and sizes, 6000-6020, 6200-6218, 6300-6313, 6403-6410, 62/22, 62/28, 63/22, 63/28, 16002, 16003, 16011, 16100, 16101
Brand / Quality: SKF - High Quality
Puller Arm A1-135mm (5.3in.)
=
3 Pieces
Puller Arm A2-135mm (5.3in.)
=
3 Pieces
Puller Arm A3-137 (5.4in.)
=
3 Pieces
Puller Arm A4-162mm (6.4in.)
=
3 Pieces
Puller Arm A5-167mm (6.6in.)
=
3 Pieces
Puller Arm A6-170mm (6.7in.)
=
3 Pieces
Spindle and Nut
=
2 Pieces
Handle
=
1 Piece
Effective Arm Length
=
135-170mm (5.3-5.7 in.)
Dimensions of Case
=

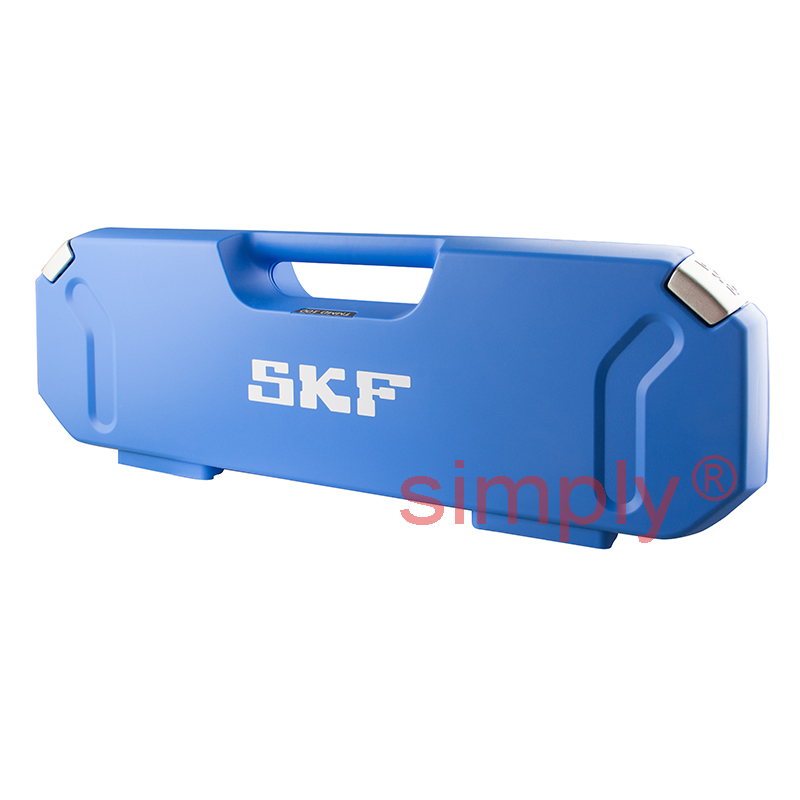

395x300x105mm (15.5x11.8x4.1 in.)
No further information is available.
