Sedis Delta 12B-2 BS Duplex Roller Chain 15FT Length 3/4 inch Pitch Simply Bearings Ltd

Sedis Delta® HR Chains for Severe Working Conditions (Abrasion, Shocks, Jerks): British standard chain with high resistance to abrasion and wear. The chain links have a steel hardened pin for ultra-high performance. Chains are pre-tensioned at 30-45% of the breaking load. Chains 08B-16B are lubricated with a new high performance wax offering an enhanced anti-wear protection which can work at temperatures from -30 Degrees Celsius to 130 Degrees Celsius. Other chains are pre-lubricated with initial plant lubrication.

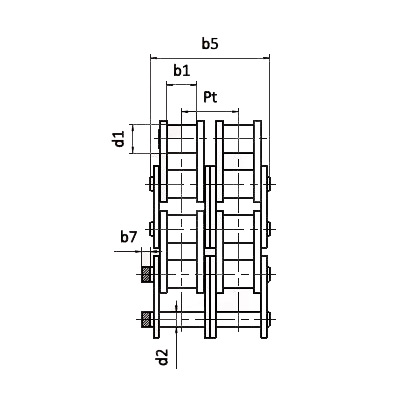

Pitch P	=	19.05mm
d1 max	=	12.07mm
b1 min	=	11.68mm
b5 max	=	41.8mm
d2 max	=	5.72mm
h2 max	=	16.2mm
Pt	=	19.46mm
b7 min	=	1.5mm
Ultimate Tensile Strength OSI 606 min	=	57.8 kN
Ultimate Tensile Strength DELTA® HR min	=	61 kN
Ultimate Tensile Strength DELTA® HR nom	=	69.5 kN
Mass per meter	=	2.35 kg
