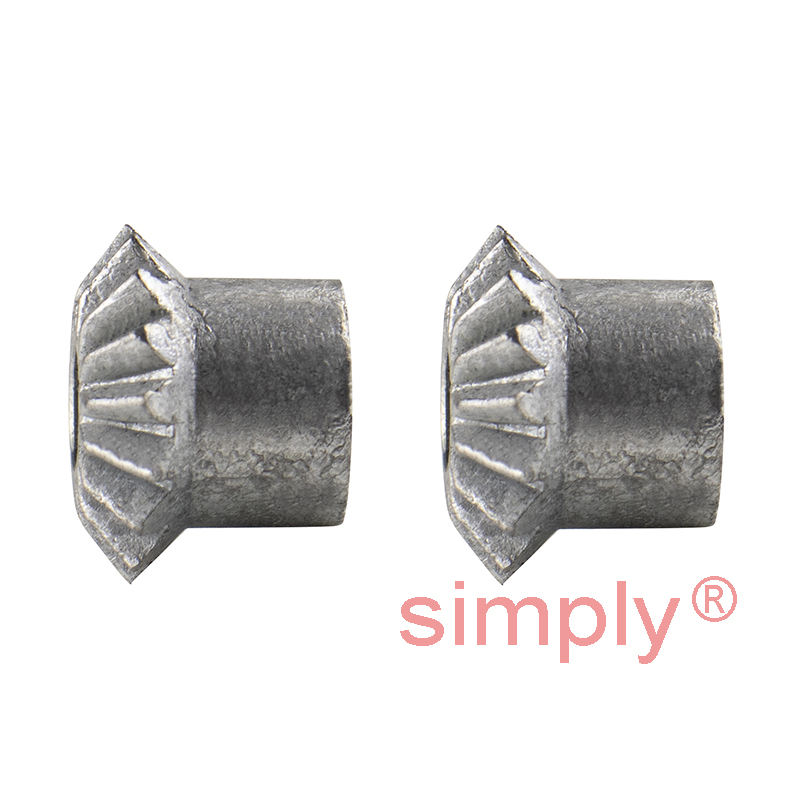

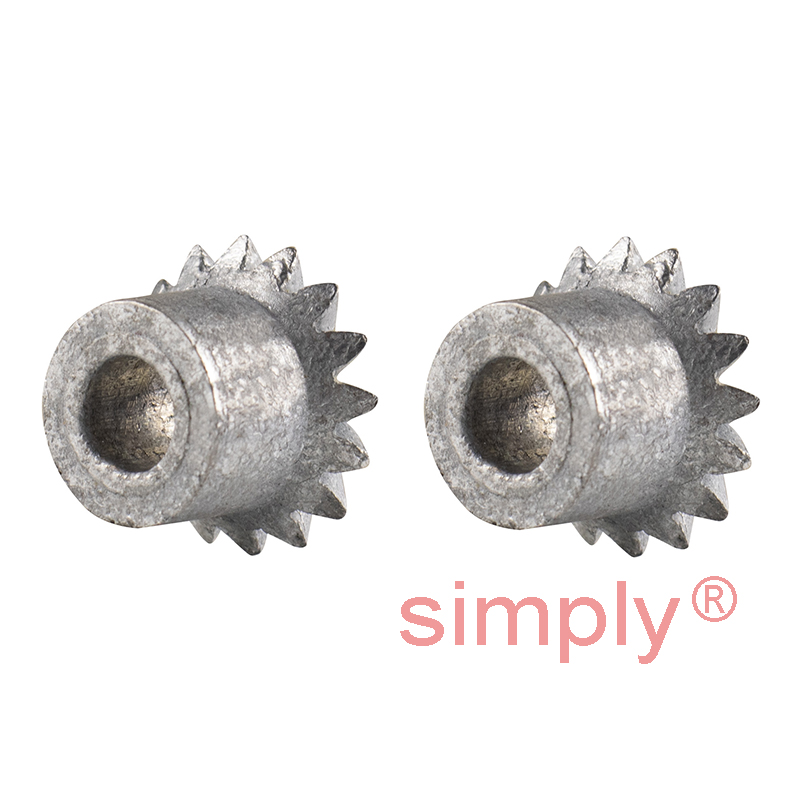

ZBM10/16 16 Tooth Metric Die Cast Zinc Mitre Gear (Set of 2) 1.0 MOD 20 Deg Pressure Angle
- Supplied in pairs
- Cut to the Gleason System
- Bore tolerance H8
Equivalent to: ZBM10/16
£7.47
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £6.65 each |
| 9+ | £6.27 each |
| 19+ | £6.20 each |
| 29+ | £6.13 each |
| 49+ | £6.05 each |
| 74+ | £5.98 each |
| 99+ | £5.60 each |
| 199+ | £5.53 each |
| 249+ | £5.45 each |
| 499+ | £5.38 each |
| 999+ | £5.23 each |
In Stock

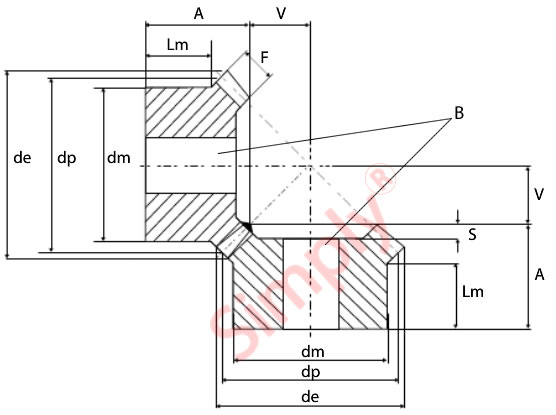

| Pitch Module | = | 1.0 |
| No. Teeth | = | 16 |
| dp | = | 16mm |
| A+V | = | 17.7mm |
| dm | = | 12mm |
| Bore (H9) | = | 6mm |
| F | = | 4.5mm |
| A | = | 13.1mm |
| de | = | 17.3mm |
| Lm | = | 7.5mm |
| S | = | 0mm |
