Disc Opener
Application conditions:
Single disc or double disc arrangements are used to open the furrow
Bearings are pressed into the housing which is riveted or screwed to the disc. The disc assembly is bolted to the machine frame
High loads are encountered in no-till farming and due to angle of pull
Rigid assembly is required for a precise disc mounting which creates a consistent furrow
Dusty and sometimes moist environment
Benefits and functional features:
Bolt-on-performance:
HUB assembly is available for ease of mounting
Reduced labour cost and eliminate damage due to incorrect assembly
Increased productivity and bearing life in field:
Optimized internal geometry
High load capacity
High contamination feature package with exclusive sealing system
Precise furrow opening:
Rigid disc
Minimized operating internal clearance
Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

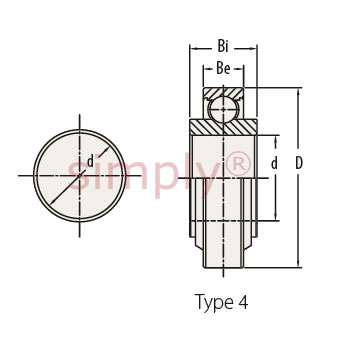

A/d
=
0.635 inch = 16.129mm (Tolerance +.0000 to minus ) D
=
2.09 inch = 53.086mm (Tolerance +.0000 to minus ) B/Bi
=
0.969 inch = 24.608mm Be
=
0.7189 inch = 18.26mm Seal/Shield Type
=
P, TRL Seal
