304 Stainless Steel Hi-Torque Heavy Duty Hose Clamp: Hi-Torque hose clamps are specifically designed for use with tough, wire-reinforced hoses that require higher sealing pressures, and for when an extra margin of safety and reliability is required. Hi-Torque heavy-duty stainless steel worm drive hose clamps provide unrivalled hose sealing ability, quality and strength and regularly outperform their more “elaborately” designed rivals. Meaning Hi-Torque can be used in every application where an adjustable hose clamp is required. Hi-Torque hose clamps are quicker to fit, have no loose parts to lose in awkward places and take up less space and have a larger adjustment range than any other heavy-duty clamp.

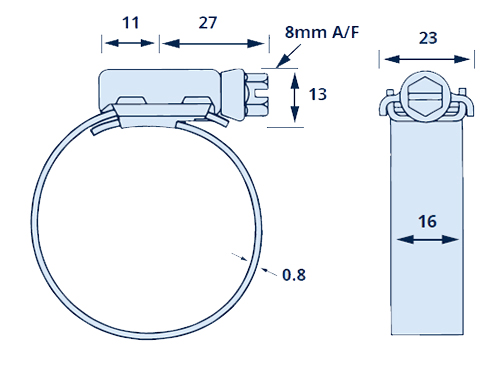

Brand / Quality: JCS - High Quality Width: 16mm Min Adjustment Range: 25mm Max Adjustment Range: 40mm
BS.No
=
40
Adjustment Range (mm)
=
25-40mm
Adjustment Range (inch)
=
1 - 1-5/8 inch
Band Width (+/- 0.1)
=
16mm
Band Thickness (+/- 0.1)
=
0.8mm
Recommended Torque Nm
=
15Nm
Screw
=
8mm A/F
Write a review
There are currently no reviews - but you could help other users and write one.
Write a Product Review
JCS HTM40 304 Stainless Steel Hi-Torque Hose Clip Adjustment Range 25-40mm Band Width 16mm
