Chiavette KL5 Steel Clevis Pin Retainers For Use With PKS/PKSAL5 Clevis Pin - Allow 7-10 Days
- Over 70 years of experience in manufacturing
- Part of the world-renowed Timken company
- High-quality components
From: Contact Us for Availability
Limited Availability
Please Enquire

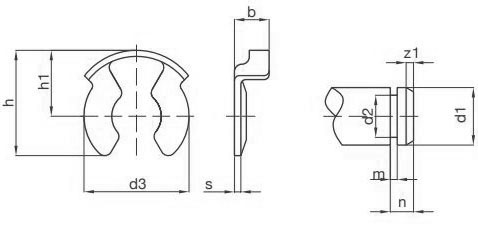

| Dimensions | ||
| No. | = | KL5 |
| Material | = | Steel |
| d1 | = | 5mm |
| d3 | = | 7.5mm |
| h | = | 8.7mm |
| h1 | = | 5.2mm |
| b | = | 2.8mm |
| s | = | 0.5mm |
| d2 | = | 4mm |
| m | = | 0.74mm (+0.1mm) |
| n | = | 2.5mm (+0.3mm) |
| z1 | = | 0.5mm |
| Max axial Load (When used with PKS Pin) | = | 3kN |
| Max Axial Load (When used with PKSAL Pin) | = | 0.65kN |
| Weight | = | 0.000195kg |
| Use With | ||
| Steel Pin | = | PKS5 |
| Aluminium Pin | = | PKSAL5 |
