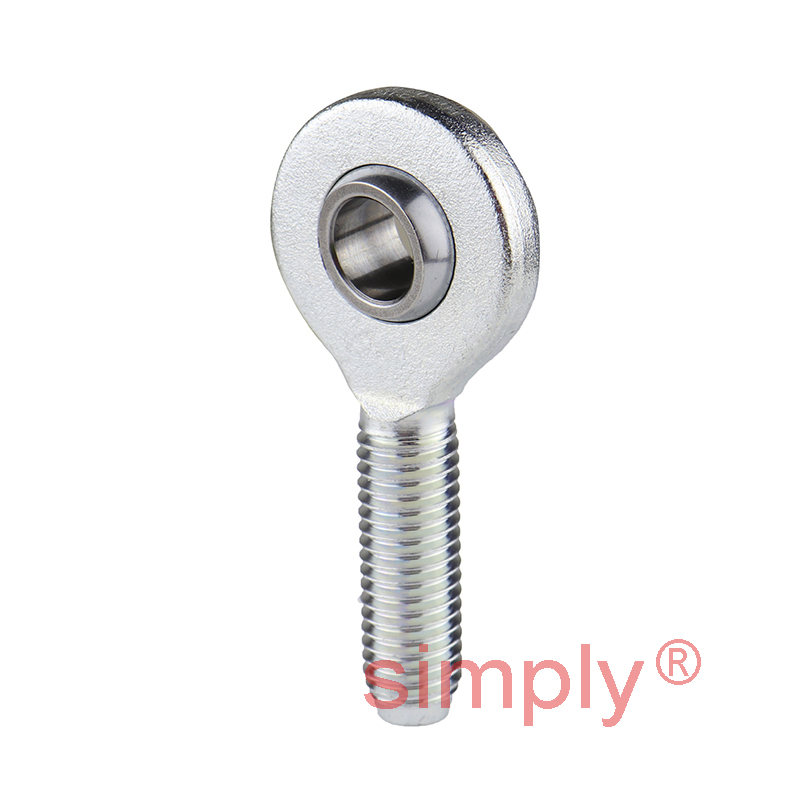

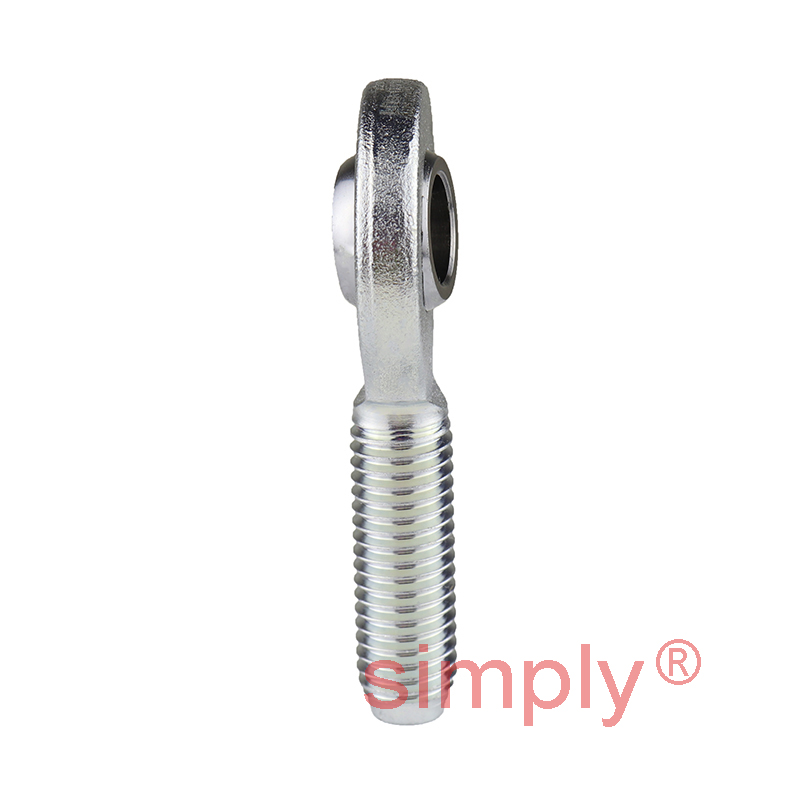

Durbal EM06-20-501 Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M6 Thread
- Made in Germany
- Longer durability
- Good corrosion resistance
- Free from non-ferrous metals
- Suitable for use with impact loads
Equivalent to: GAR6UK SA6C
£17.24
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £15.35 each |
| 19+ | £14.48 each |
| 29+ | £14.31 each |
| 39+ | £14.14 each |
| 49+ | £13.97 each |
| 74+ | £13.79 each |
| 99+ | £12.93 each |
| 199+ | £12.76 each |
| 249+ | £12.59 each |
| 499+ | £12.42 each |
| 999+ | £12.07 each |
In Stock
| Thread Direction | = | -501 (Right) |
| d | = | 6mm |
| G (Thread) | = | M6 |
| B | = | 6mm |
| C1 | = | 4mm |
| h | = | 36mm |
| d1 | = | 8mm |
| d2 | = | 20mm |
| dk | = | 10mm |
| l1 | = | 22mm |
| l2 | = | 46mm |
| l7 | = | 11mm |
| tilt angle α | = | 13 deg |
| weight | = | 0.014kg |
| basic load rating dyn C | = | 2.5 kN |
| basic load rating stat Co | = | 6.4 kN |
| radial clearance CN | = | 0-10 µm |
