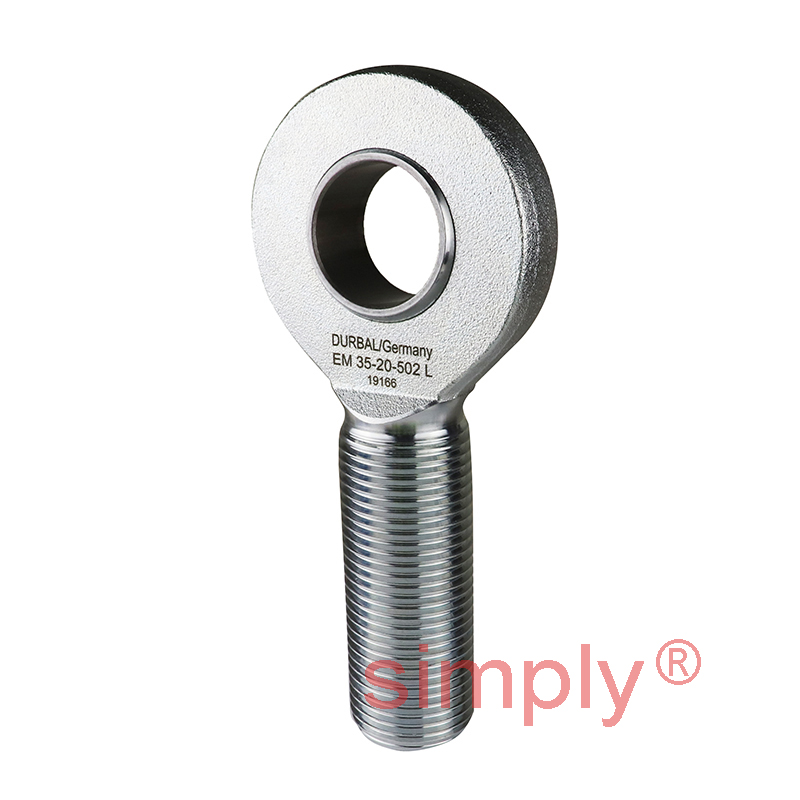

Durbal EM35-20-502 Maintenance Free Left Hand Metric Steel / PTFE Lined Male Rod End M36x3 Thread
- Made in Germany
- Longer durability
- Good corrosion resistance
- Free from non-ferrous metals
- Suitable for use with impact loads
£126.91
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £112.95 each |
| 19+ | £106.61 each |
| 29+ | £105.34 each |
| 39+ | £104.07 each |
| 49+ | £102.80 each |
| 74+ | £101.53 each |
| 99+ | £95.19 each |
| 199+ | £93.92 each |
| 249+ | £92.65 each |
| 499+ | £91.38 each |
| 999+ | £88.84 each |
In Stock
| Thread Direction | = | -502 (Left) |
| d | = | 35mm |
| G (Thread) | = | M36x3 |
| B | = | 25mm |
| C1 | = | 20mm |
| h | = | 140mm |
| d1 | = | 39mm |
| d2 | = | 82mm |
| dk | = | 47mm |
| l1 | = | 92mm |
| l2 | = | 181mm |
| l7 | = | 38mm |
| tilt angle α | = | 6.5 deg |
| weight | = | 1.33kg |
| basic load rating dyn C | = | 70.4 kN |
| basic load rating stat Co | = | 180.8 kN |
| radial clearance CN | = | 0-10 µm |
