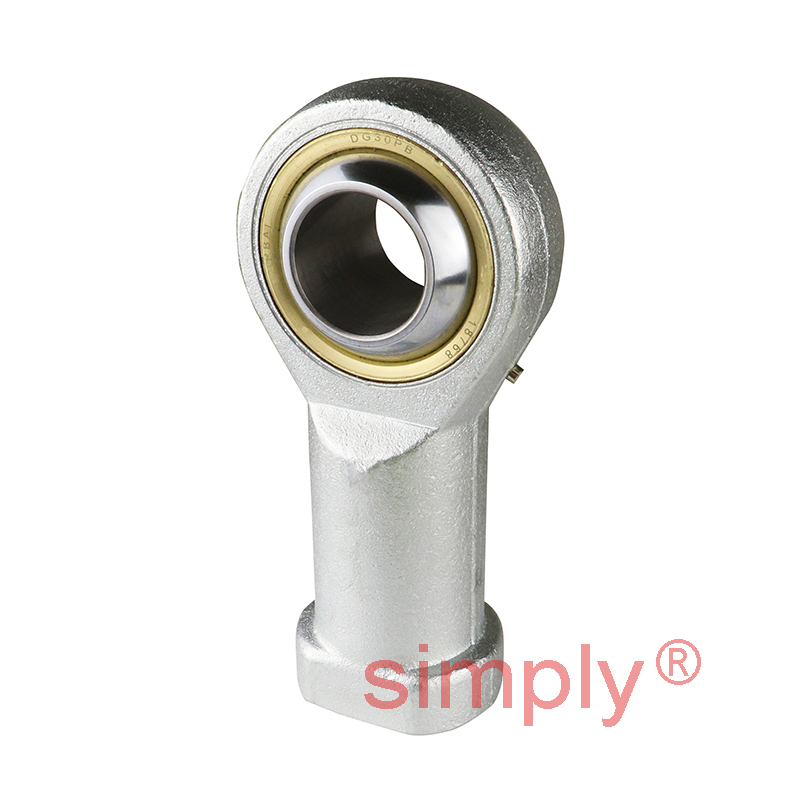

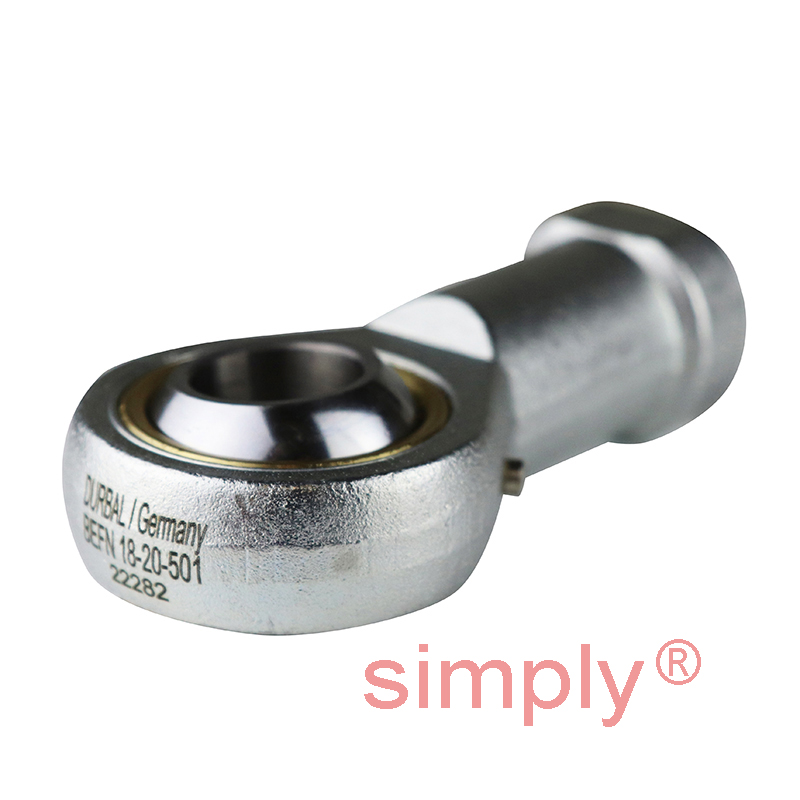

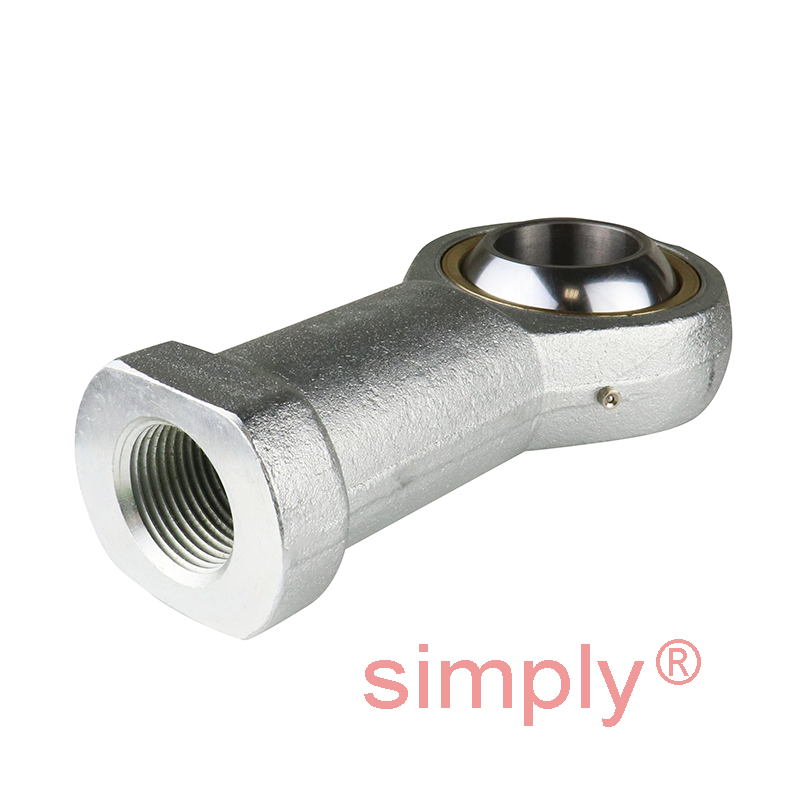

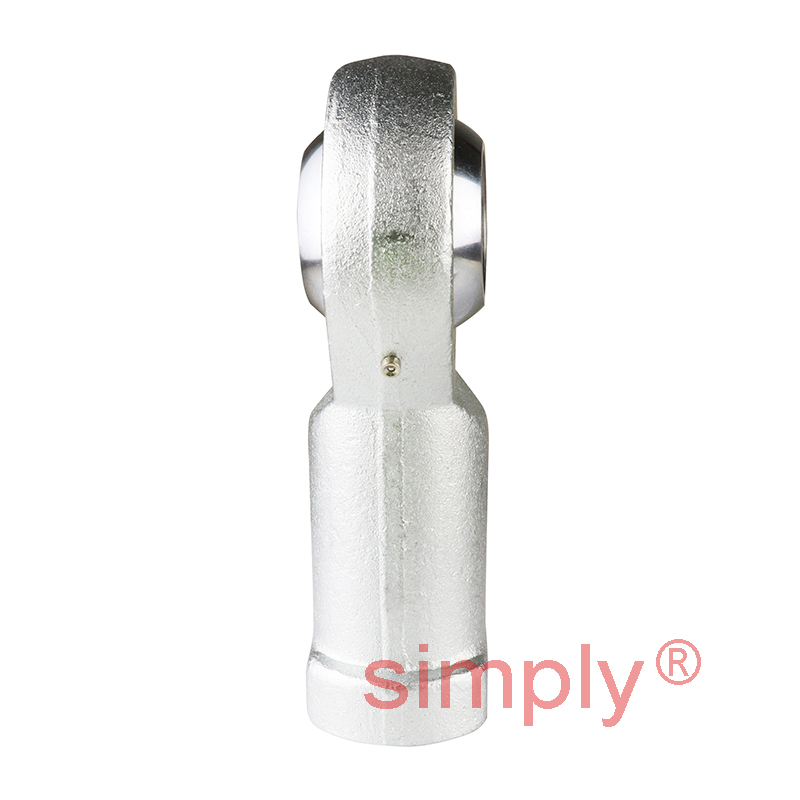

Durbal BEFN18-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M18x1.5 Thread
- Made in Germany
- Good corrosion resistance
- Extremely high loads resistant
- For use in situations of alternating stresses or impact loads
Equivalent to: GIKR18PB SIKAC18M
£53.61
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £47.71 each |
| 19+ | £45.03 each |
| 29+ | £44.50 each |
| 39+ | £43.96 each |
| 49+ | £43.42 each |
| 74+ | £42.89 each |
| 99+ | £40.21 each |
In Stock
| Thread Direction | = | -501 (Right)d |
| G (Thread) | = | M18x1.5mm |
| B | = | 23mm |
| C1 | = | 16.5mm |
| h1 | = | 71mm |
| d1 | = | 21.8mm |
| d2 | = | 46mm |
| d3 | = | 25mm |
| d4 | = | 31mm |
| dk | = | 31.7mm |
| l3 | = | 32mm |
| l4 | = | 94mm |
| l5 | = | 10mm |
| l7 | = | 24mm |
| W | = | 27mm |
| tilt angle α | = | 15 deg |
| weight | = | 0.32kg |
| basic load rating dyn C | = | 17.6 kN |
| basic load rating stat Co | = | 44 kN |
| radial clearance CN | = | 50-110 µm |
