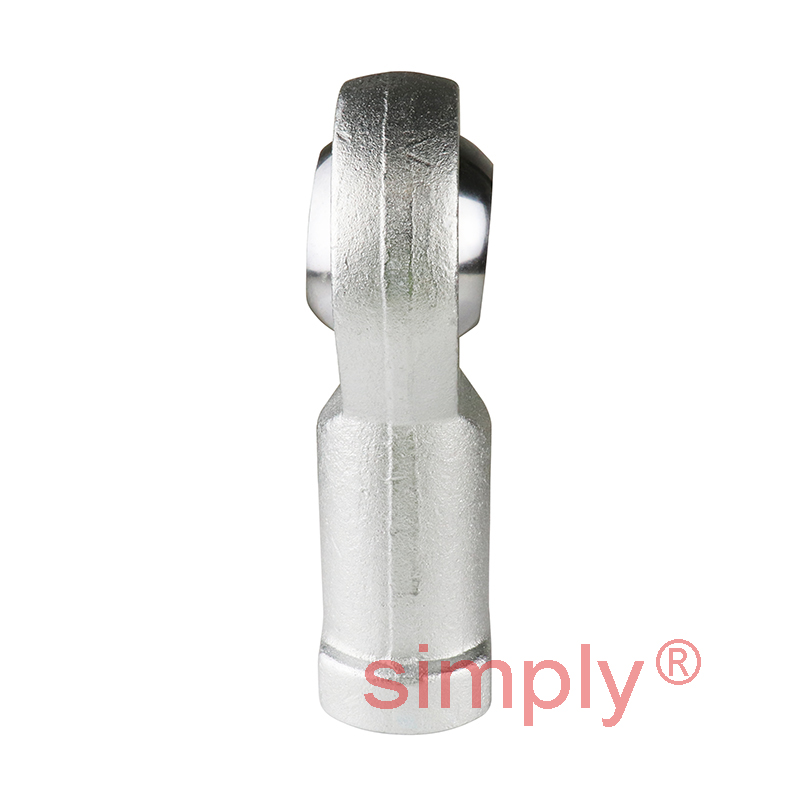

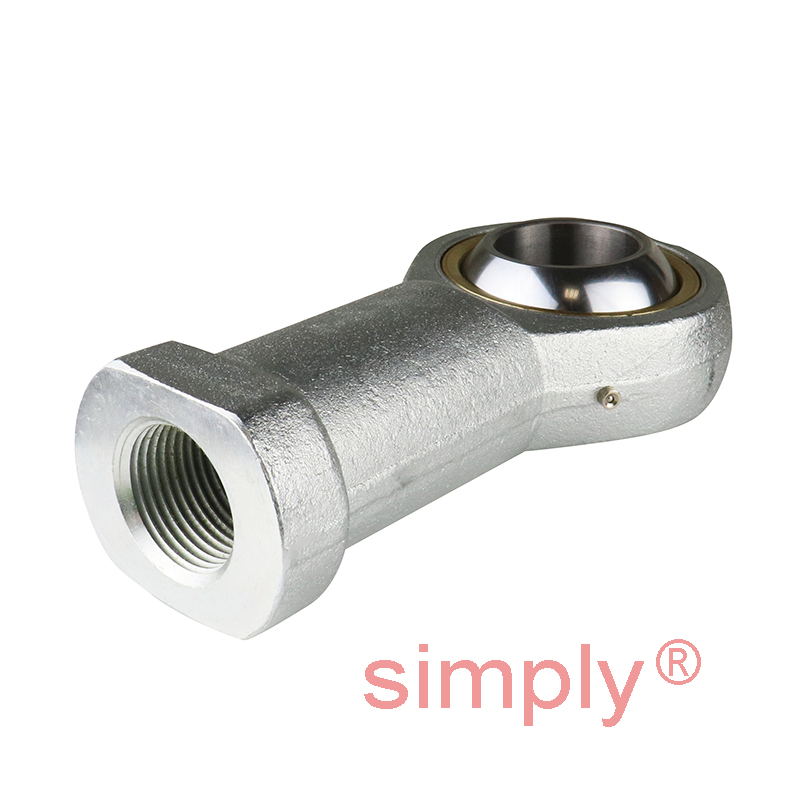

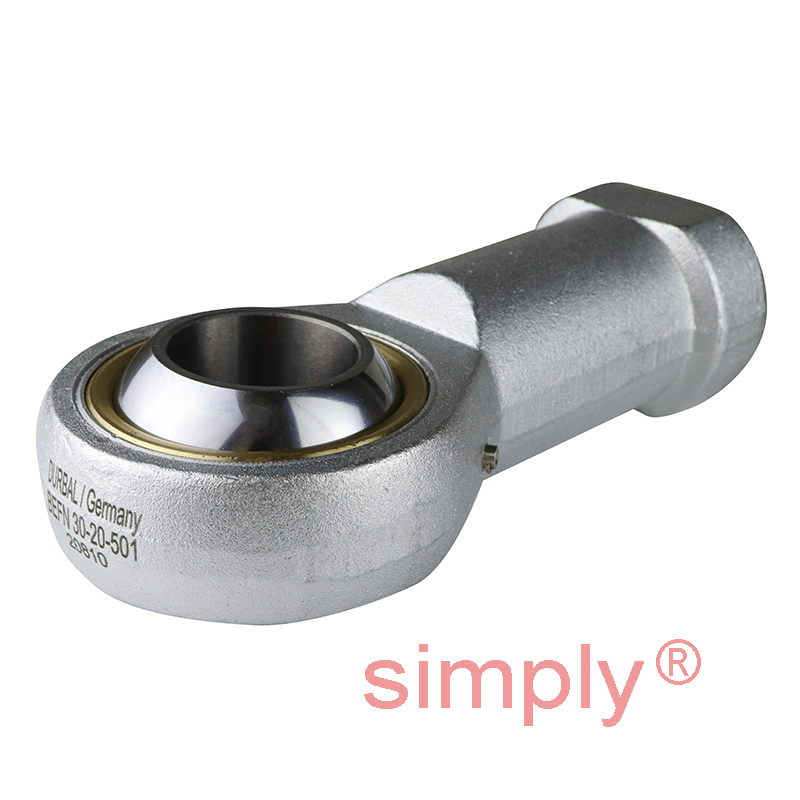

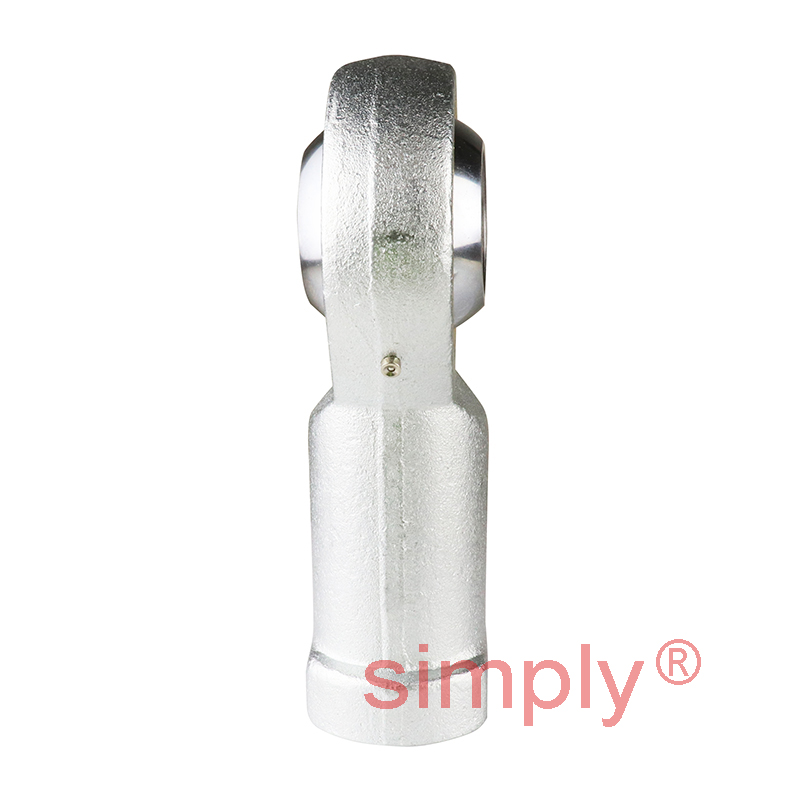

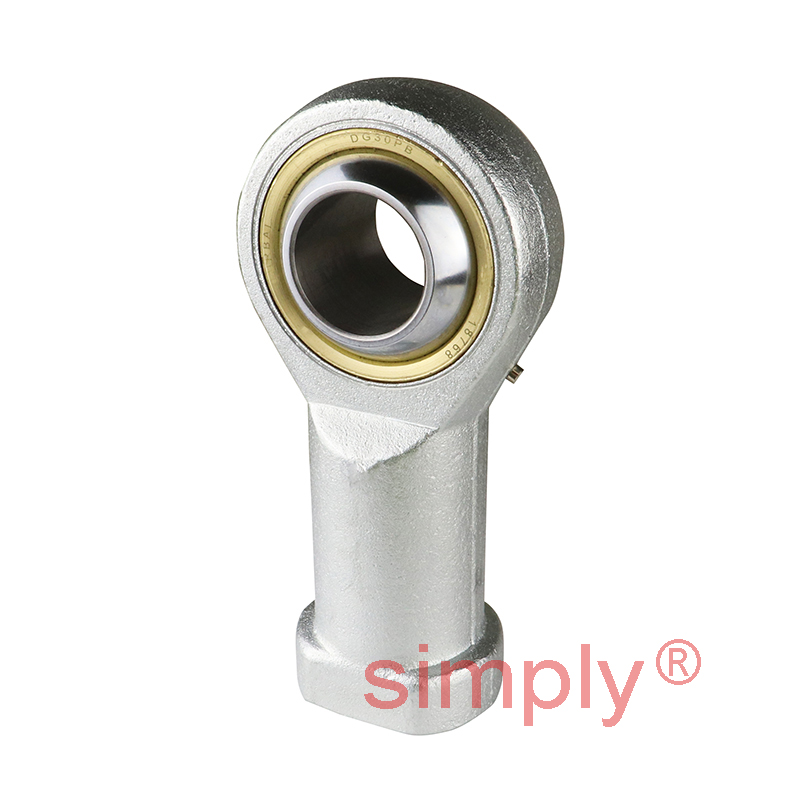

Durbal BEFN30-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M30x2 Thread
- Made in Germany
- Good corrosion resistance
- Extremely high loads resistant
- For use in situations of alternating stresses or impact loads
Equivalent to: GIKR30PB SIKAC30M
£107.56
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £95.73 each |
| 19+ | £90.35 each |
| 29+ | £89.27 each |
| 39+ | £88.20 each |
| 49+ | £87.12 each |
| 74+ | £86.05 each |
| 99+ | £80.67 each |
In Stock
| Thread Direction | = | -501 (Right)d |
| G (Thread) | = | M30x2mm |
| B | = | 37mm |
| C1 | = | 25mm |
| h1 | = | 110mm |
| d1 | = | 34.8mm |
| d2 | = | 70mm |
| d3 | = | 40mm |
| d4 | = | 50mm |
| dk | = | 50.75mm |
| l3 | = | 51mm |
| l4 | = | 145mm |
| l5 | = | 15mm |
| l7 | = | 35mm |
| W | = | 41mm |
| tilt angle α | = | 15 deg |
| weight | = | 1.1kg |
| basic load rating dyn C | = | 36 kN |
| basic load rating stat Co | = | 90 kN |
| radial clearance CN | = | 60-120 µm |
