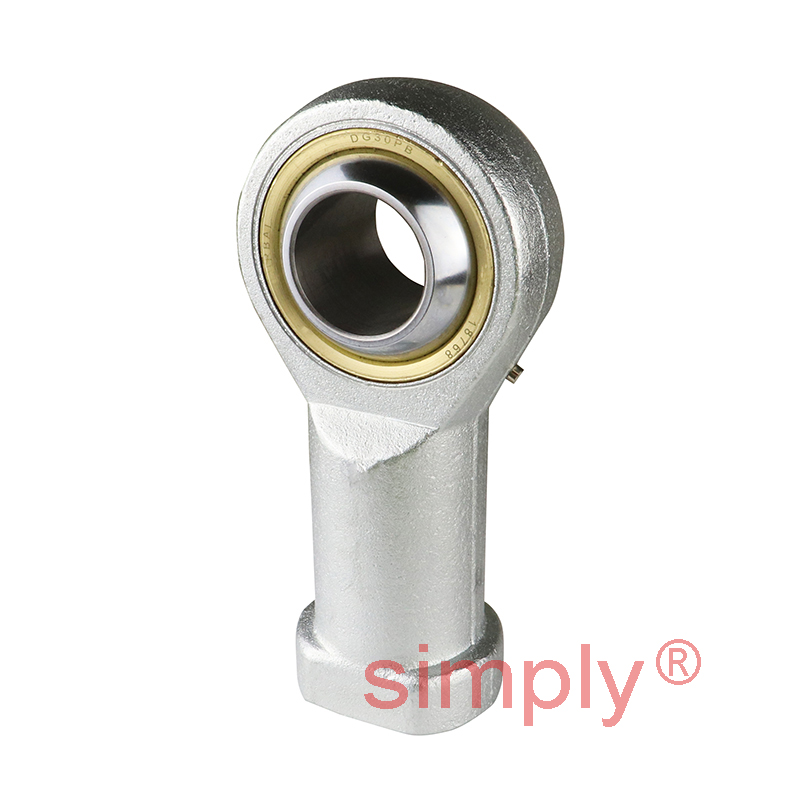

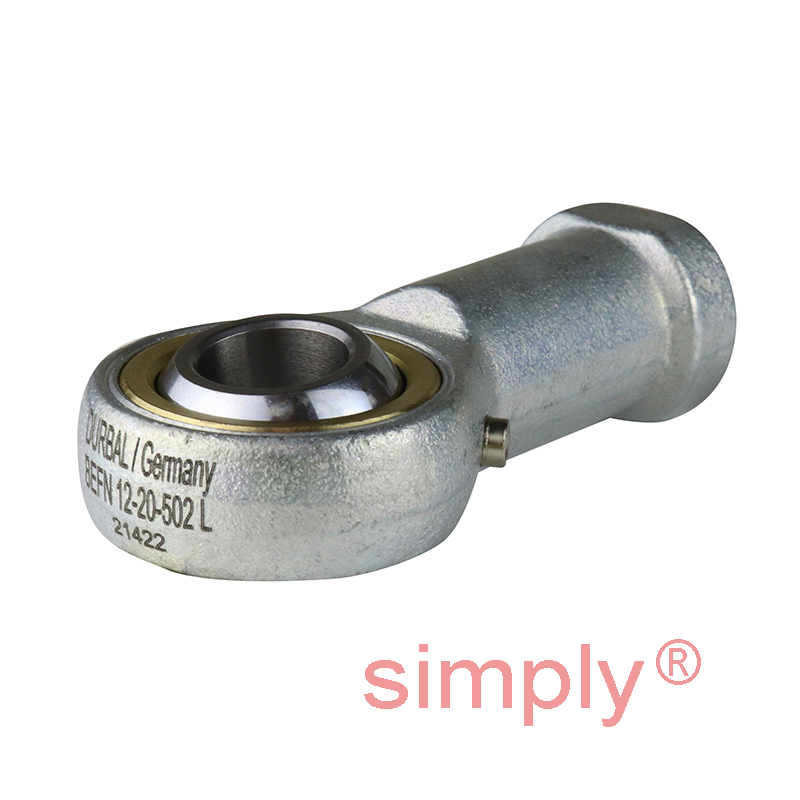

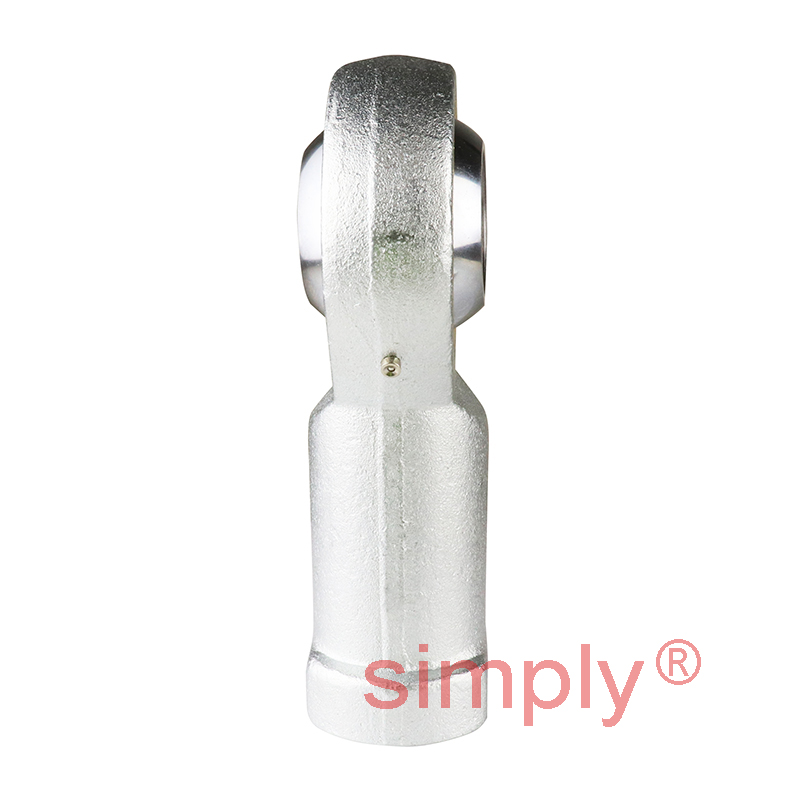

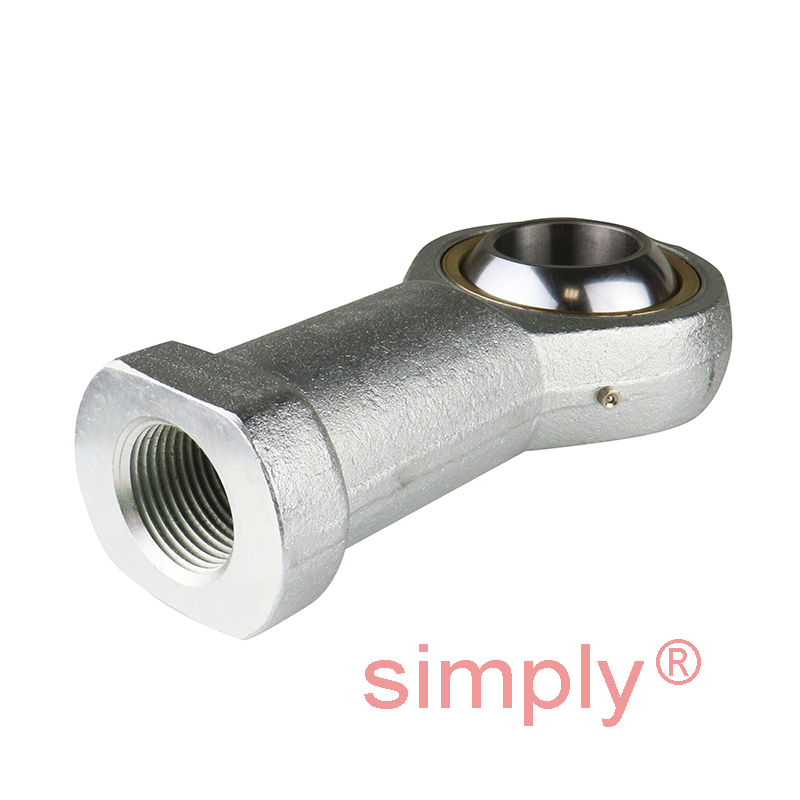

Durbal BEFN12-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M12 Thread
- Made in Germany
- Good corrosion resistance
- Extremely high loads resistant
- For use in situations of alternating stresses or impact loads
£27.85
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £24.78 each |
| 19+ | £23.39 each |
| 29+ | £23.11 each |
| 39+ | £22.83 each |
| 49+ | £22.56 each |
| 74+ | £22.28 each |
| 99+ | £20.88 each |
In Stock
| Thread Direction | = | -502 (Left)d |
| G (Thread) | = | M12mm |
| B | = | 16mm |
| C1 | = | 12mm |
| h1 | = | 50mm |
| d1 | = | 15.4mm |
| d2 | = | 32mm |
| d3 | = | 17.5mm |
| d4 | = | 22mm |
| dk | = | 22.17mm |
| l3 | = | 22mm |
| l4 | = | 66mm |
| l5 | = | 6.5mm |
| l7 | = | 16mm |
| W | = | 19mm |
| tilt angle α | = | 13 deg |
| weight | = | 0.1kg |
| basic load rating dyn C | = | 7 kN |
| basic load rating stat Co | = | 17.5 kN |
| radial clearance CN | = | 40-90 µm |
