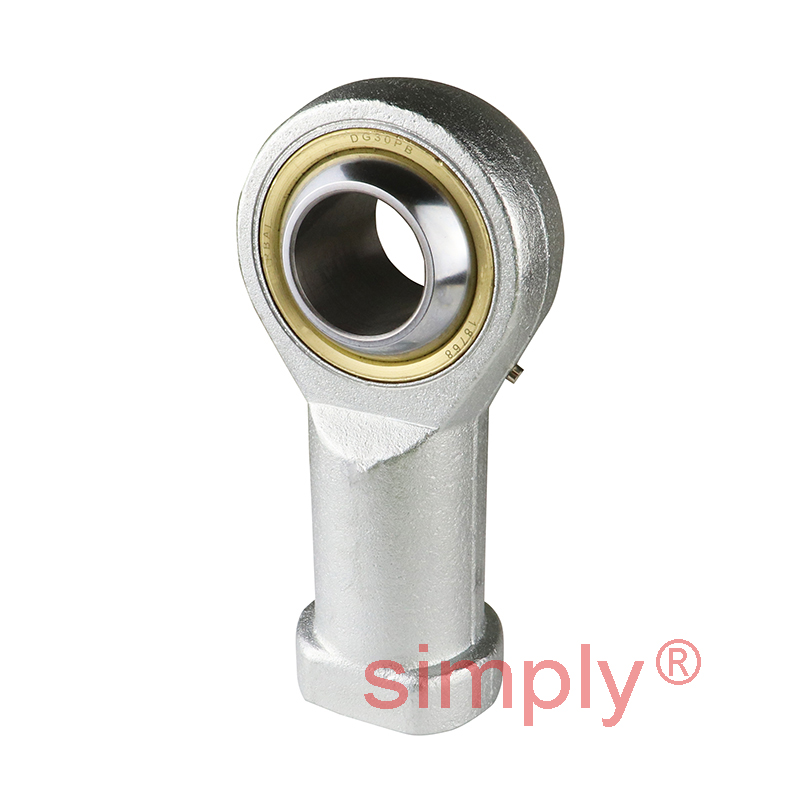

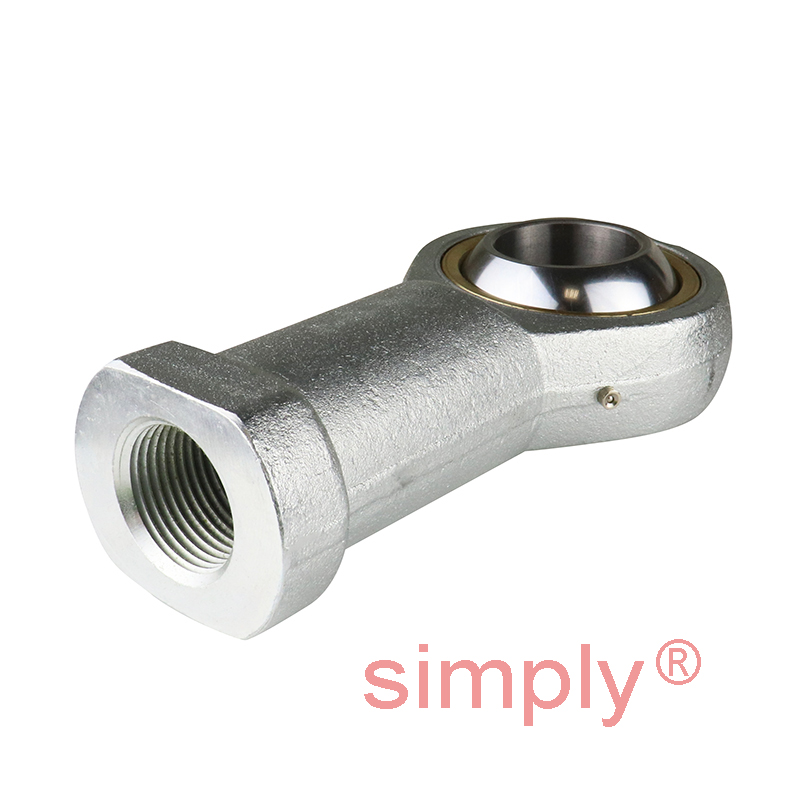

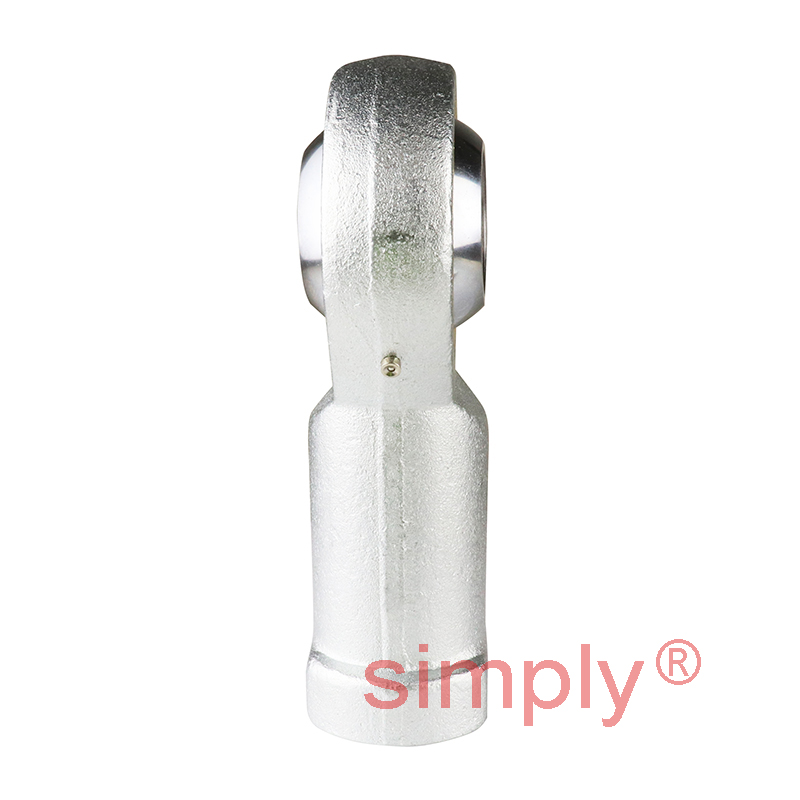

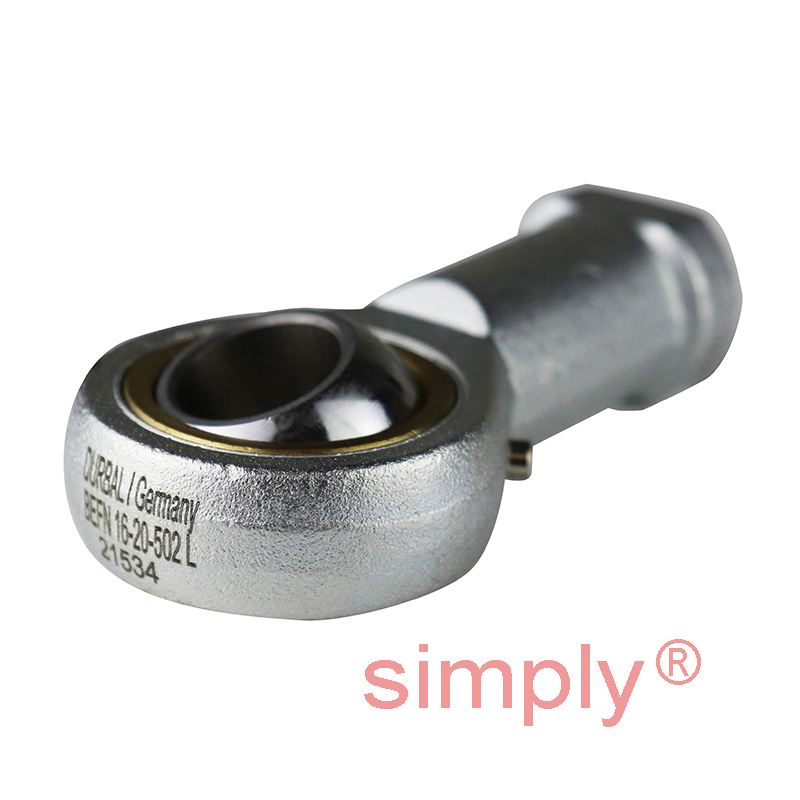

Durbal BEFN16-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M16 Thread
- Made in Germany
- Good corrosion resistance
- Extremely high loads resistant
- For use in situations of alternating stresses or impact loads
£41.70
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £37.11 each |
| 19+ | £35.03 each |
| 29+ | £34.61 each |
| 39+ | £34.19 each |
| 49+ | £33.78 each |
| 74+ | £33.36 each |
| 99+ | £31.28 each |
In Stock
| Thread Direction | = | -502 (Left)d |
| G (Thread) | = | M16mm |
| B | = | 21mm |
| C1 | = | 15mm |
| h1 | = | 64mm |
| d1 | = | 19.3mm |
| d2 | = | 42mm |
| d3 | = | 22mm |
| d4 | = | 27mm |
| dk | = | 28.52mm |
| l3 | = | 28mm |
| l4 | = | 85mm |
| l5 | = | 8mm |
| l7 | = | 22mm |
| W | = | 22mm |
| tilt angle α | = | 15 deg |
| weight | = | 0.22kg |
| basic load rating dyn C | = | 11.4 kN |
| basic load rating stat Co | = | 28.5 kN |
| radial clearance CN | = | 50-110 µm |
