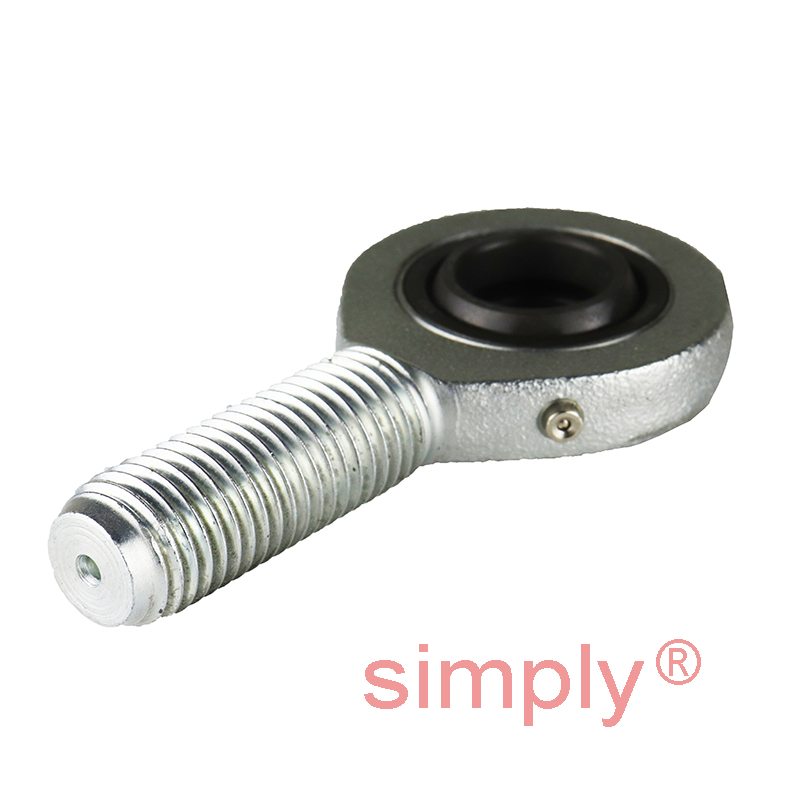

Durbal EMN15-20-501 Maintenance Required Right Hand Metric Steel Male Rod End M14 Thread
- Made in Germany
- Good corrosion resistance
- Extremely high loads resistant
- For use in situations of alternating stresses or impact loads
Equivalent to: GAR15DO SA15ES
£32.56
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £28.98 each |
| 19+ | £27.35 each |
| 29+ | £27.02 each |
| 39+ | £26.70 each |
| 49+ | £26.37 each |
| 74+ | £26.05 each |
| 99+ | £24.42 each |
| 199+ | £24.09 each |
| 249+ | £23.77 each |
| 499+ | £23.44 each |
| 999+ | £22.79 each |
In Stock
| Thread Direction | = | -501 (Right) |
| d | = | 15mm |
| G (Thread) | = | M14mm |
| B | = | 12mm |
| C1 | = | 9mm |
| h | = | 63mm |
| d1 | = | 18mm |
| d2 | = | 38mm |
| dk | = | 22mm |
| l1 | = | 36mm |
| l2 | = | 82mm |
| l7 | = | 18mm |
| tilt angle α | = | 8 deg |
| weight | = | 0.14kg |
| basic load rating dyn C | = | 13.4 kN |
| basic load rating stat Co | = | 36 kN |
| radial clearance CN | = | 40-82 µm |
