Average Rating (2 Reviews)

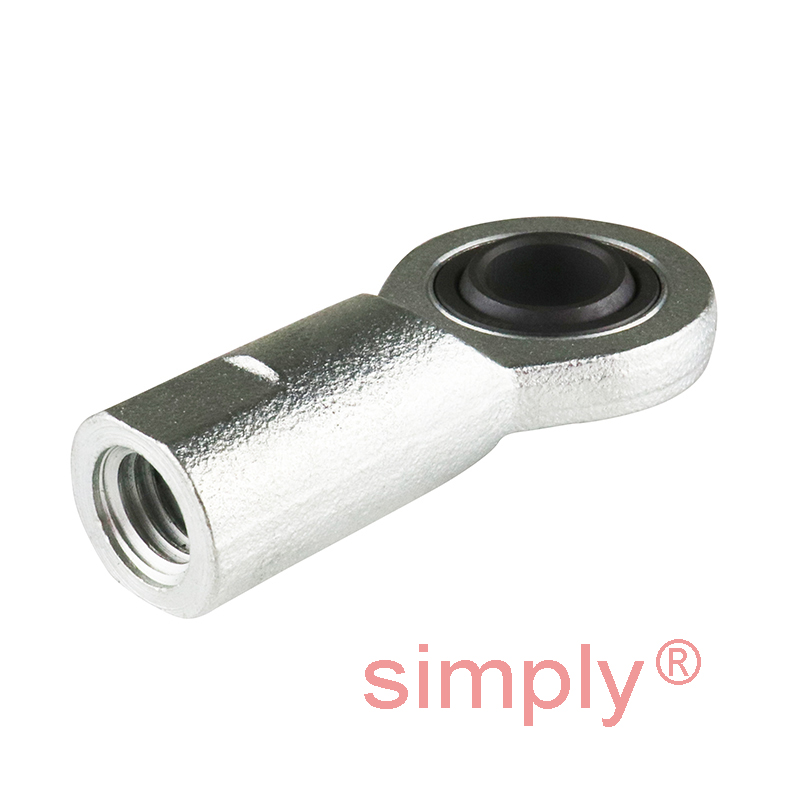

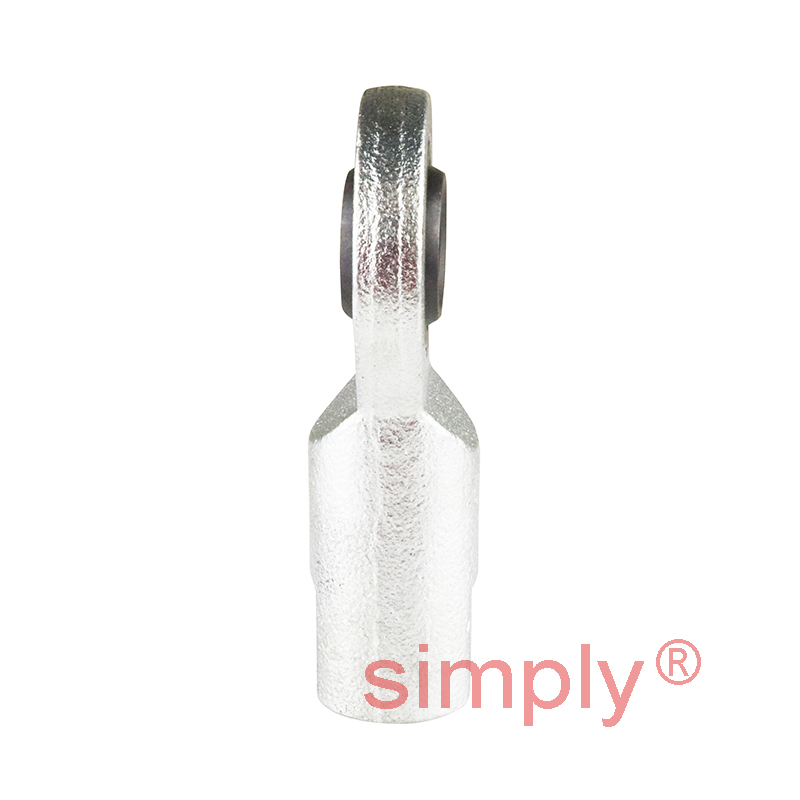

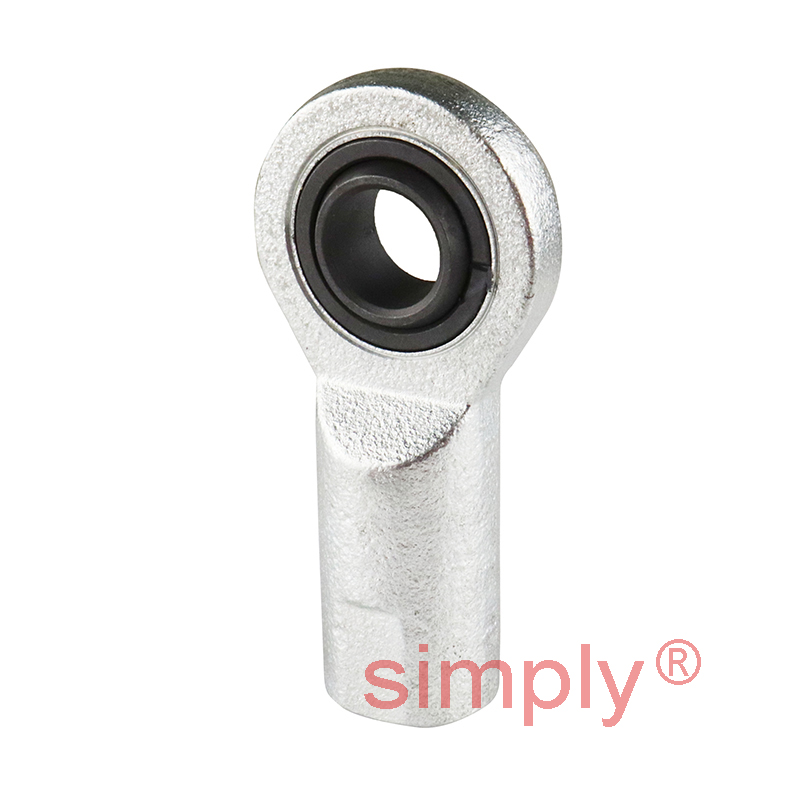

Durbal EFN20-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M20x1.5 Thread
- Made in Germany
- Good corrosion resistance
- Extremely high loads resistant
- For use in situations of alternating stresses or impact loads
Equivalent to: GIR20DO SI20ES
£37.73
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £33.58 each |
| 19+ | £31.69 each |
| 29+ | £31.32 each |
| 39+ | £30.94 each |
| 49+ | £30.56 each |
| 74+ | £30.18 each |
| 99+ | £28.30 each |
In Stock
| Thread Direction | = | -501 (Right) |
| d | = | 20mm |
| G (Thread) | = | M20x1.5mm |
| B | = | 16mm |
| C1 | = | 12mm |
| h1 | = | 77mm |
| d1 | = | 24mm |
| d2 | = | 51mm |
| d3 | = | 28mm |
| dk | = | 29mm |
| l3 | = | 33mm |
| l4 | = | 102.5mm |
| l5 | = | 17.5mm |
| l7 | = | 23mm |
| W | = | 24mm |
| tilt angle α | = | 9 deg |
| weight | = | 0.35kg |
| basic load rating dyn C | = | 25.2 kN |
| basic load rating stat Co | = | 60 kN |
| radial clearance CN | = | 40-82 µm |
