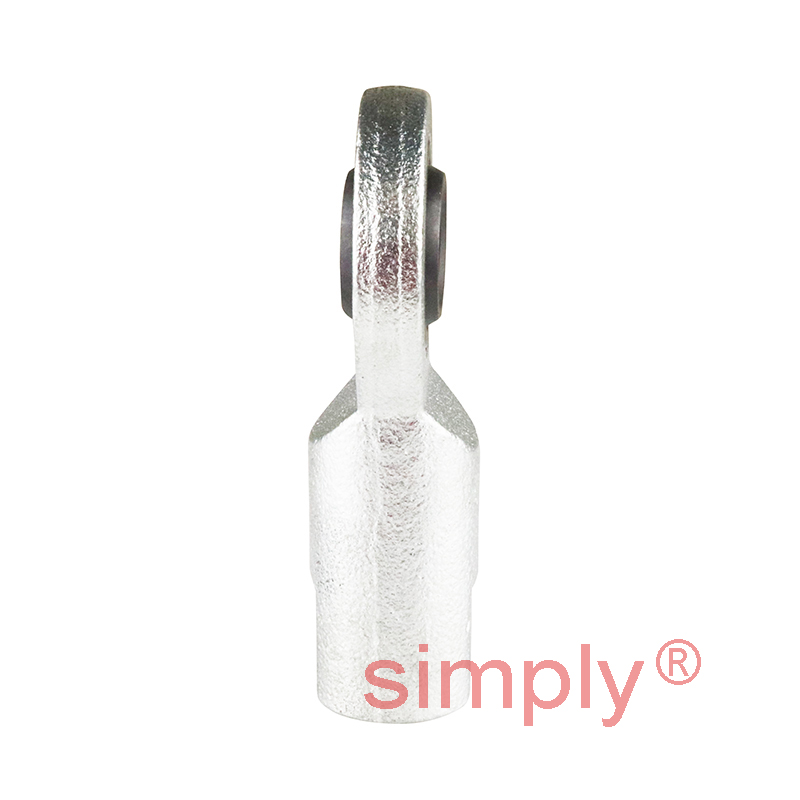

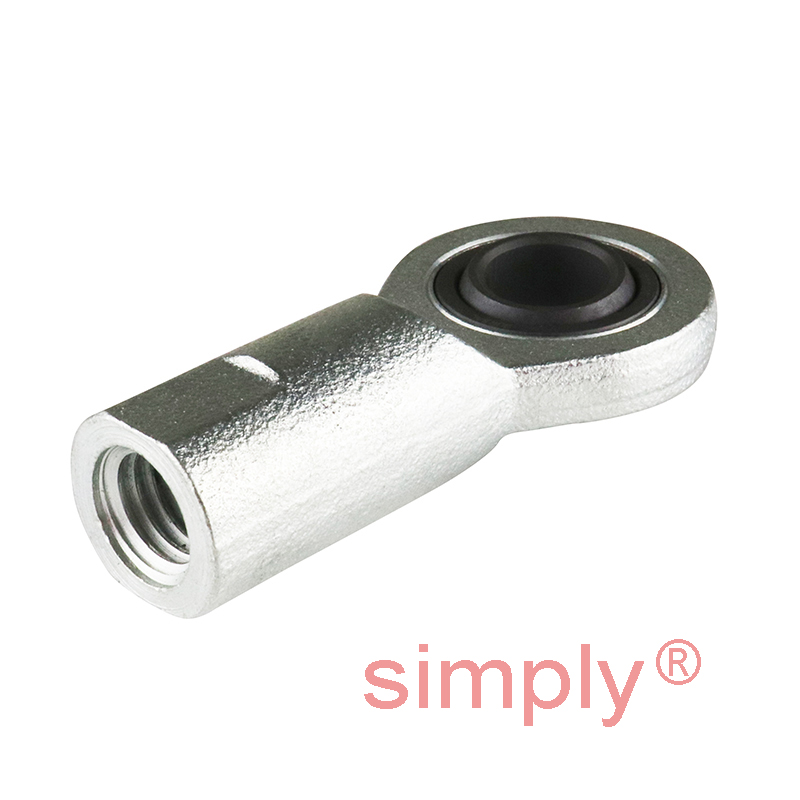

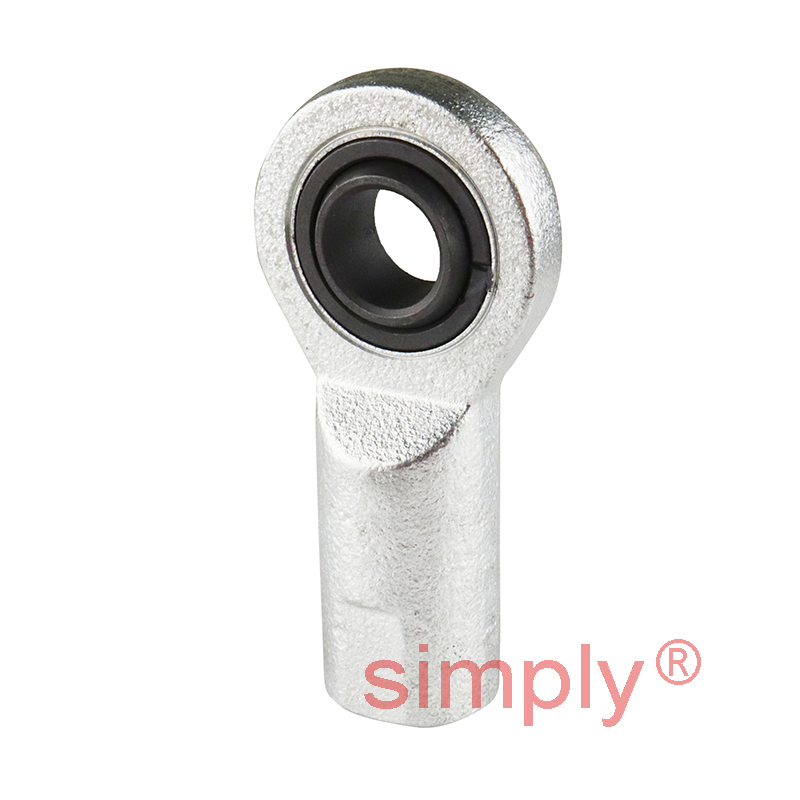

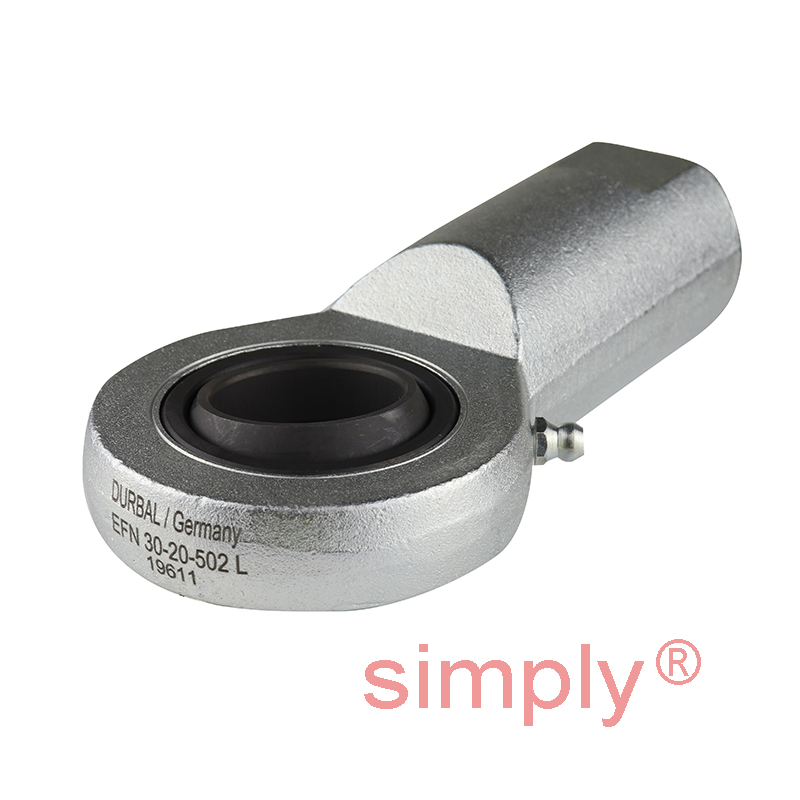

Durbal EFN30-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M30x2 Thread
- Made in Germany
- Good corrosion resistance
- Extremely high loads resistant
- For use in situations of alternating stresses or impact loads
£75.23
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £66.95 each |
| 19+ | £63.19 each |
| 29+ | £62.44 each |
| 39+ | £61.69 each |
| 49+ | £60.94 each |
| 74+ | £60.18 each |
| 99+ | £56.42 each |
In Stock
| Thread Direction | = | -502 (Left) |
| d | = | 30mm |
| G (Thread) | = | M30x2mm |
| B | = | 22mm |
| C1 | = | 18mm |
| h1 | = | 110mm |
| d1 | = | 34mm |
| d2 | = | 70mm |
| d3 | = | 42mm |
| dk | = | 40.7mm |
| l3 | = | 51mm |
| l4 | = | 145mm |
| l5 | = | 19.5mm |
| l7 | = | 32mm |
| W | = | 36mm |
| tilt angle α | = | 6 deg |
| weight | = | 0.93kg |
| basic load rating dyn C | = | 54 kN |
| basic load rating stat Co | = | 110 kN |
| radial clearance CN | = | 30-100 µm |
