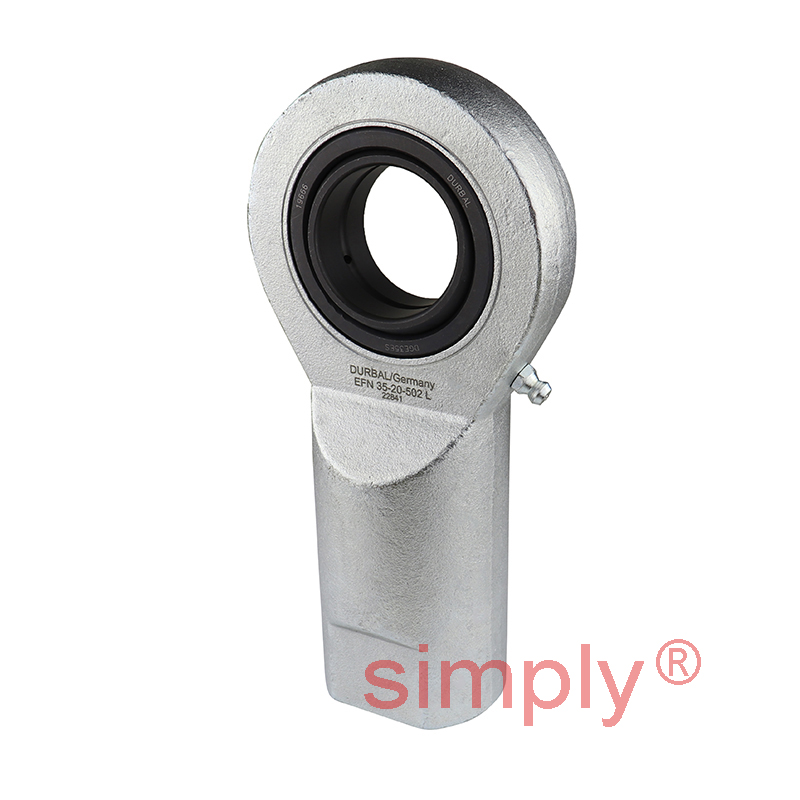

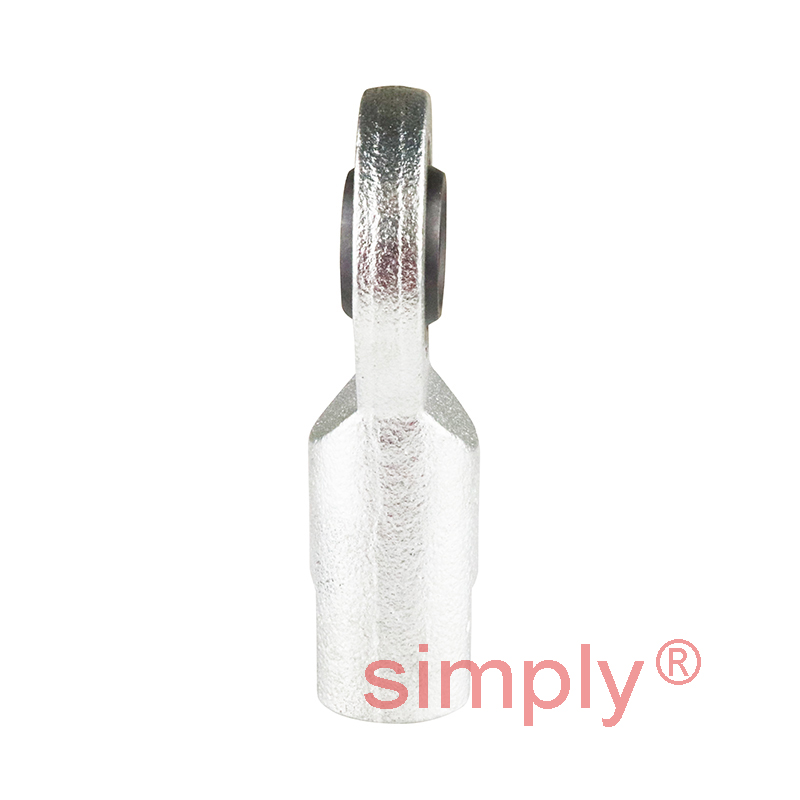

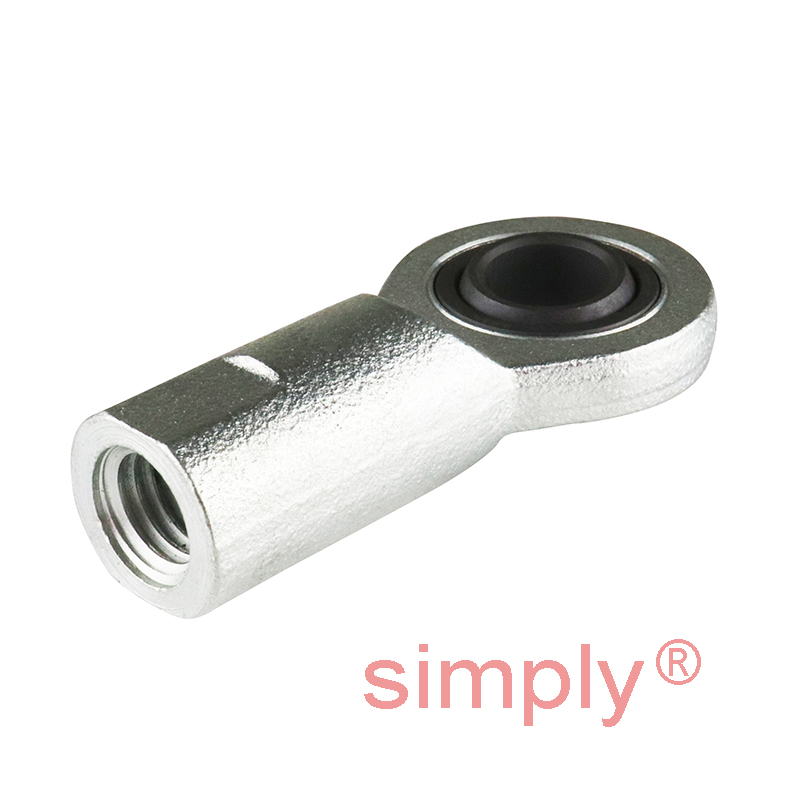

Durbal EFN35-20-502 Maintenance Required Left Hand Metric Steel Female Rod End M36x3 Thread
- Made in Germany
- Good corrosion resistance
- Extremely high loads resistant
- For use in situations of alternating stresses or impact loads
£122.45
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £108.98 each |
| 19+ | £102.86 each |
| 29+ | £101.63 each |
| 39+ | £100.41 each |
| 49+ | £99.18 each |
| 74+ | £97.96 each |
| 99+ | £91.84 each |
In Stock
| Thread Direction | = | -502 (Left) |
| d | = | 35mm |
| G (Thread) | = | M36x3mm |
| B | = | 25mm |
| C1 | = | 20mm |
| h1 | = | 125mm |
| d1 | = | 39mm |
| d2 | = | 82mm |
| d3 | = | 51mm |
| dk | = | 47mm |
| l3 | = | 61mm |
| l4 | = | 166mm |
| l5 | = | 24.5mm |
| l7 | = | 38mm |
| W | = | 41mm |
| tilt angle α | = | 6 deg |
| weight | = | 1.3kg |
| basic load rating dyn C | = | 70.4 kN |
| basic load rating stat Co | = | 146 kN |
| radial clearance CN | = | 30-100 µm |
