Durbal DGE65SW Maintenance Free Steel / PTFE Lined Angular Contact Spherical Plain Bearing 65x100x22mm

Page Feedback?

Suited to alternating dynamic loads
Maintenance free
Extreme low and high temperature rating

Equivalent to: GE65SW GAC65F

Durbal DGE65SW Maintenance Free Steel / PTFE Lined Angular Contact Spherical Plain Bearing 65x100x22mm

SKU: DGE65SW-DURB

Limited Availability
Please Enquire

DURBAL Angular Contact Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished and chromium-plated steel joint ball with a heat-treated single split outer ring bonded with PTFE-fabric. Use for taking up axial loads in addition to the radial forces. Is also suited to alternating dynamic loads. The preferred choice for the transfer of high loads with low movements. Sliding combination: steel with bonded PTFE fabric. Temperature range: -40 deg C to +200 deg C.

Brand / Quality: Durbal - High Quality
Inside Diameter: 65mm
Liner Type: PTFE Lined

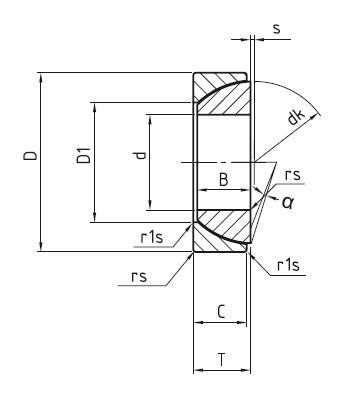

d	=	65mm
dk	=	92mm
D	=	100mm
D1	=	75.6mm
B	=	22mm
C	=	22mm
S	=	5mm
T	=	23mm
rs	=	1.5mm
r1s	=	0.6mm
tilt angle α	=	1.3 deg
weight	=	0.8kg
basic load rating dyn C	=	260 kN
basic load rating stat Co	=	520kN
