Durbal DGEP200FS Maintenance Free Steel / PTFE Lined XXL Large Radial Spherical Plain Bearing 200x290x140mm
- For use at high loads
- Extreme low and high temperature range
- Maintenance free
Equivalent to: GEP200FS
Contact Us for Availability
Limited Availability
Please Enquire

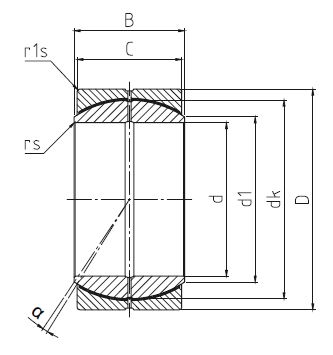

| d | = | 200mm |
| d1 | = | 213.5mm |
| D | = | 290mm |
| dk | = | 260mm |
| B | = | 140mm |
| C | = | 134mm |
| rs | = | 1.1mm |
| r1s | = | 1.1mm |
| tilt angle α | = | 2 deg |
| weight | = | 33.5kg |
| basic load rating dyn C | = | 2683 kN |
| basic load rating stat Co | = | 3689 kN |
| CN | = | 110-214 µm |
