Durbal DGE80LO Maintenance Required Steel / Steel Spherical Plain Bearing 80x120x80mm
- Suitable as bearings for hydraulic cylinders
- For use with high and alternating loads
- Extreme low and high temperature range
Equivalent to: GE80LO GEG80ES
Contact Us for Availability
Limited Availability
Please Enquire

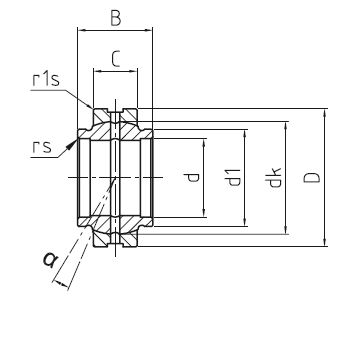

| d | = | 80mm |
| d1 | = | 91mm |
| D | = | 120mm |
| dk | = | 105mm |
| B | = | 80mm |
| C | = | 45mm |
| rs | = | 1mm |
| r1s | = | 1mm |
| tilt angle α | = | 4 deg |
| weight | = | 2.39kg |
| basic load rating dyn C | = | 400 kN |
| basic load rating stat Co | = | 2000 kN |
| CN | = | 72-142 µm |
