Durbal DGE95SX Maintenance Required Steel / Steel Angular Contact Spherical Plain Bearing 95x145x32mm
- Suited for large applications
- Suited to alternating dynamic loads
- Extreme low and high temperature range
Equivalent to: GE95SX
Contact Us for Availability
Limited Availability
Please Enquire

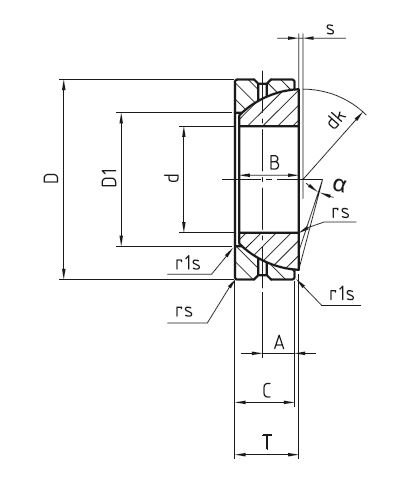

| d | = | 95mm |
| dk | = | 135mm |
| D | = | 145mm |
| D1 | = | 104.4mm |
| A | = | 13.5mm |
| B | = | 32mm |
| C | = | 29.5mm |
| S | = | 10.8mm |
| T | = | 32mm |
| rs | = | 2mm |
| r1s | = | 0.6mm |
| tilt angle α | = | 2.5 deg |
| weight | = | 2.2kg |
| basic load rating dyn C | = | 335 kN |
| basic load rating stat Co | = | 1750 kN |
