Durbal DGE20AX Maintenance Required Steel / Steel Axial Spherical Plain Bearing 20x55x20mm
- Extreme low and high temperature range
Equivalent to: GE20AX
Contact Us for Availability
Limited Availability
Please Enquire

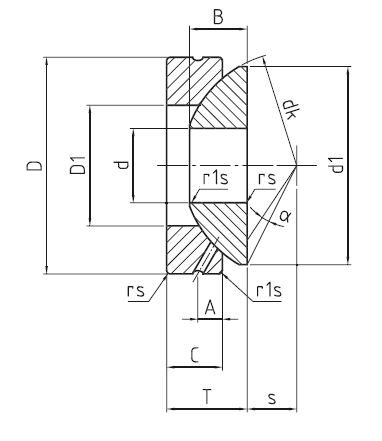

| d1 | = | 50mm |
| d | = | 20mm |
| dk | = | 60mm |
| D | = | 55mm |
| D1 | = | 33.5mm |
| A | = | 7mm |
| B | = | 14.3mm |
| C | = | 13mm |
| S | = | 12.5mm |
| T | = | 20mm |
| rs | = | 1mm |
| r1s | = | 0.3mm |
| tilt angle α | = | 6 deg |
| weight | = | 0.25kg |
| basic load rating dyn C | = | 75 kN |
| basic load rating stat Co | = | 375 kN |
