Durbal DGE670ES-2RS Maintenance Required Steel / Steel XXL Large Radial Spherical Plain Bearing with Seals 670x900x308mm
- For use with high static and alternating loads
- Extreme low and high temperature range
- Seals on both sides to prevent dirt inside beariing
Equivalent to: GE670DO2RS GE670ES2RS
Contact Us for Availability
Limited Availability
Please Enquire

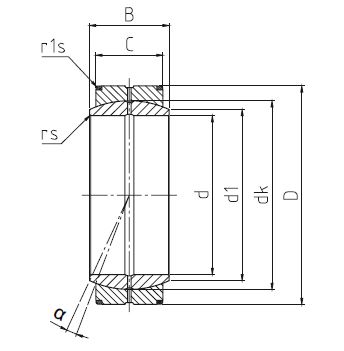

| d | = | 670mm |
| d1 | = | 722mm |
| D | = | 900mm |
| dk | = | 785mm |
| B | = | 308mm |
| C | = | 260mm |
| rs | = | 3mm |
| r1s | = | 6mm |
| tilt angle α | = | 3.7 deg |
| weight | = | 594kg |
| basic load rating dyn C | = | 17349 kN |
| basic load rating stat Co | = | 86743 kN |
| CN | = | 160-320 µm |
