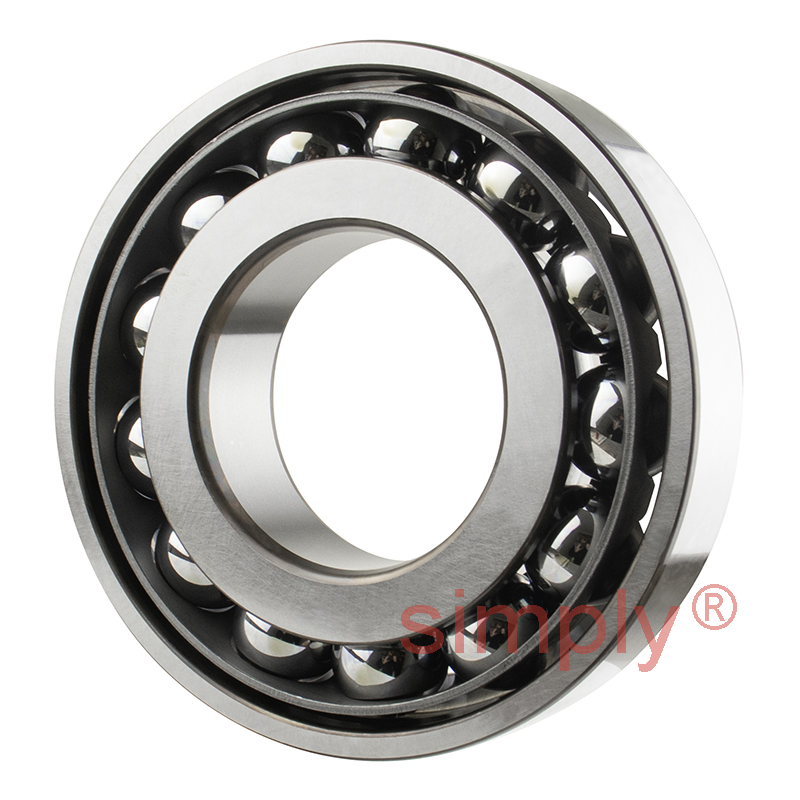

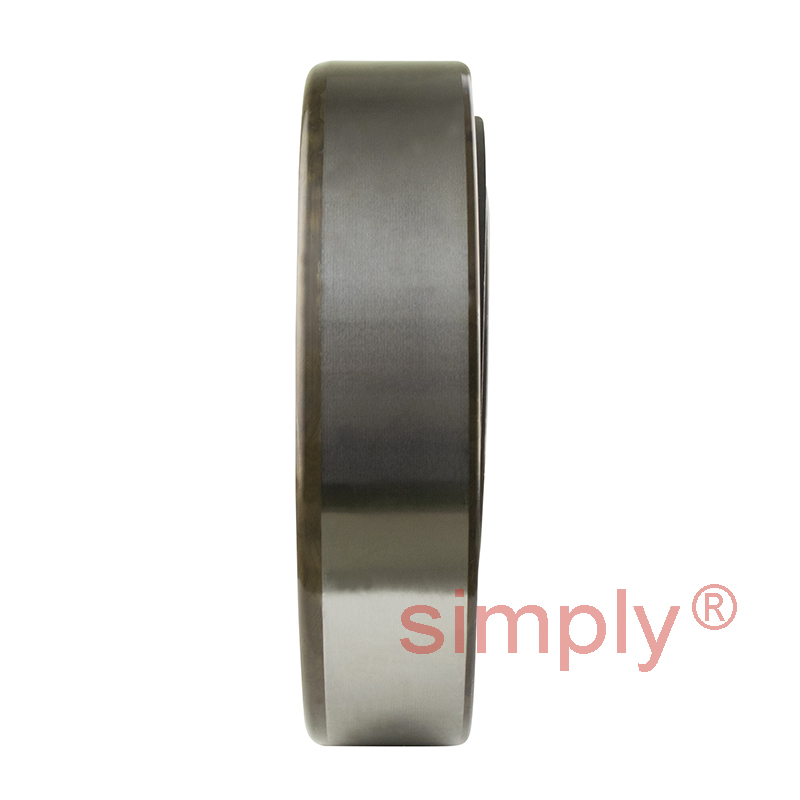

SKF 7315BECBJ Single Row Angular Contact Ball Bearing 75x160x37mm
Equivalent to: 7315BECBJ
£345.03
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 4+ | £307.08 each |
| 8+ | £289.83 each |
| 12+ | £286.38 each |
| 16+ | £282.93 each |
| 25+ | £279.48 each |
| 50+ | £276.03 each |
| 99+ | £258.77 each |
In Stock
| d | = | 75mm |
| D | = | 160mm |
| B | = | 37mm |
| Dynamic load Cr | = | 132 kN |
| Static load Cor | = | 104 kN |
| Fatigue load limit Pu | = | 4.15 kN |
| Reference speed | = | 5300 rpm |
| Limit speed | = | 5300 rpm |
| Weight | = | 3.2 kg |
| d1 | = | 108.25mm |
| d2 | = | 91.13mm |
| D1 | = | 128.9mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 1.1mm |
| a | = | 68mm |
| da min | = | 87mm |
| Da max | = | 148mm |
| Db max | = | 153mm |
| ra max | = | 2mm |
| rb max | = | 1mm |
