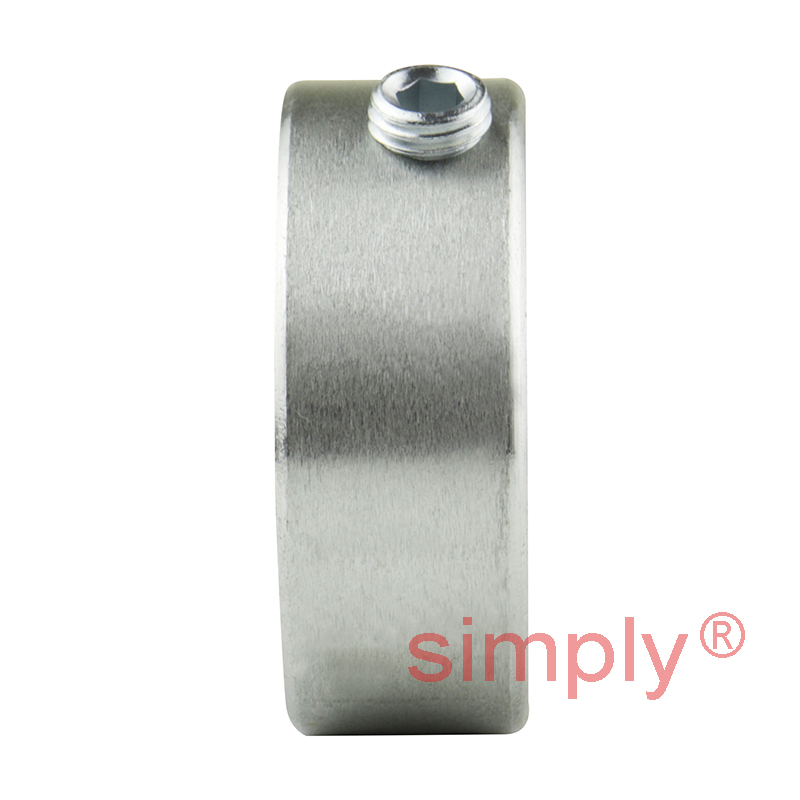

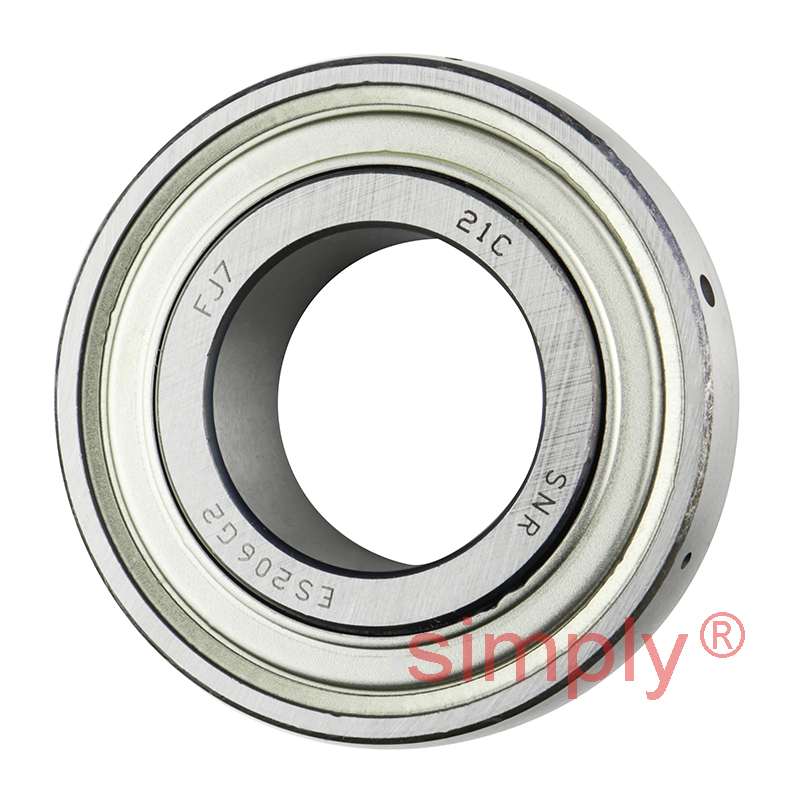

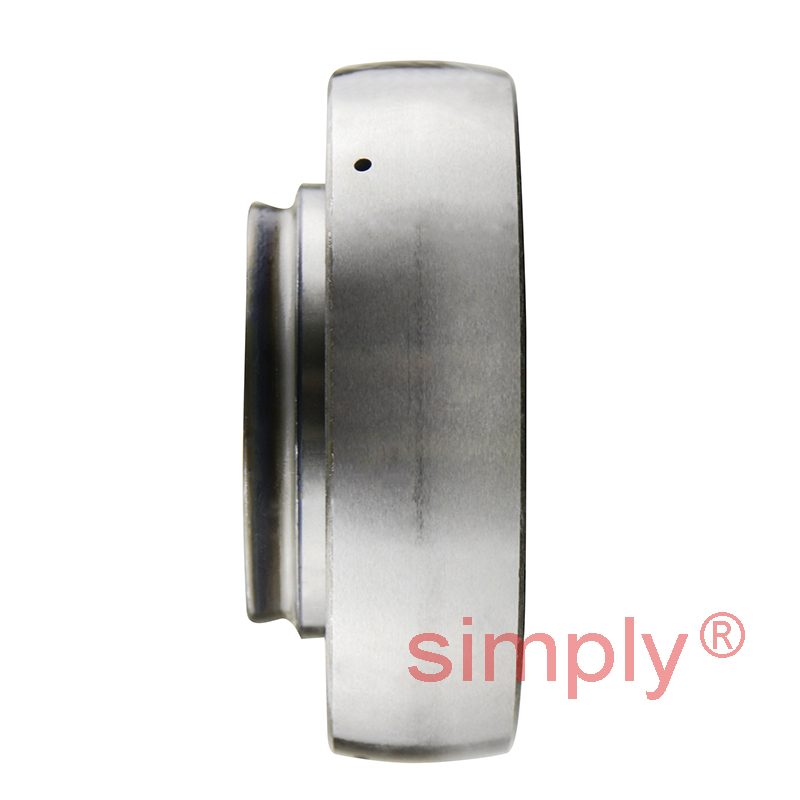

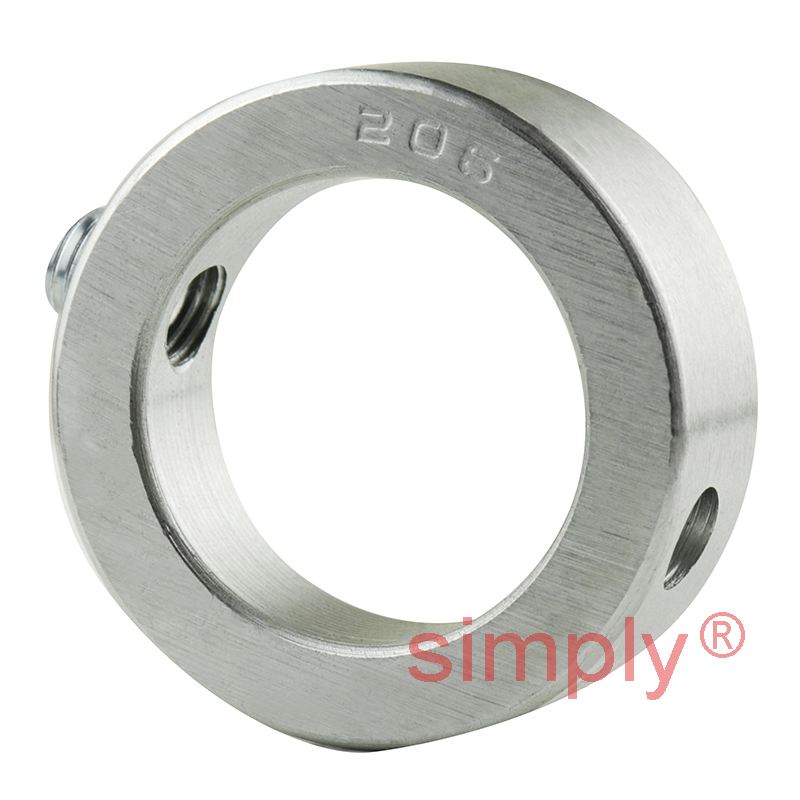

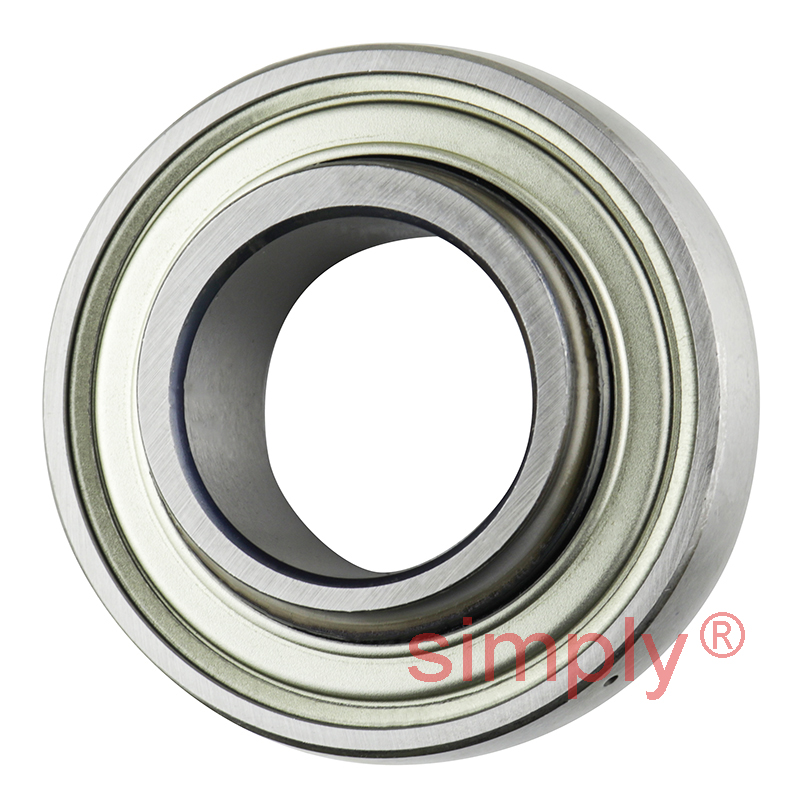

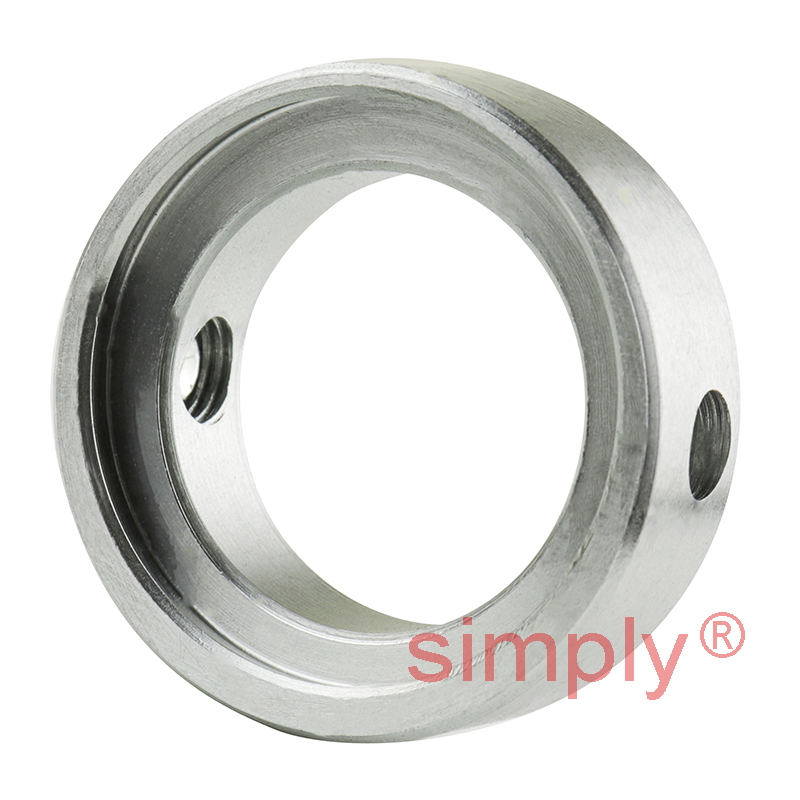

SNR ES206G2 Metric Flatback Spherical Outer Bearing Insert 30mm Bore 62mm Outside Diameter with Eccentric Collar
- Wide range availability
- Interchangeable with other brands
- Quality products for ISO and JIS housing ranges
- G2 inserts are universal which allows for reversed installation
Equivalent to: ES206
£17.67
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £15.73 each |
| 5+ | £14.85 each |
| 9+ | £14.67 each |
| 19+ | £14.49 each |
| 49+ | £14.32 each |
| 74+ | £14.14 each |
| 99+ | £13.26 each |
| 199+ | £13.08 each |
| 249+ | £12.90 each |
| 499+ | £12.73 each |
| 999+ | £12.37 each |
In Stock
| d | = | 30mm |
| D | = | 62mm |
| C | = | 16mm |
| B | = | 23.8mm |
| B1 | = | 35.7mm |
| B2 | = | 15.9mm |
| d1 | = | 44.1mm |
| S | = | 9mm |
| m | = | 6mm |
| C1 | = | 5mm |
| r min | = | 0.6mm |
| G | = | M8x1 |
| Wrench Size | = | 4mm |
| Set screw torque | = | 11.5 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 19.5kN |
| Static load rating C0 | = | 11.2kN |
| Weight | = | 0.3kg |
