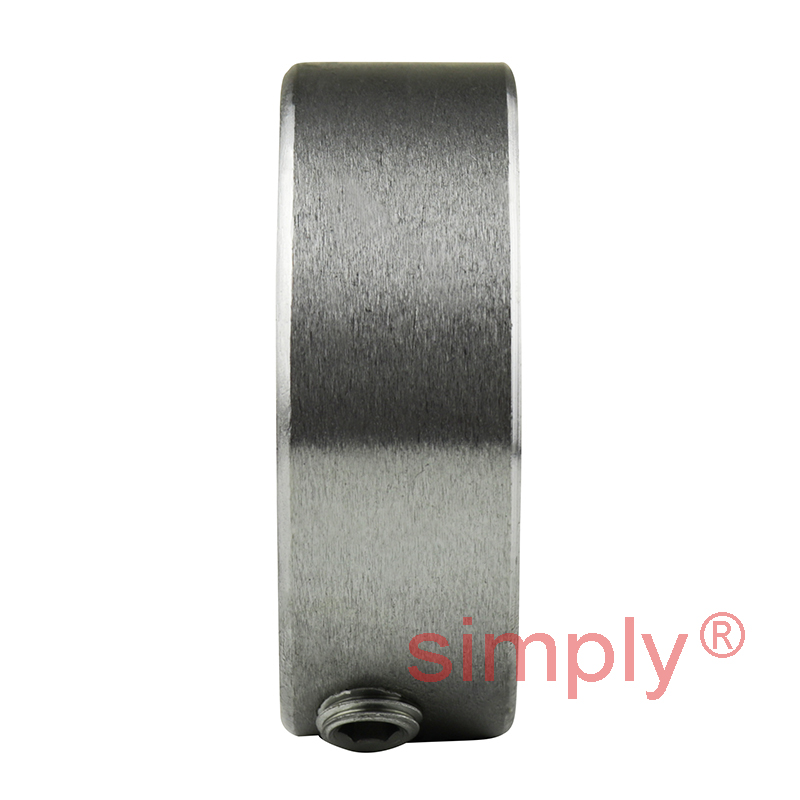

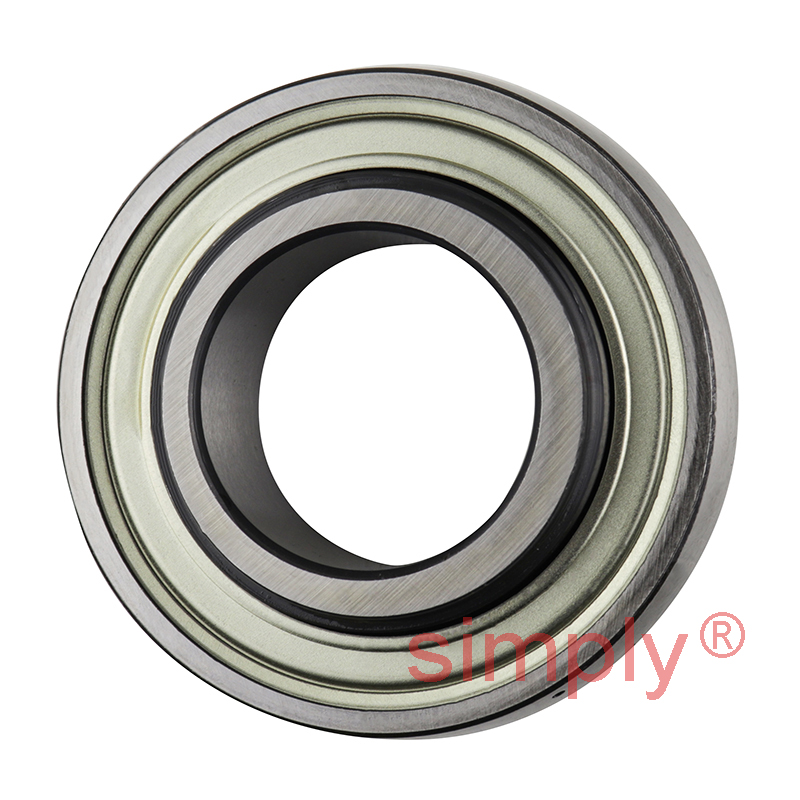

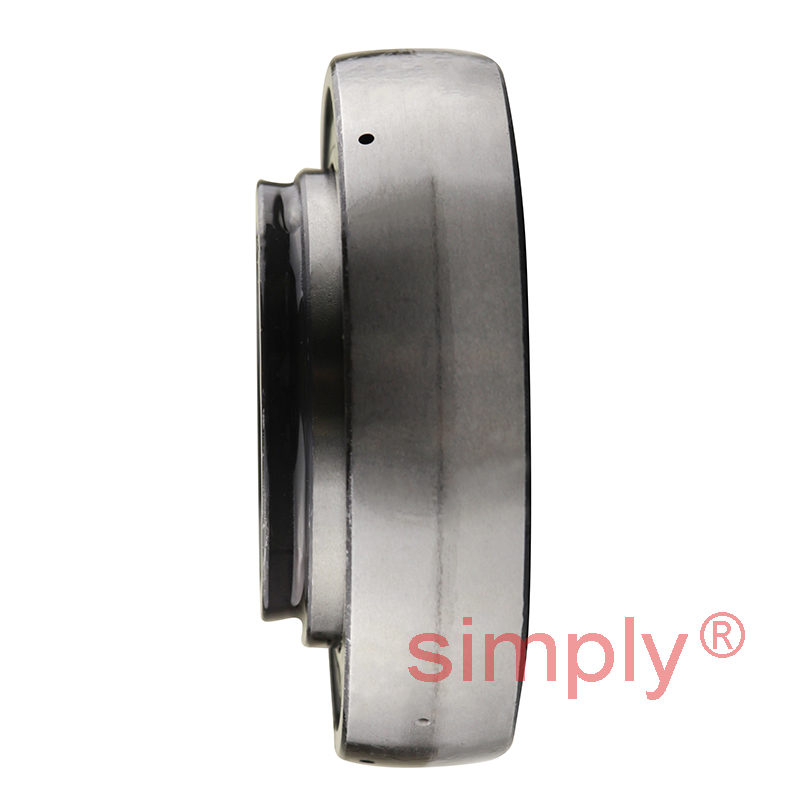

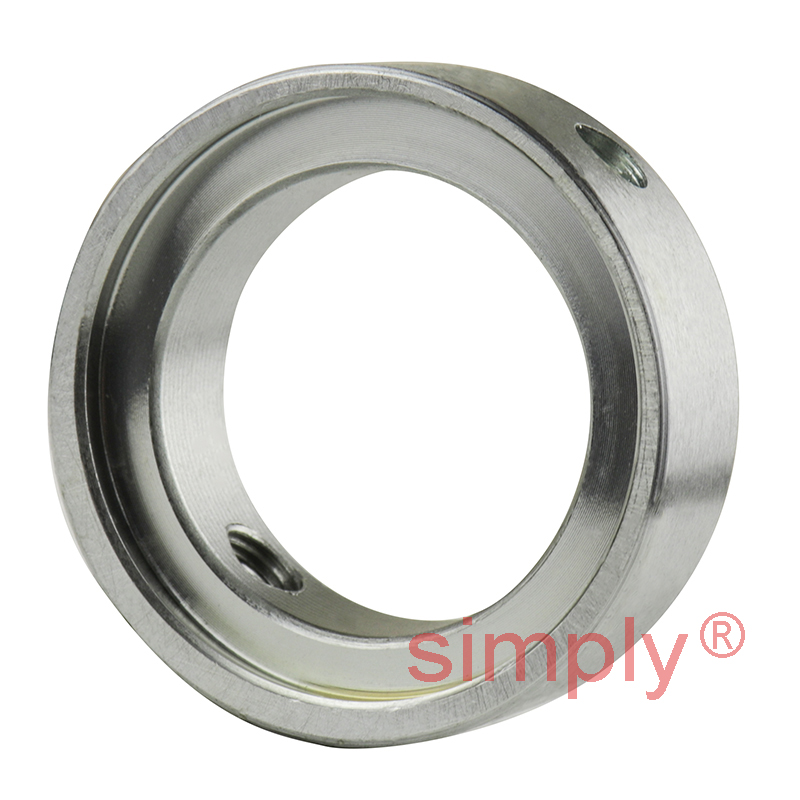

SNR ES207G2 Metric Flatback Spherical Outer Bearing Insert 35mm Bore 72mm Outside Diameter with Eccentric Collar
- Wide range availability
- Interchangeable with other brands
- Quality products for ISO and JIS housing ranges
- G2 inserts are universal which allows for reversed installation
Equivalent to: ES207
£20.20
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £17.98 each |
| 5+ | £16.97 each |
| 9+ | £16.77 each |
| 19+ | £16.56 each |
| 49+ | £16.36 each |
| 74+ | £16.16 each |
| 99+ | £15.15 each |
| 199+ | £14.95 each |
| 249+ | £14.75 each |
| 499+ | £14.54 each |
| 999+ | £14.14 each |
In Stock
| d | = | 35mm |
| D | = | 72mm |
| C | = | 17mm |
| B | = | 25.4mm |
| B1 | = | 38.9mm |
| B2 | = | 17.5mm |
| d1 | = | 51.1mm |
| S | = | 9.5mm |
| m | = | 6.5mm |
| C1 | = | 5.7mm |
| r min | = | 1.1mm |
| G | = | M8x1 |
| Wrench Size | = | 4mm |
| Set screw torque | = | 11.5 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 25.7kN |
| Static load rating C0 | = | 15.2kN |
| Weight | = | 0.5kg |
