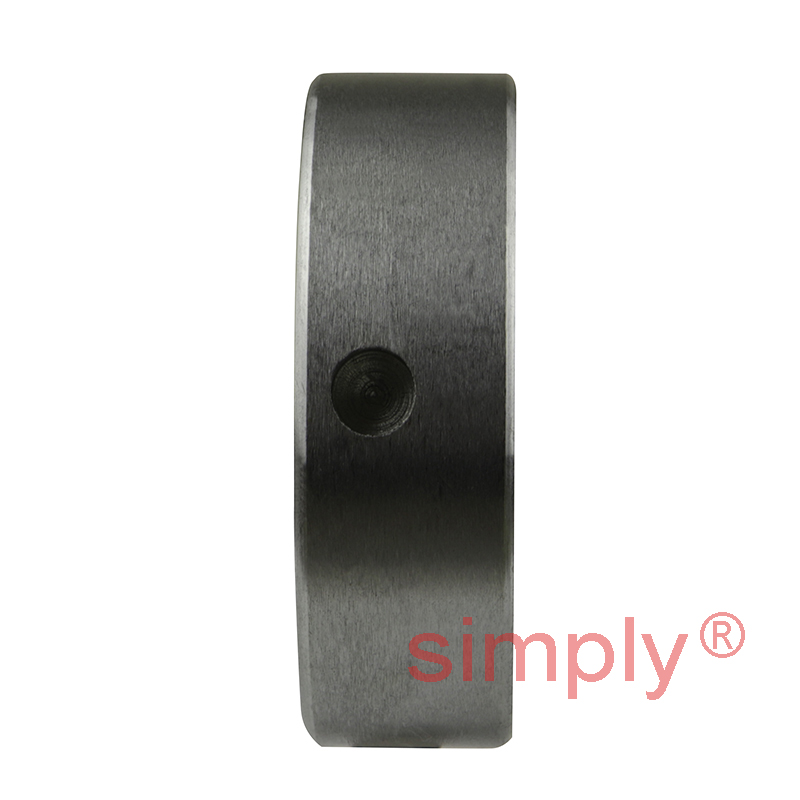

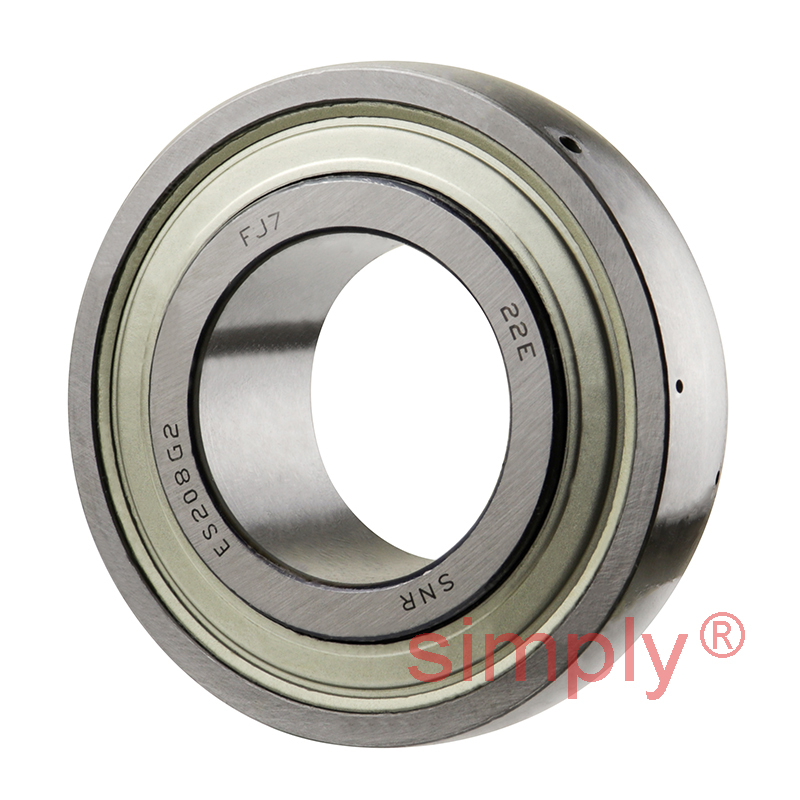

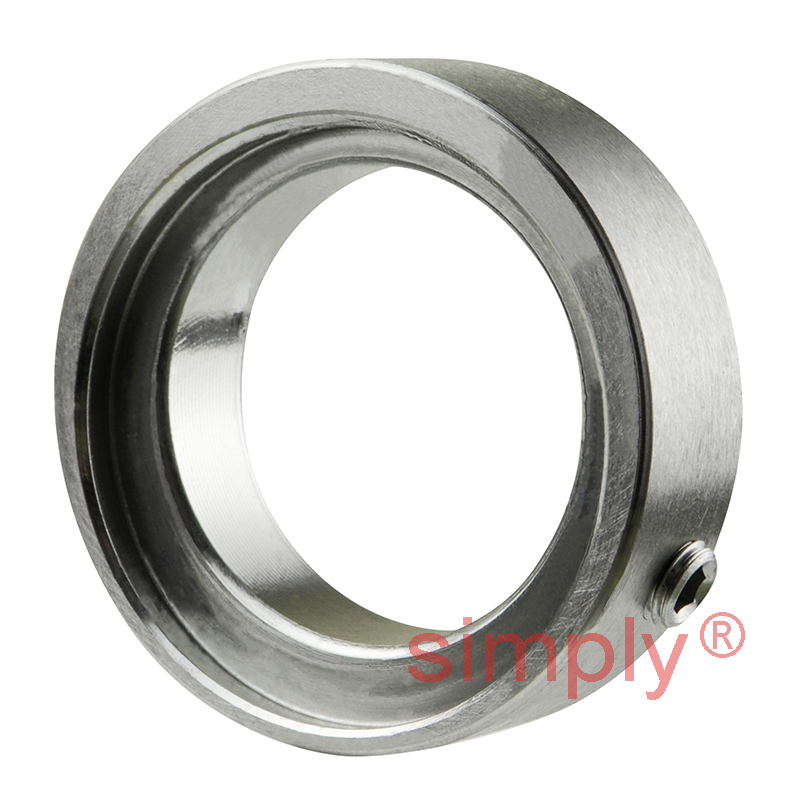

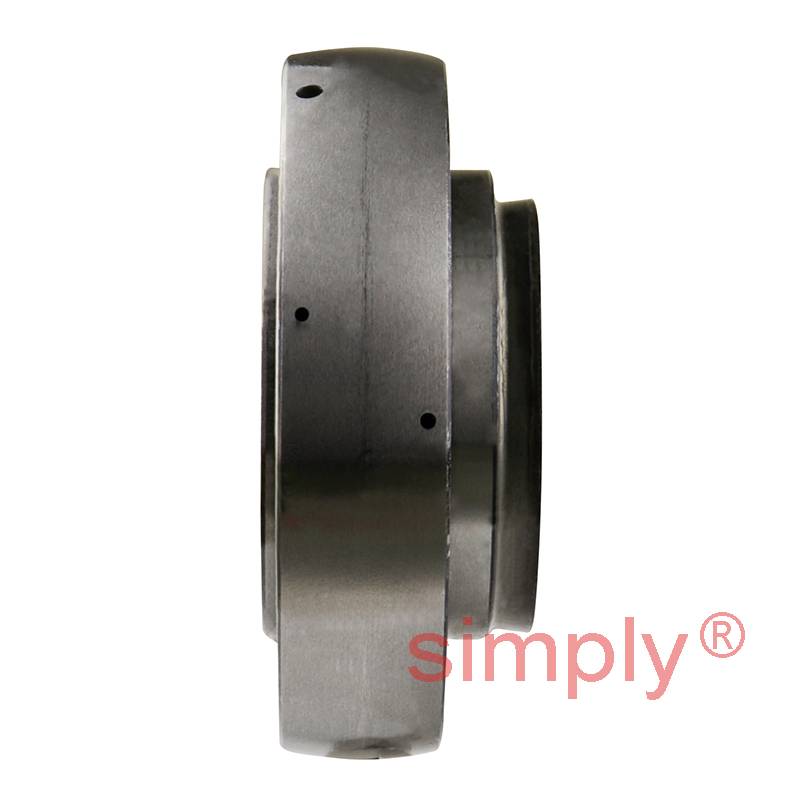

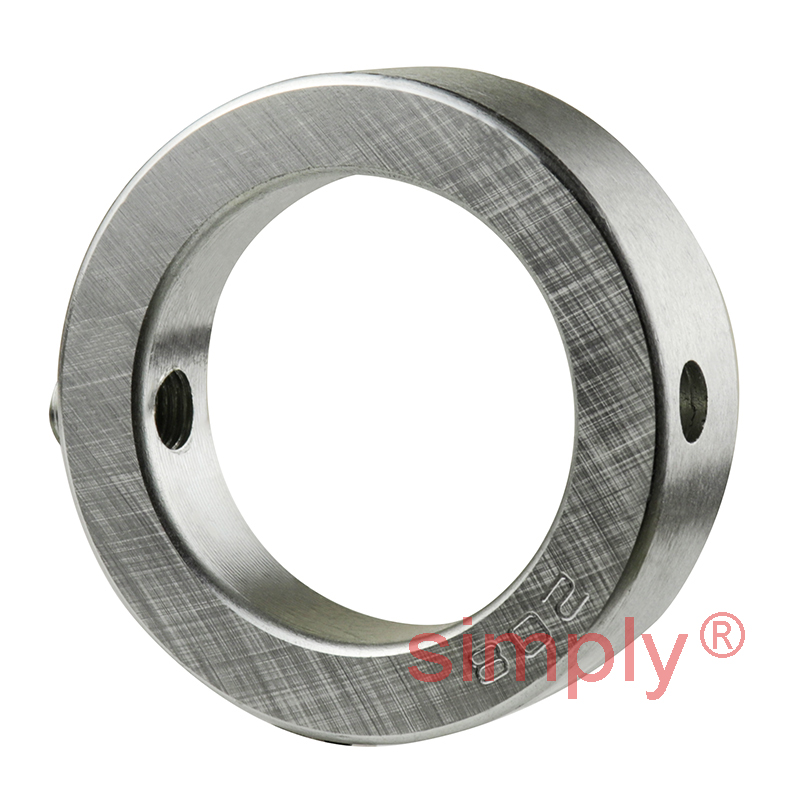

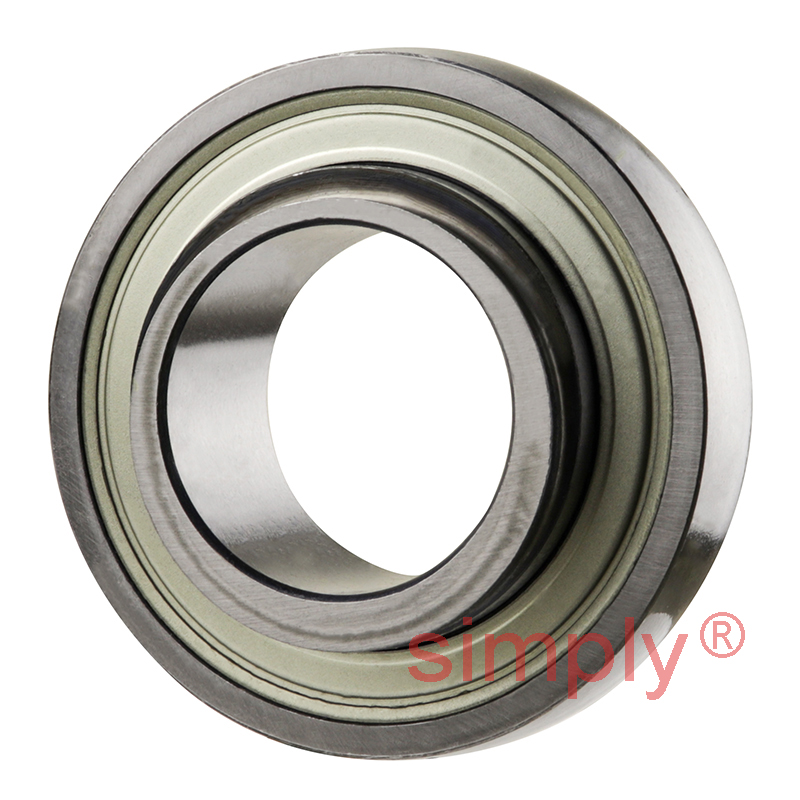

SNR ES208G2 Metric Flatback Spherical Outer Bearing Insert 40mm Bore 80mm Outside Diameter with Eccentric Collar
- Wide range availability
- Interchangeable with other brands
- Quality products for ISO and JIS housing ranges
- G2 inserts are universal which allows for reversed installation
Equivalent to: ES208
£21.96
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £19.54 each |
| 5+ | £18.44 each |
| 9+ | £18.22 each |
| 19+ | £18.00 each |
| 49+ | £17.78 each |
| 74+ | £17.56 each |
| 99+ | £16.47 each |
| 199+ | £16.25 each |
| 249+ | £16.03 each |
| 499+ | £15.81 each |
| 999+ | £15.37 each |
In Stock
| d | = | 40mm |
| D | = | 80mm |
| C | = | 18mm |
| B | = | 30.2mm |
| B1 | = | 43.7mm |
| B2 | = | 18.3mm |
| d1 | = | 58mm |
| S | = | 11mm |
| m | = | 6.5mm |
| C1 | = | 6.2mm |
| r min | = | 1.1mm |
| G | = | M8x1 |
| Wrench Size | = | 4mm |
| Set screw torque | = | 11.5 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 29.6kN |
| Static load rating C0 | = | 18.2kN |
| Weight | = | 0.7kg |
