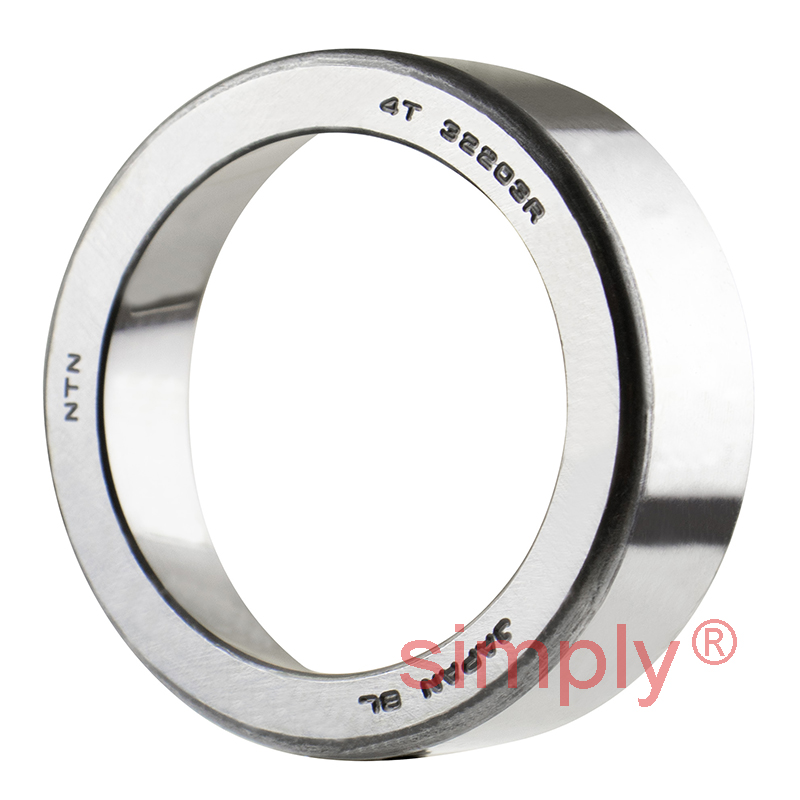

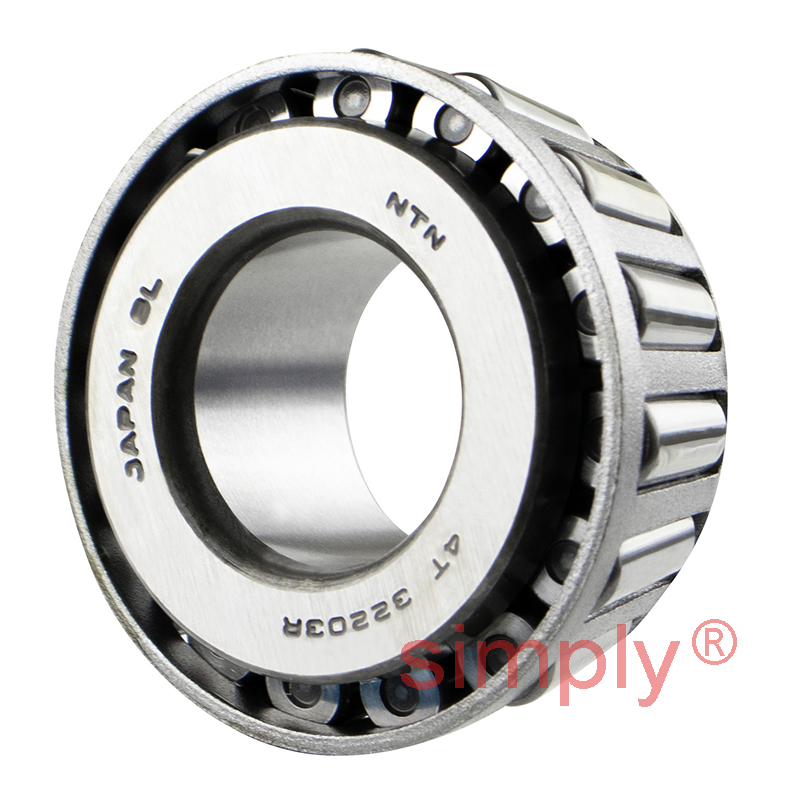

NTN 4T-32203R Tapered Roller Bearing Cup and Cone Set 17x40x17.25mm
- Premium Japanese Manufacturer
- Highest Quality Assured
- Highly Cost Effective
- Huge Stocks Available
- World Renowned Bearing Producer
£12.32
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £10.96 each |
| 5+ | £10.35 each |
| 10+ | £10.22 each |
| 25+ | £10.10 each |
| 49+ | £9.98 each |
| 74+ | £9.85 each |
| 99+ | £9.24 each |
| 199+ | £9.11 each |
| 249+ | £8.99 each |
| 499+ | £8.87 each |
| 999+ | £8.62 each |
In Stock
| Bearing dimensions | ||
| d | = | 17mm |
| D | = | 40mm |
| T | = | 17.25mm |
| B | = | 16mm |
| C | = | 14mm |
| rs min | = | 1mm |
| rls min | = | 1mm |
| Speeds and loads | ||
| Dynamic load Cr | = | 29.1kN |
| Static load Cor | = | 28.2kN |
| Allowable Speed in grease | = | 9900rpm |
| Allowable Speed in oil | = | 13000rpm |
| Abutment dimensions | ||
| da min | = | 22.5mm |
| db max | = | 22mm |
| Da max | = | 34.5mm |
| Da min | = | 31mm |
| Db min | = | 37.5mm |
| Sa min | = | 2mm |
| Sb min | = | 3mm |
| ras max | = | 1mm |
| r1as max | = | 1mm |
| Load center a | = | 11mm |
| Constant e | = | 0.35mm |
| Y2 | = | 1.74mm |
| Y0 | = | 0.96mm |
| Weight | = | 0.105kg |
