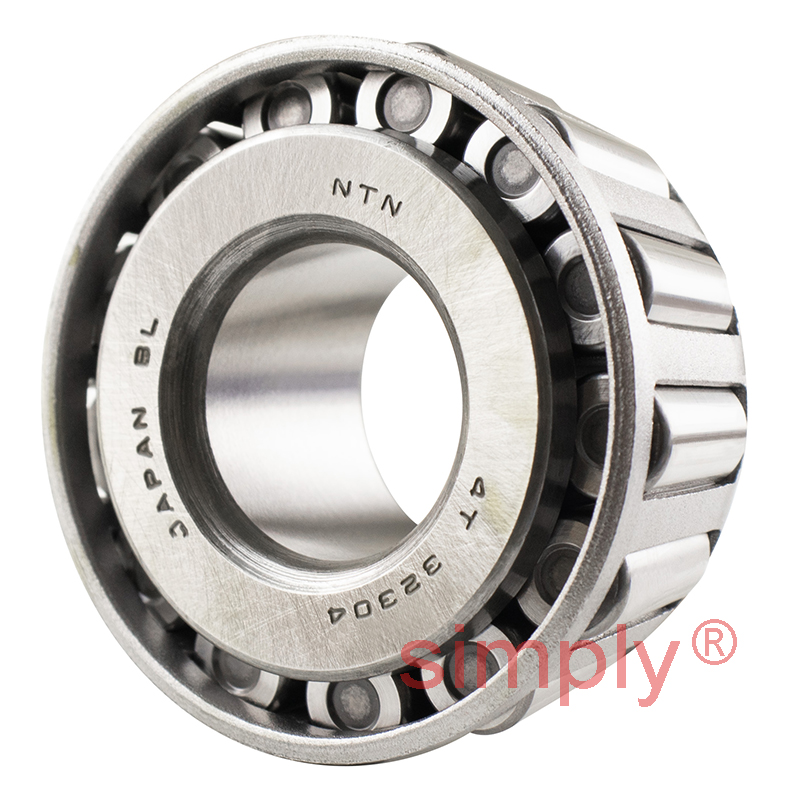

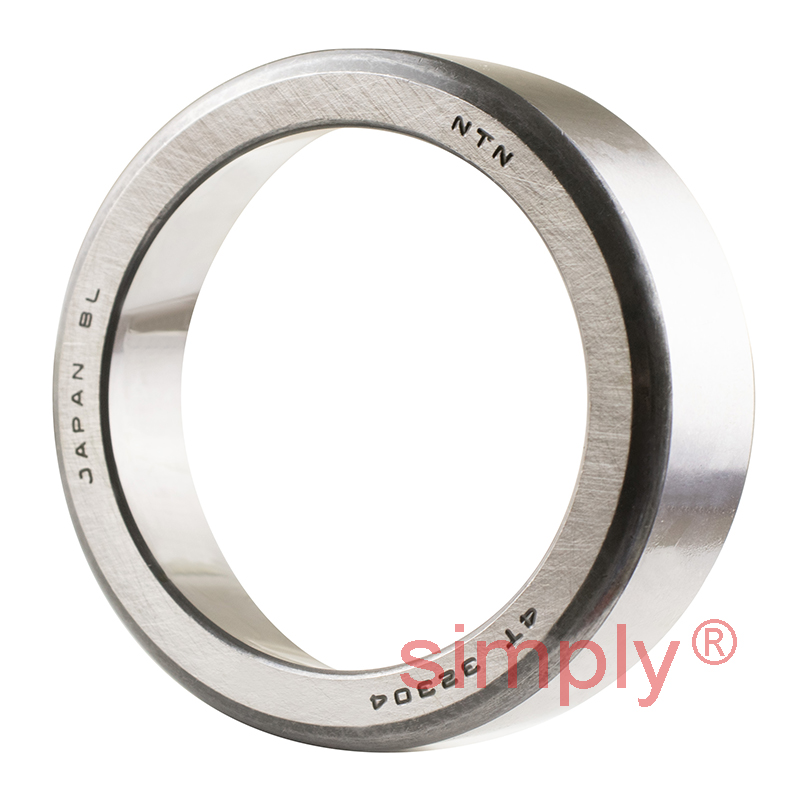

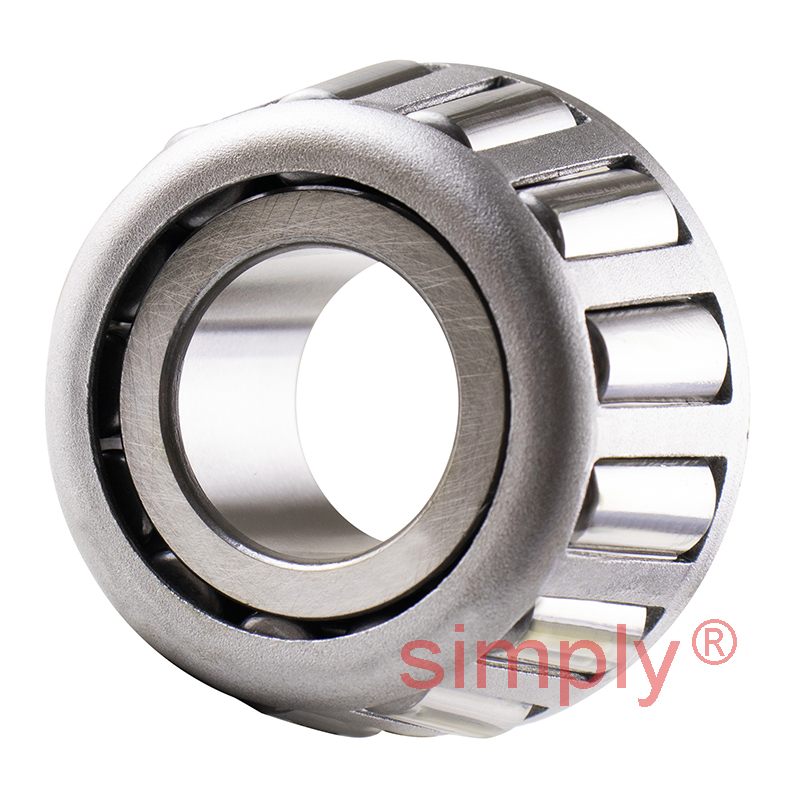

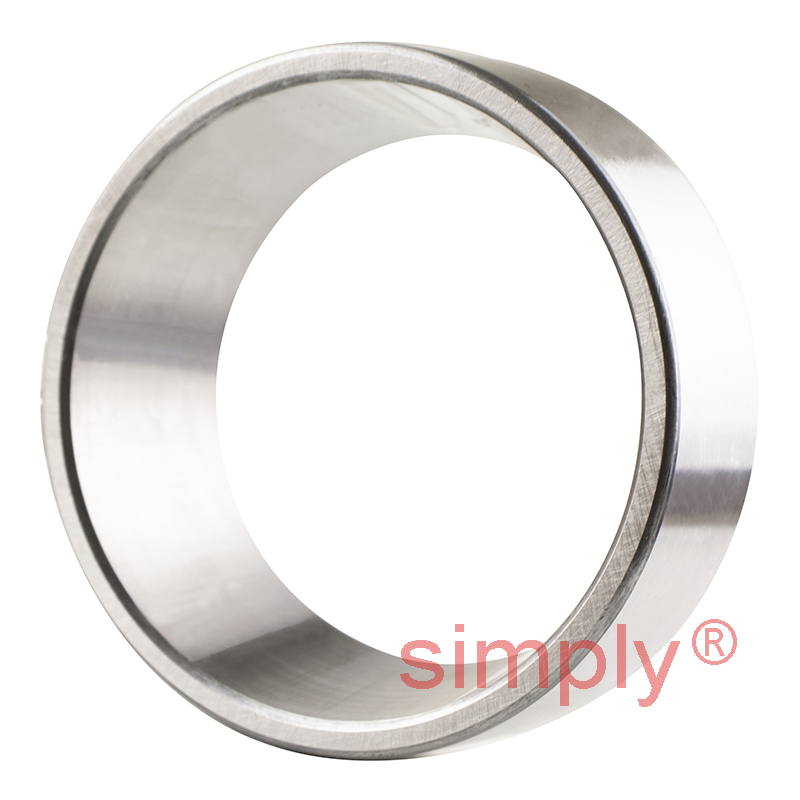

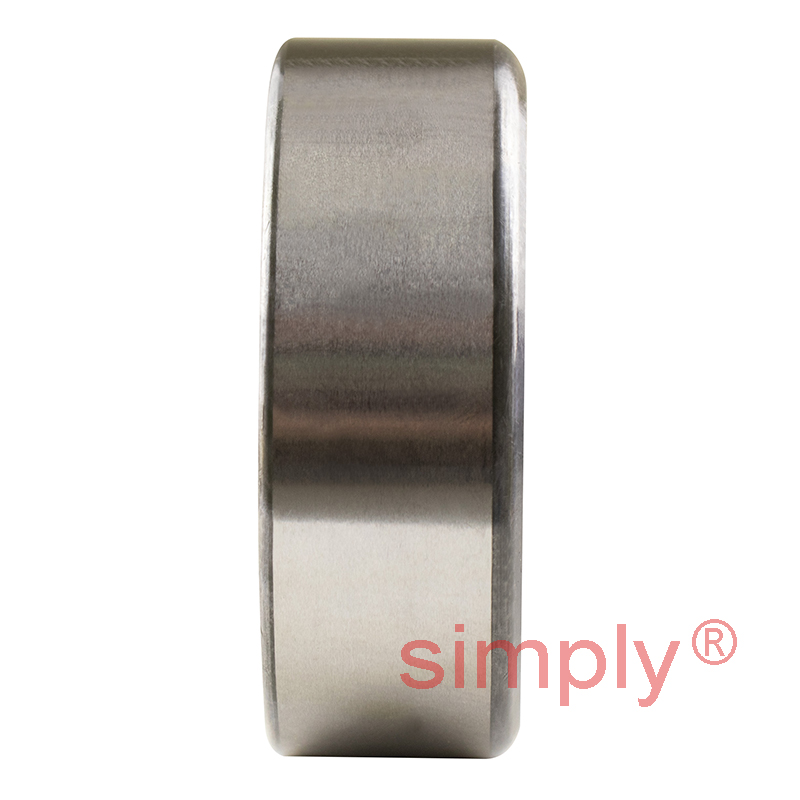

NTN 4T-32304 Tapered Roller Bearing Cup and Cone Set 20x52x22.25mm
- Premium Japanese Manufacturer
- Highest Quality Assured
- Highly Cost Effective
- Huge Stocks Available
- World Renowned Bearing Producer
£18.85
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £16.78 each |
| 5+ | £15.84 each |
| 10+ | £15.65 each |
| 25+ | £15.46 each |
| 49+ | £15.27 each |
| 74+ | £15.08 each |
| 99+ | £14.14 each |
| 199+ | £13.95 each |
| 249+ | £13.76 each |
| 499+ | £13.57 each |
| 999+ | £13.20 each |
In Stock
| Bearing dimensions | ||
| d | = | 20mm |
| D | = | 52mm |
| T | = | 22.25mm |
| B | = | 21mm |
| C | = | 18mm |
| rs min | = | 1.5mm |
| rls min | = | 1.5mm |
| Speeds and loads | ||
| Dynamic load Cr | = | 51.5kN |
| Static load Cor | = | 48.5kN |
| Allowable Speed in grease | = | 8000rpm |
| Allowable Speed in oil | = | 11000rpm |
| Abutment dimensions | ||
| ISO Dimension series | = | 2FD |
| da min | = | 28.5mm |
| db max | = | 27mm |
| Da max | = | 43.5mm |
| Da min | = | 41mm |
| Db min | = | 47.5mm |
| Sa min | = | 3mm |
| Sb min | = | 4mm |
| ras max | = | 1.5mm |
| r1as max | = | 1.5mm |
| Load center a | = | 14mm |
| Constant e | = | 0.3mm |
| Y2 | = | 2mm |
| Y0 | = | 1.1mm |
| Weight | = | 0.242kg |
