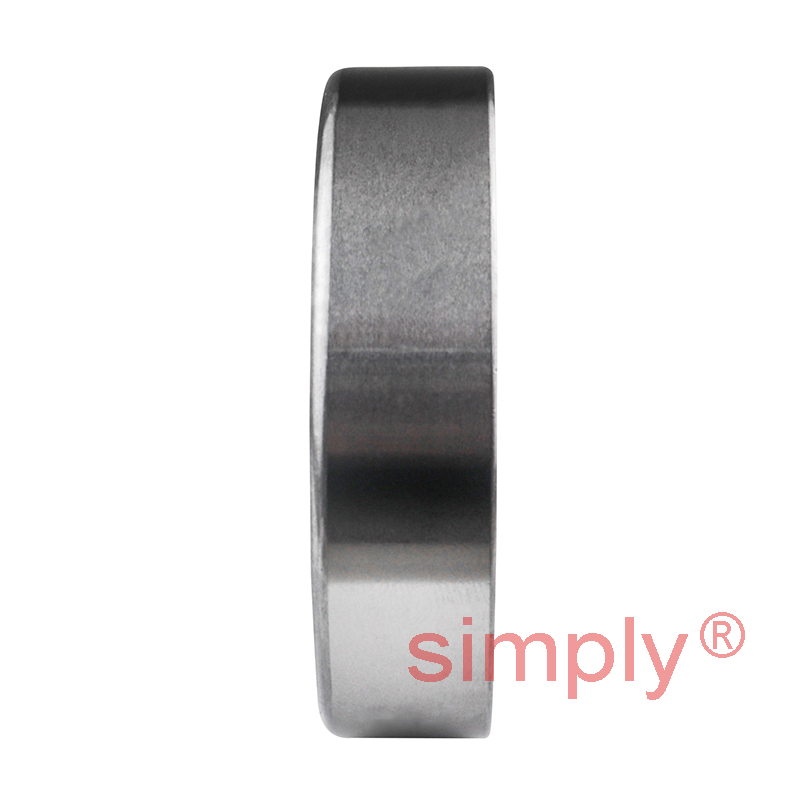

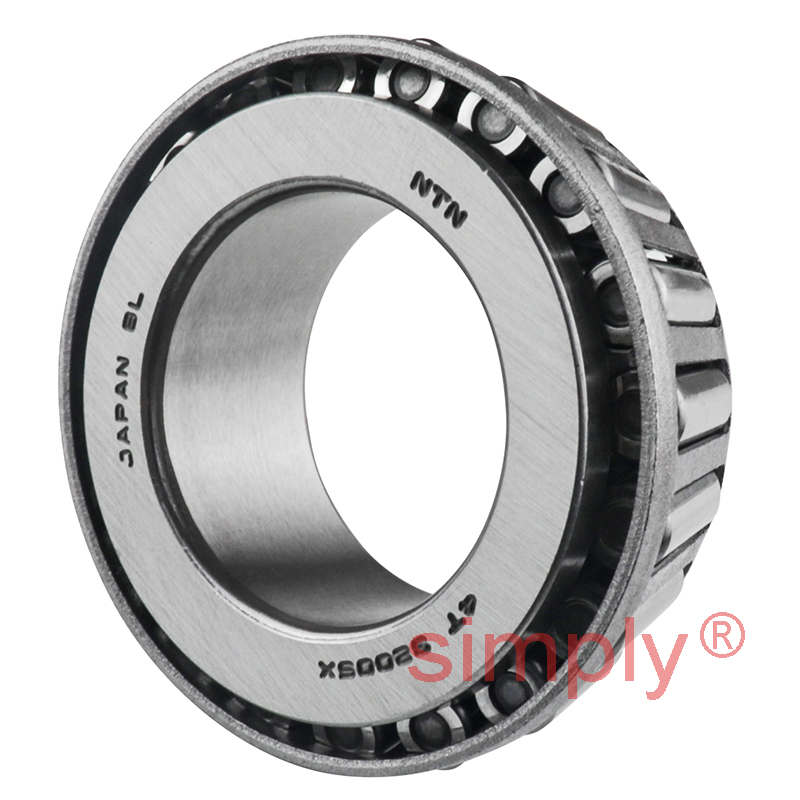

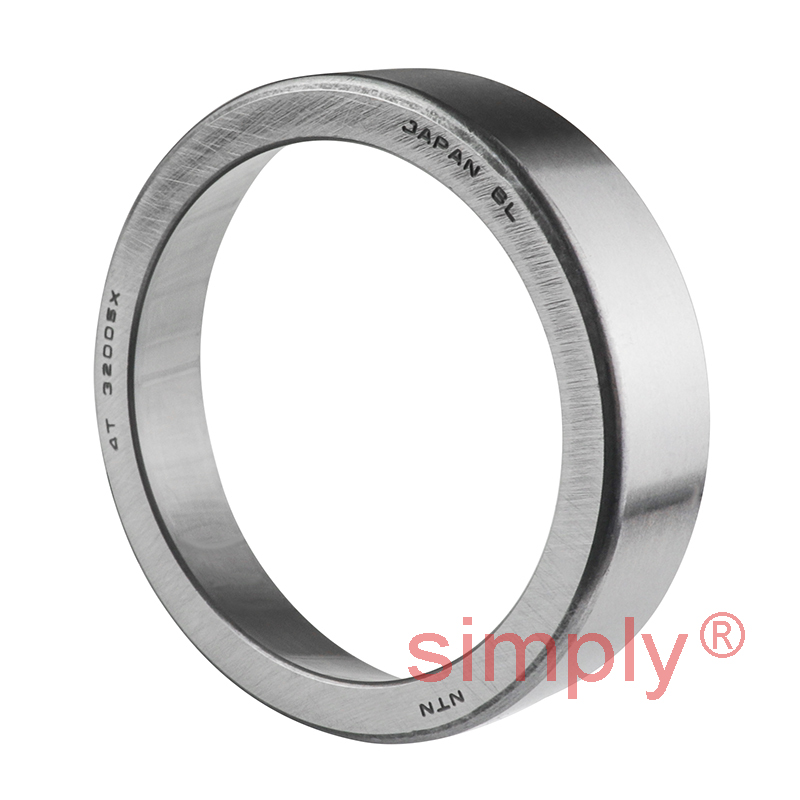

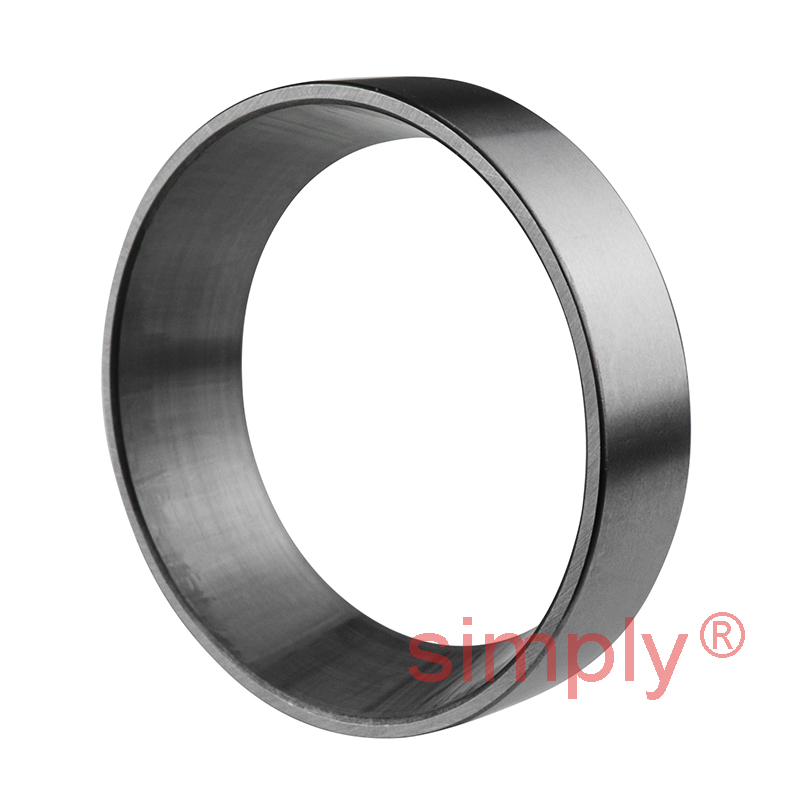

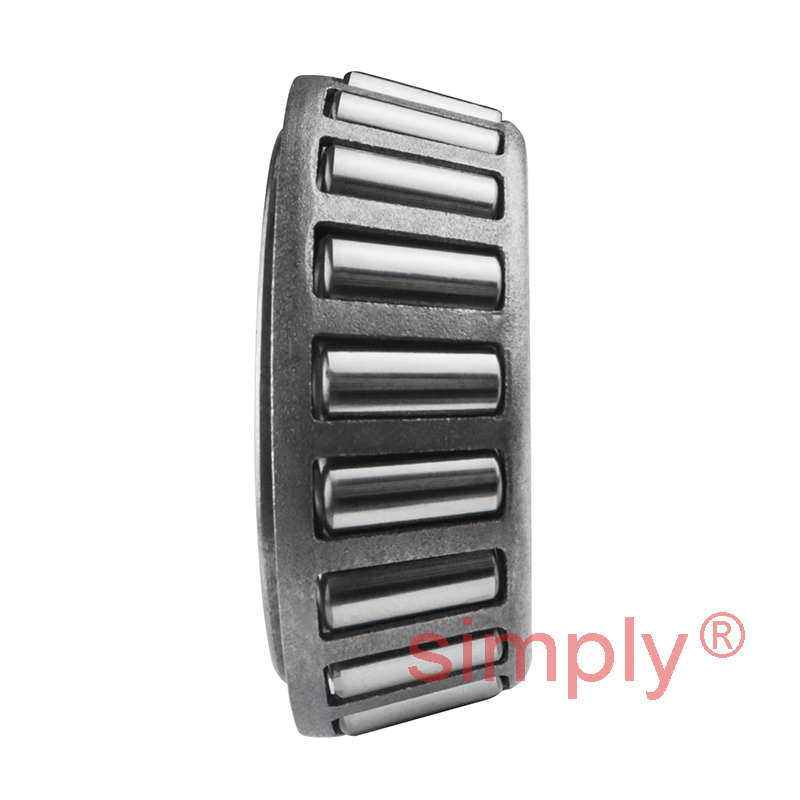

NTN 4T-32005X Tapered Roller Bearing Cup and Cone Set 25x47x15mm
- Premium Japanese Manufacturer
- Highest Quality Assured
- Highly Cost Effective
- Huge Stocks Available
- World Renowned Bearing Producer
£12.57
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £11.19 each |
| 5+ | £10.56 each |
| 10+ | £10.43 each |
| 25+ | £10.31 each |
| 49+ | £10.18 each |
| 74+ | £10.05 each |
| 99+ | £9.43 each |
| 199+ | £9.30 each |
| 249+ | £9.17 each |
| 499+ | £9.05 each |
| 999+ | £8.80 each |
In Stock
| Bearing dimensions | ||
| d | = | 25mm |
| D | = | 47mm |
| T | = | 15mm |
| B | = | 15mm |
| C | = | 11.5mm |
| rs min | = | 0.6mm |
| rls min | = | 0.6mm |
| Speeds and loads | ||
| Dynamic load Cr | = | 31kN |
| Static load Cor | = | 33.5kN |
| Allowable Speed in grease | = | 7900rpm |
| Allowable Speed in oil | = | 11000rpm |
| Abutment dimensions | ||
| ISO Dimension series | = | 4CC |
| da min | = | 29.5mm |
| db max | = | 29.5mm |
| Da max | = | 42.5mm |
| Da min | = | 38.5mm |
| Db min | = | 44.5mm |
| Sa min | = | 3mm |
| Sb min | = | 3.5mm |
| ras max | = | 0.6mm |
| r1as max | = | 0.6mm |
| Load center a | = | 12mm |
| Constant e | = | 0.43mm |
| Y2 | = | 1.39mm |
| Y0 | = | 0.77mm |
| Weight | = | 0.113kg |
