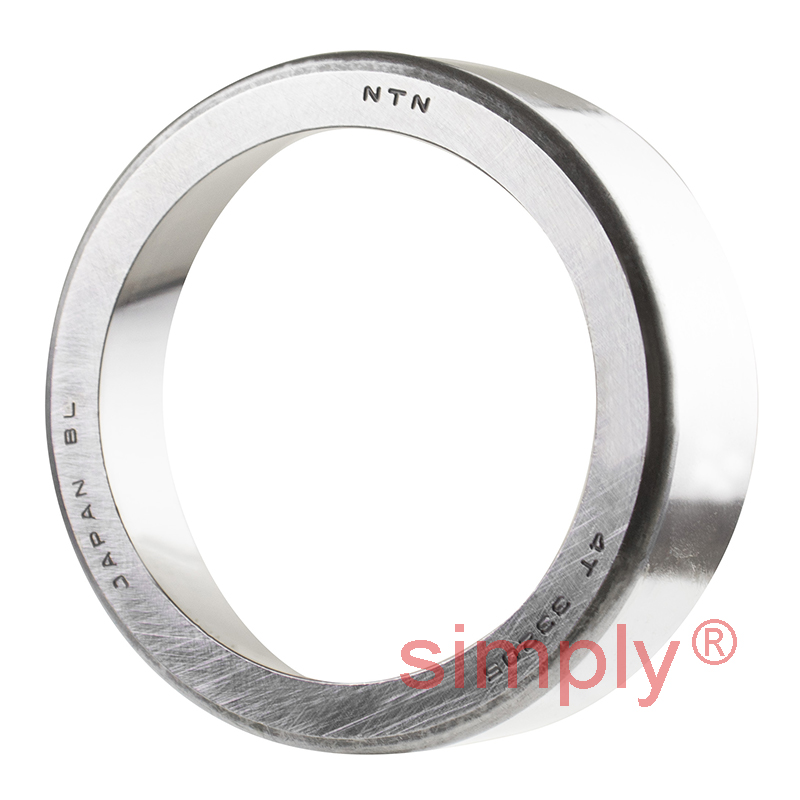

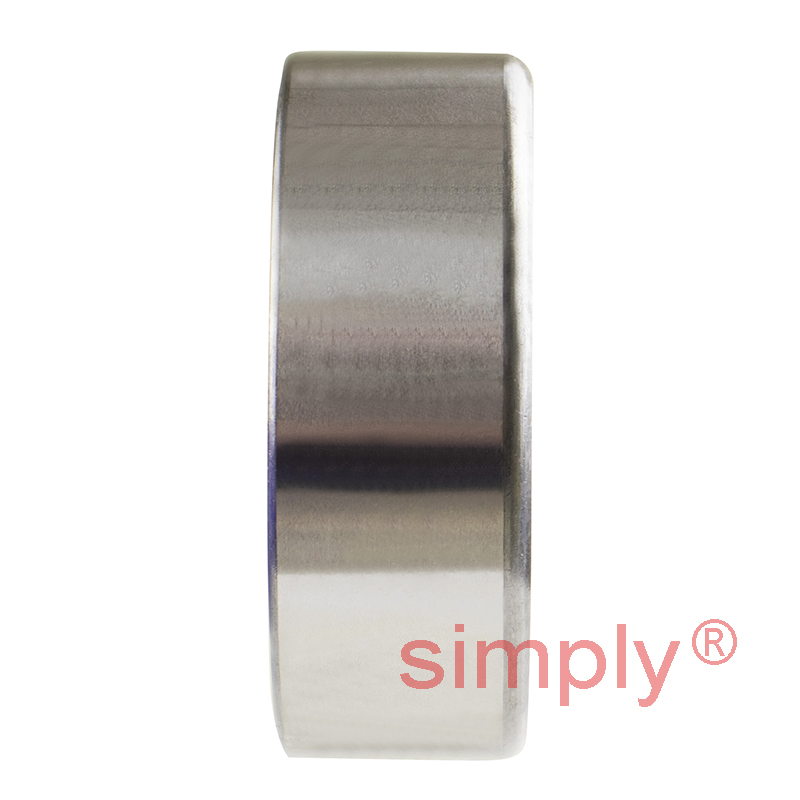

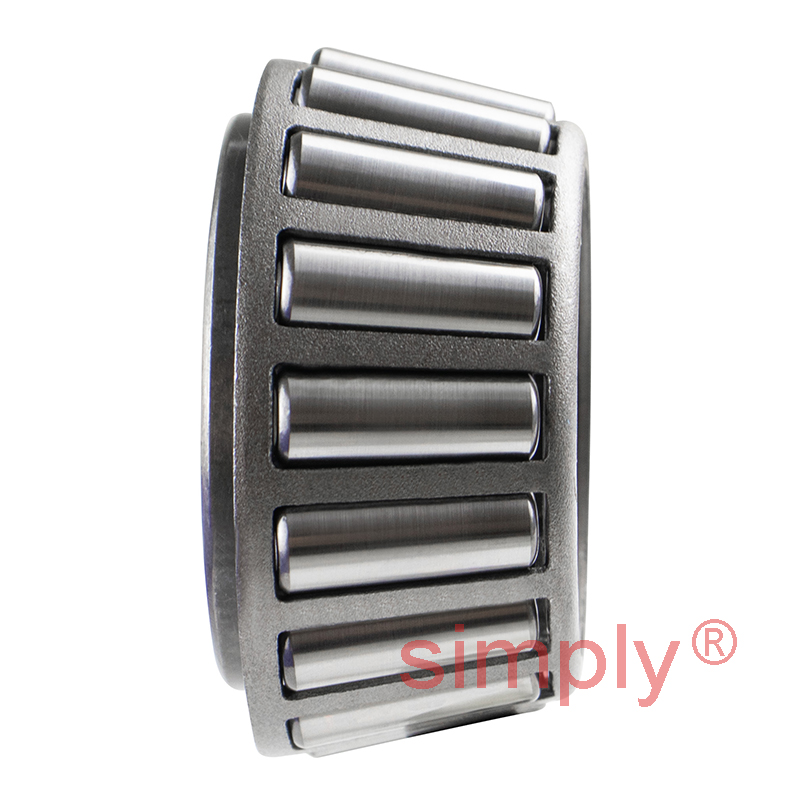

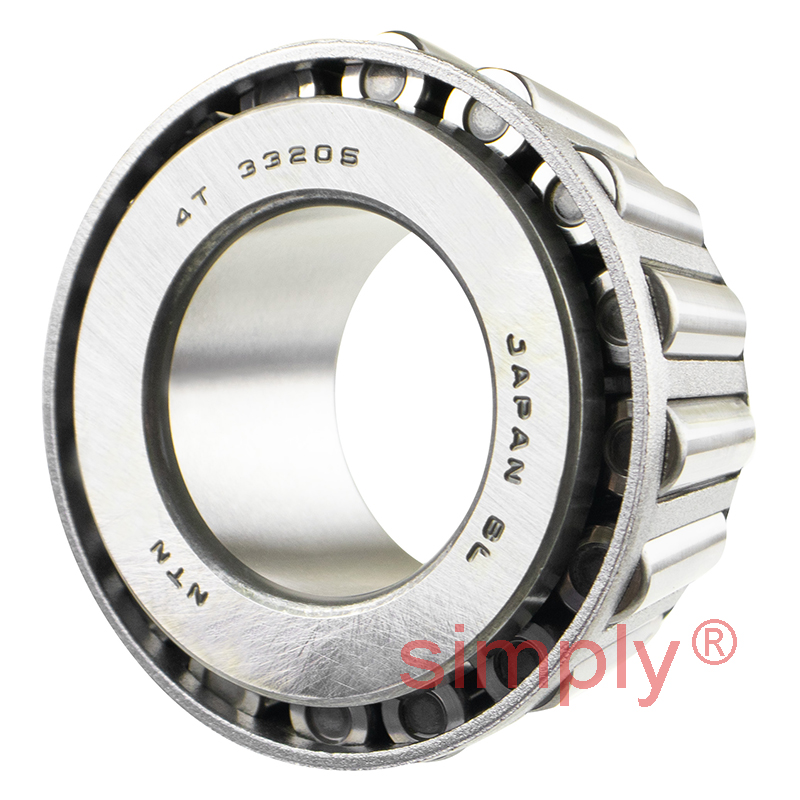

NTN 4T-33205 Tapered Roller Bearing Cup and Cone Set 25x52x22mm
- Premium Japanese Manufacturer
- Highest Quality Assured
- Highly Cost Effective
- Huge Stocks Available
- World Renowned Bearing Producer
£18.91
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £16.83 each |
| 5+ | £15.89 each |
| 10+ | £15.70 each |
| 25+ | £15.51 each |
| 49+ | £15.32 each |
| 74+ | £15.13 each |
| 99+ | £14.19 each |
| 199+ | £14.00 each |
| 249+ | £13.81 each |
| 499+ | £13.62 each |
| 999+ | £13.24 each |
In Stock
| Bearing dimensions | ||
| d | = | 25mm |
| D | = | 52mm |
| T | = | 22mm |
| B | = | 22mm |
| C | = | 18mm |
| rs min | = | 1mm |
| rls min | = | 1mm |
| Speeds and loads | ||
| Dynamic load Cr | = | 52.5kN |
| Static load Cor | = | 57.5kN |
| Allowable Speed in grease | = | 7300rpm |
| Allowable Speed in oil | = | 9800rpm |
| Abutment dimensions | ||
| ISO Dimension series | = | 2DE |
| da min | = | 30.5mm |
| db max | = | 30.5mm |
| Da max | = | 46.5mm |
| Da min | = | 41mm |
| Db min | = | 49.5mm |
| Sa min | = | 4mm |
| Sb min | = | 4mm |
| ras max | = | 1mm |
| r1as max | = | 1mm |
| Load center a | = | 14mm |
| Constant e | = | 0.35mm |
| Y2 | = | 1.71mm |
| Y0 | = | 0.94mm |
| Weight | = | 0.219kg |
