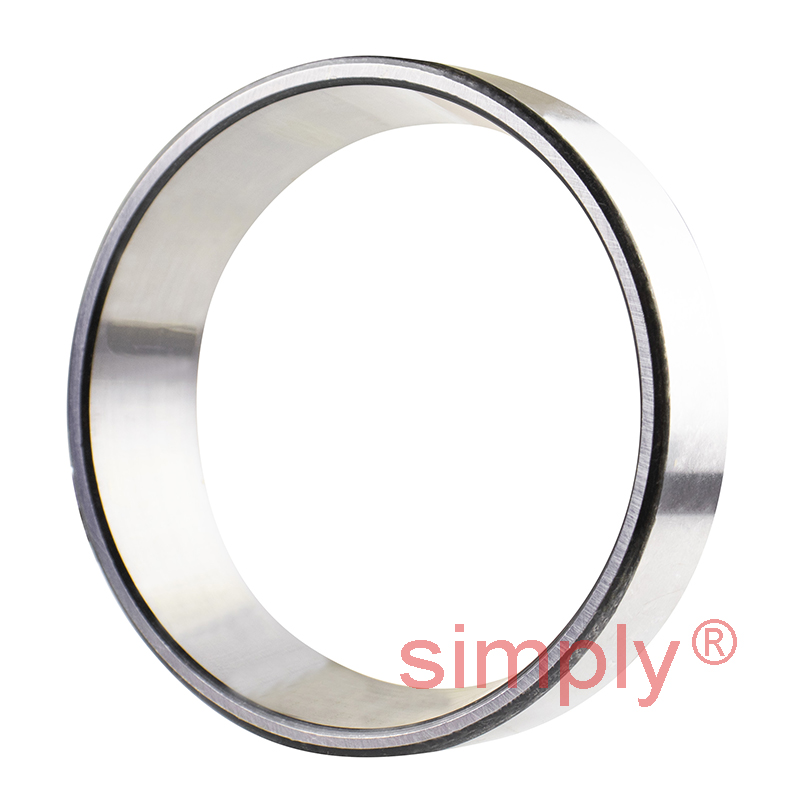

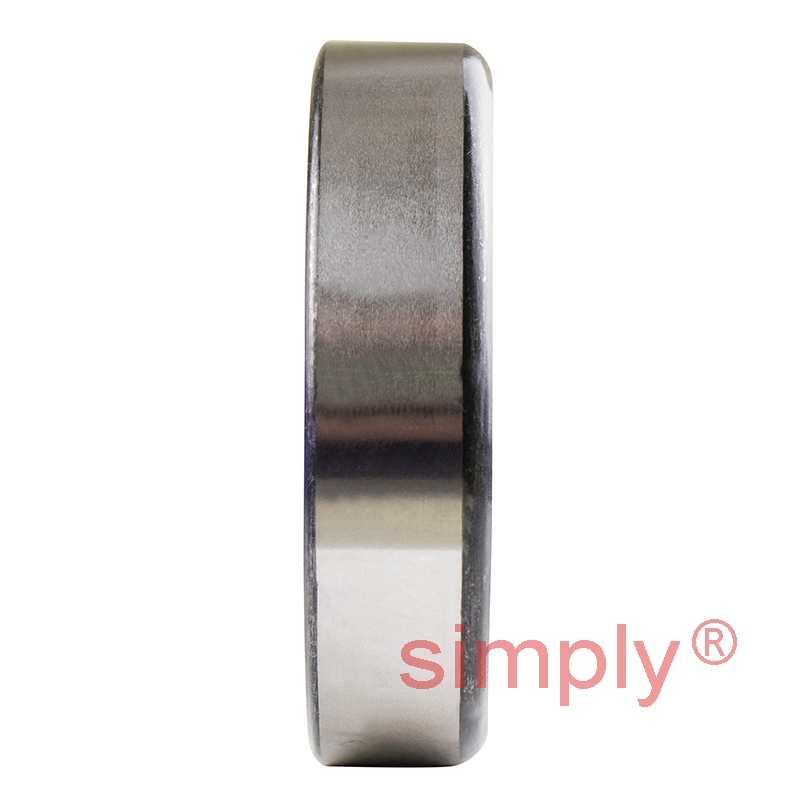

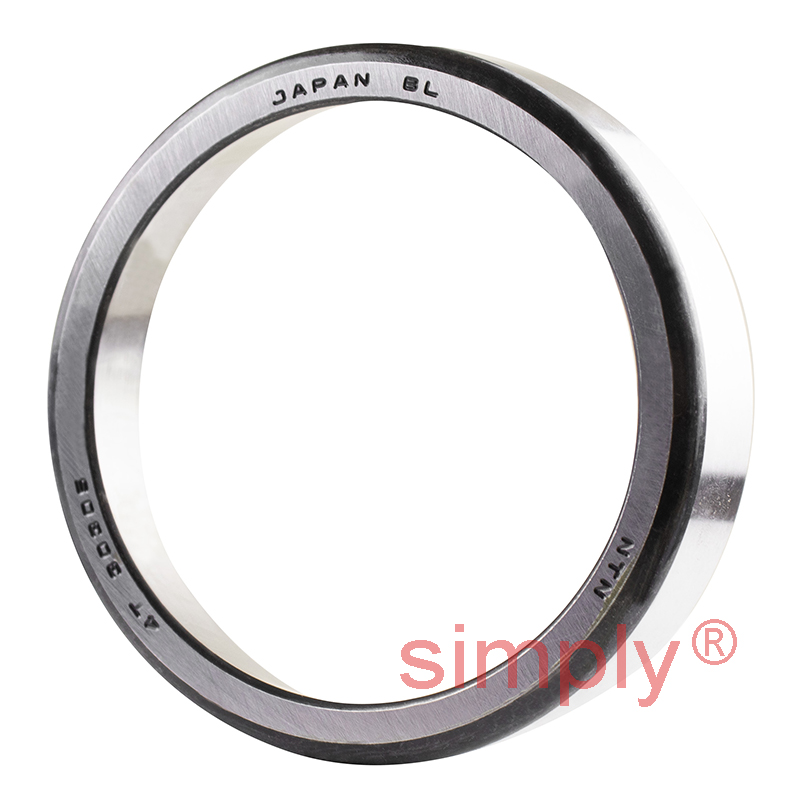

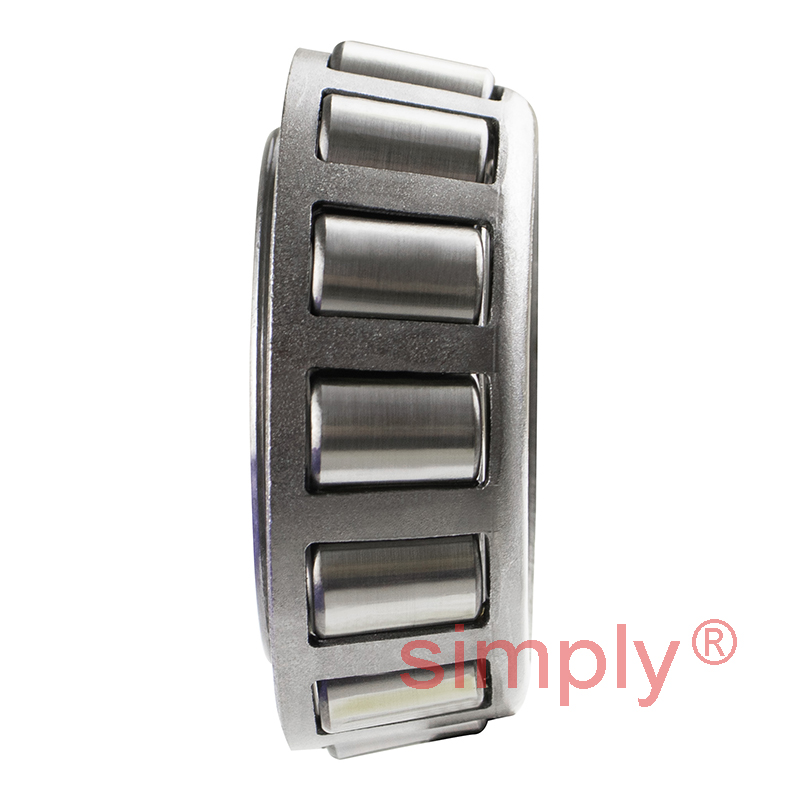

NTN 4T-30305 Tapered Roller Bearing Cup and Cone Set 25x62x18.25mm
- Premium Japanese Manufacturer
- Highest Quality Assured
- Highly Cost Effective
- Huge Stocks Available
- World Renowned Bearing Producer
£16.97
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £15.10 each |
| 5+ | £14.25 each |
| 10+ | £14.08 each |
| 25+ | £13.91 each |
| 49+ | £13.74 each |
| 74+ | £13.57 each |
| 99+ | £12.73 each |
| 199+ | £12.56 each |
| 249+ | £12.39 each |
| 499+ | £12.22 each |
| 999+ | £11.88 each |
In Stock
| Bearing dimensions | ||
| d | = | 25mm |
| D | = | 62mm |
| T | = | 18.25mm |
| B | = | 17mm |
| C | = | 15mm |
| rs min | = | 1.5mm |
| rls min | = | 1.5mm |
| Speeds and loads | ||
| Dynamic load Cr | = | 54kN |
| Static load Cor | = | 47.5kN |
| Allowable Speed in grease | = | 6700rpm |
| Allowable Speed in oil | = | 8900rpm |
| Abutment dimensions | ||
| ISO Dimension series | = | 2FB |
| da min | = | 33.5mm |
| db max | = | 34mm |
| Da max | = | 53.5mm |
| Da min | = | 52mm |
| Db min | = | 57.5mm |
| Sa min | = | 3mm |
| Sb min | = | 3mm |
| ras max | = | 1.5mm |
| r1as max | = | 1.5mm |
| Load center a | = | 13mm |
| Constant e | = | 0.3mm |
| Y2 | = | 2mm |
| Y0 | = | 1.1mm |
| Weight | = | 0.268kg |
