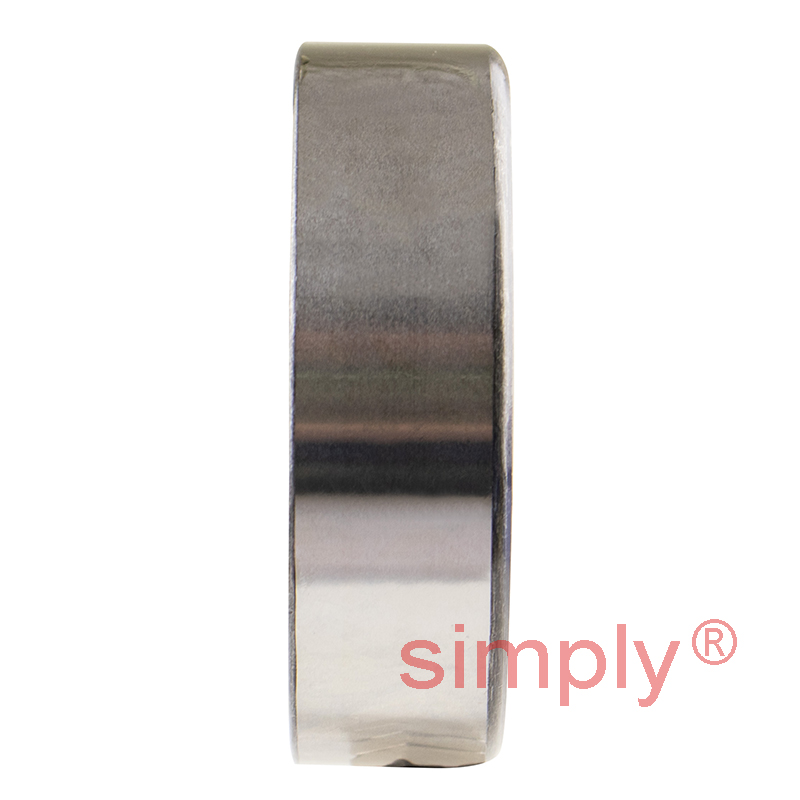

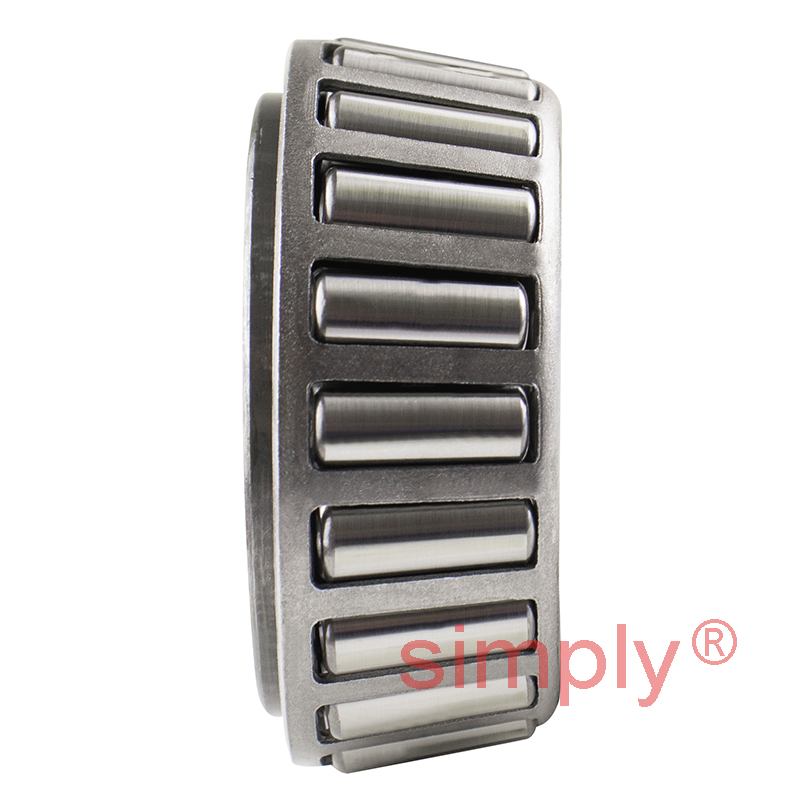

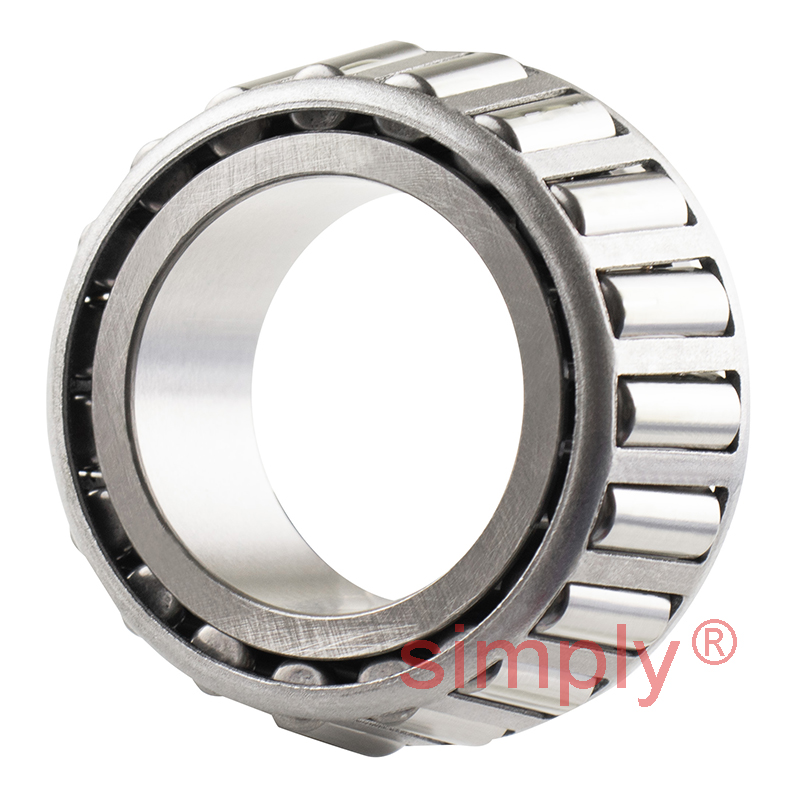

NTN 4T-33006 Tapered Roller Bearing Cup and Cone Set 30x55x20mm
- Premium Japanese Manufacturer
- Highest Quality Assured
- Highly Cost Effective
- Huge Stocks Available
- World Renowned Bearing Producer
£17.24
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £15.35 each |
| 5+ | £14.48 each |
| 10+ | £14.31 each |
| 25+ | £14.14 each |
| 49+ | £13.97 each |
| 74+ | £13.79 each |
| 99+ | £12.93 each |
| 199+ | £12.76 each |
| 249+ | £12.59 each |
| 499+ | £12.42 each |
| 999+ | £12.07 each |
In Stock
| Bearing dimensions | ||
| d | = | 30mm |
| D | = | 55mm |
| T | = | 20mm |
| B | = | 20mm |
| C | = | 16mm |
| rs min | = | 1mm |
| rls min | = | 1mm |
| Speeds and loads | ||
| Dynamic load Cr | = | 47kN |
| Static load Cor | = | 54kN |
| Allowable Speed in grease | = | 6900rpm |
| Allowable Speed in oil | = | 9200rpm |
| Abutment dimensions | ||
| ISO Dimension series | = | 2CE |
| da min | = | 35.5mm |
| db max | = | 35.5mm |
| Da max | = | 49.5mm |
| Da min | = | 46.5mm |
| Db min | = | 52mm |
| Sa min | = | 3mm |
| Sb min | = | 4mm |
| ras max | = | 1mm |
| r1as max | = | 1mm |
| Load center a | = | 13mm |
| Constant e | = | 0.29mm |
| Y2 | = | 2.06mm |
| Y0 | = | 1.13mm |
| Weight | = | 0.201kg |
