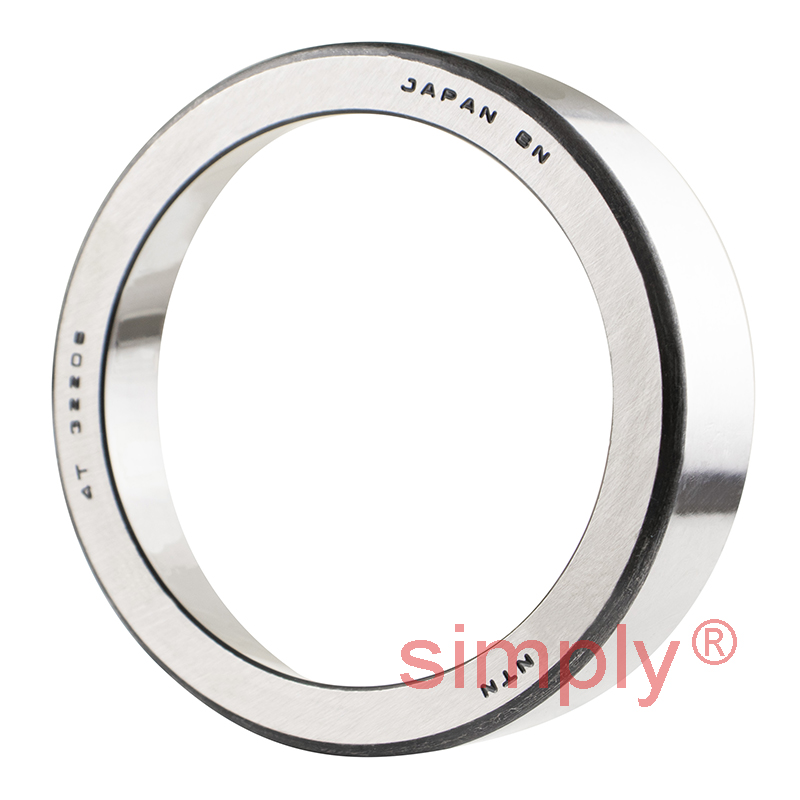

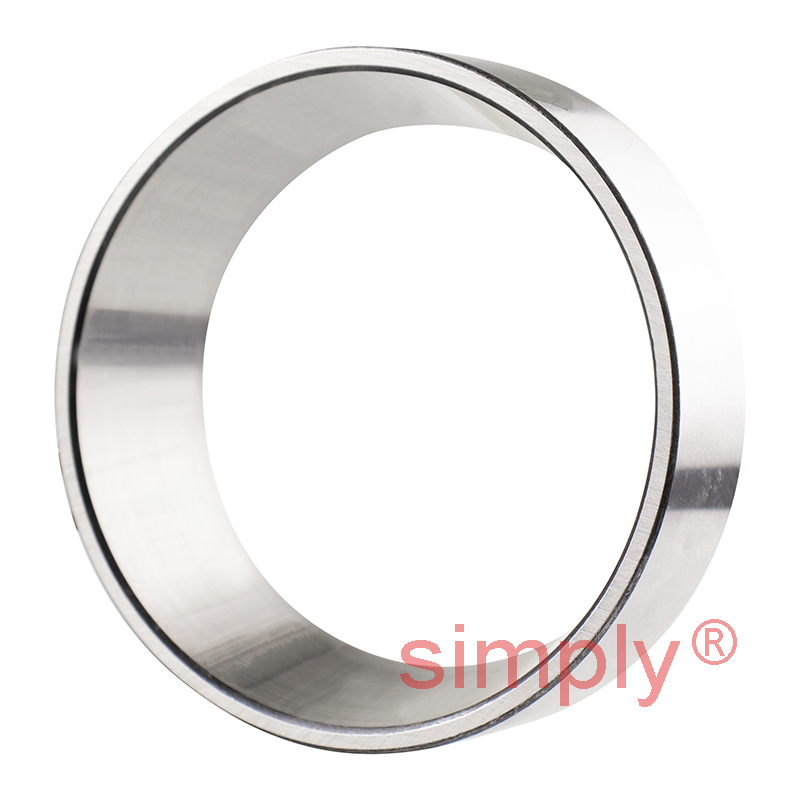

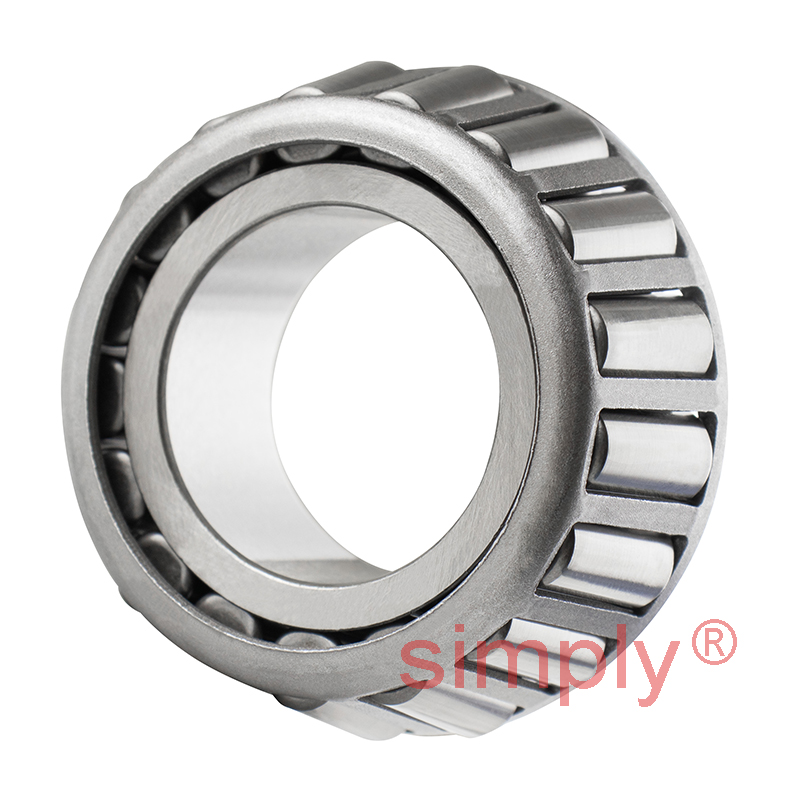

NTN 4T-32206 Tapered Roller Bearing Cup and Cone Set 30x62x21.25mm
- Premium Japanese Manufacturer
- Highest Quality Assured
- Highly Cost Effective
- Huge Stocks Available
- World Renowned Bearing Producer
£16.98
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £15.11 each |
| 5+ | £14.26 each |
| 10+ | £14.09 each |
| 25+ | £13.92 each |
| 49+ | £13.75 each |
| 74+ | £13.58 each |
| 99+ | £12.73 each |
| 199+ | £12.56 each |
| 249+ | £12.39 each |
| 499+ | £12.22 each |
| 999+ | £11.88 each |
In Stock
| Bearing dimensions | ||
| d | = | 30mm |
| D | = | 62mm |
| T | = | 21.25mm |
| B | = | 20mm |
| C | = | 17mm |
| rs min | = | 1mm |
| rls min | = | 1mm |
| Speeds and loads | ||
| Dynamic load Cr | = | 60.5kN |
| Static load Cor | = | 64kN |
| Allowable Speed in grease | = | 6300rpm |
| Allowable Speed in oil | = | 8400rpm |
| Abutment dimensions | ||
| ISO Dimension series | = | 3DC |
| da min | = | 35.5mm |
| db max | = | 36.5mm |
| Da max | = | 56.5mm |
| Da min | = | 50mm |
| Db min | = | 58mm |
| Sa min | = | 2.5mm |
| Sb min | = | 4mm |
| ras max | = | 1mm |
| r1as max | = | 1mm |
| Load center a | = | 15.5mm |
| Constant e | = | 0.37mm |
| Y2 | = | 1.6mm |
| Y0 | = | 0.88mm |
| Weight | = | 0.299kg |
