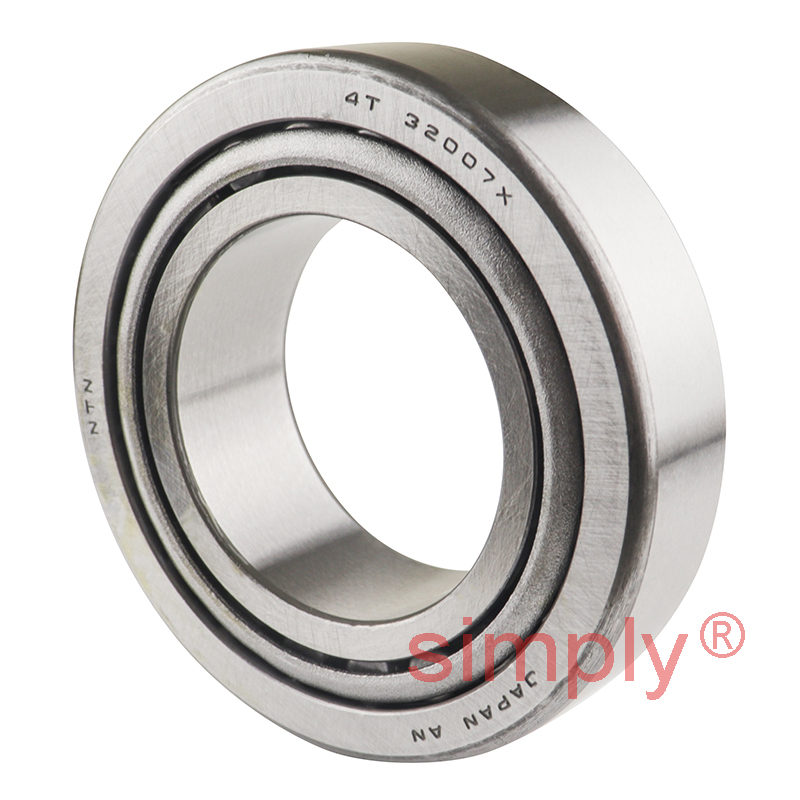

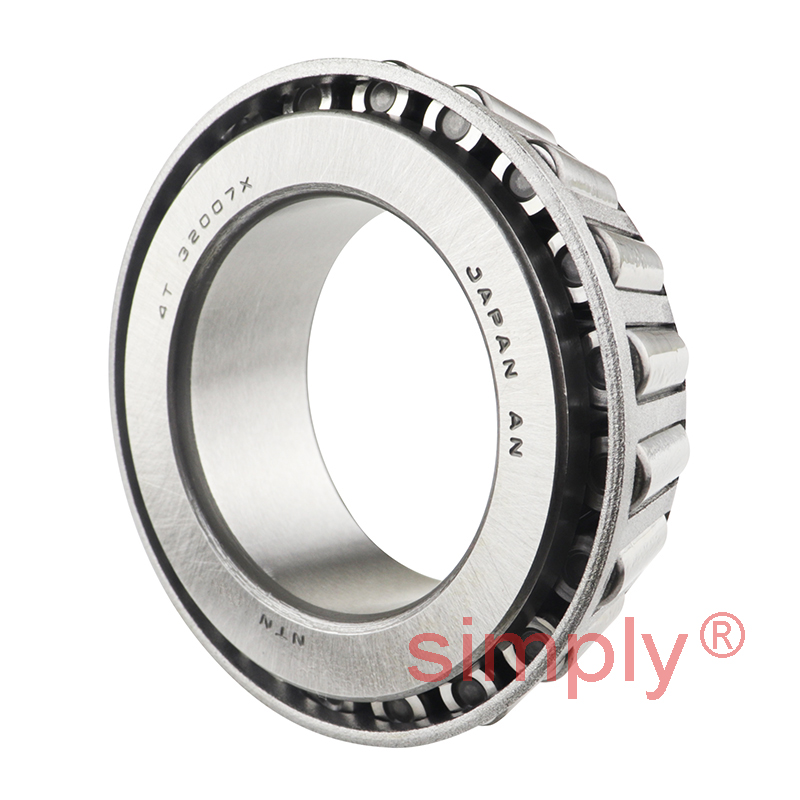

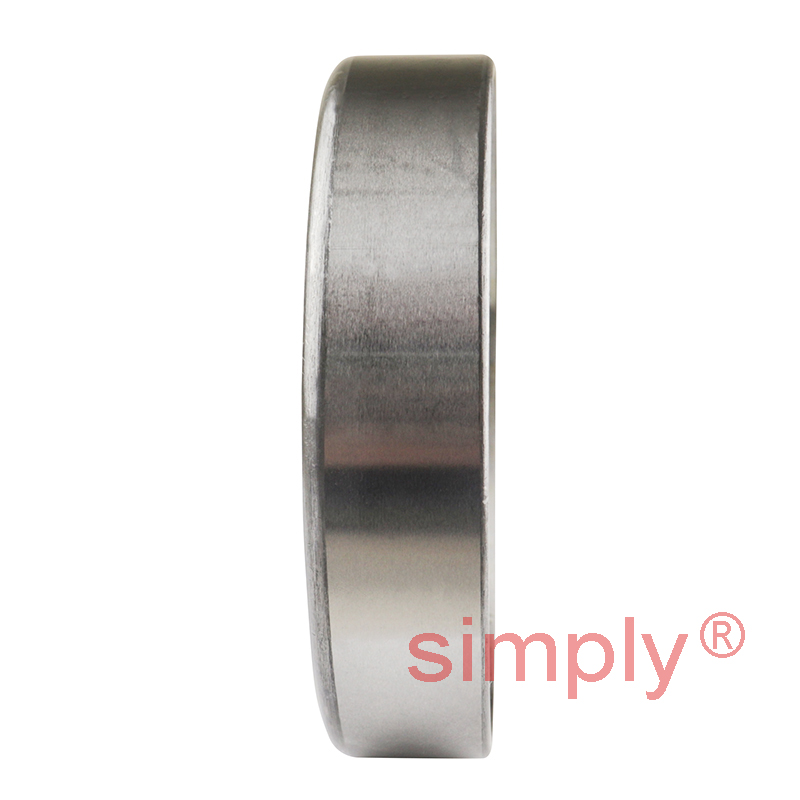

NTN 4T-32007X Tapered Roller Bearing Cup and Cone Set 35x62x18mm
- Premium Japanese Manufacturer
- Highest Quality Assured
- Highly Cost Effective
- Huge Stocks Available
- World Renowned Bearing Producer
£15.50
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £13.79 each |
| 5+ | £13.02 each |
| 10+ | £12.86 each |
| 25+ | £12.71 each |
| 49+ | £12.55 each |
| 74+ | £12.40 each |
| 99+ | £11.62 each |
| 199+ | £11.47 each |
| 249+ | £11.31 each |
| 499+ | £11.16 each |
| 999+ | £10.85 each |
In Stock
| Bearing dimensions | ||
| d | = | 35mm |
| D | = | 62mm |
| T | = | 18mm |
| B | = | 18mm |
| C | = | 14mm |
| rs min | = | 1mm |
| rls min | = | 1mm |
| Speeds and loads | ||
| Dynamic load Cr | = | 46kN |
| Static load Cor | = | 52.5kN |
| Allowable Speed in grease | = | 6100rpm |
| Allowable Speed in oil | = | 8100rpm |
| Abutment dimensions | ||
| ISO Dimension series | = | 4CC |
| da min | = | 40.5mm |
| db max | = | 40.5mm |
| Da max | = | 56.5mm |
| Da min | = | 51.5mm |
| Db min | = | 59.5mm |
| Sa min | = | 4mm |
| Sb min | = | 4mm |
| ras max | = | 1mm |
| r1as max | = | 1mm |
| Load center a | = | 15.5mm |
| Constant e | = | 0.45mm |
| Y2 | = | 1.32mm |
| Y0 | = | 0.73mm |
| Weight | = | 0.223kg |
