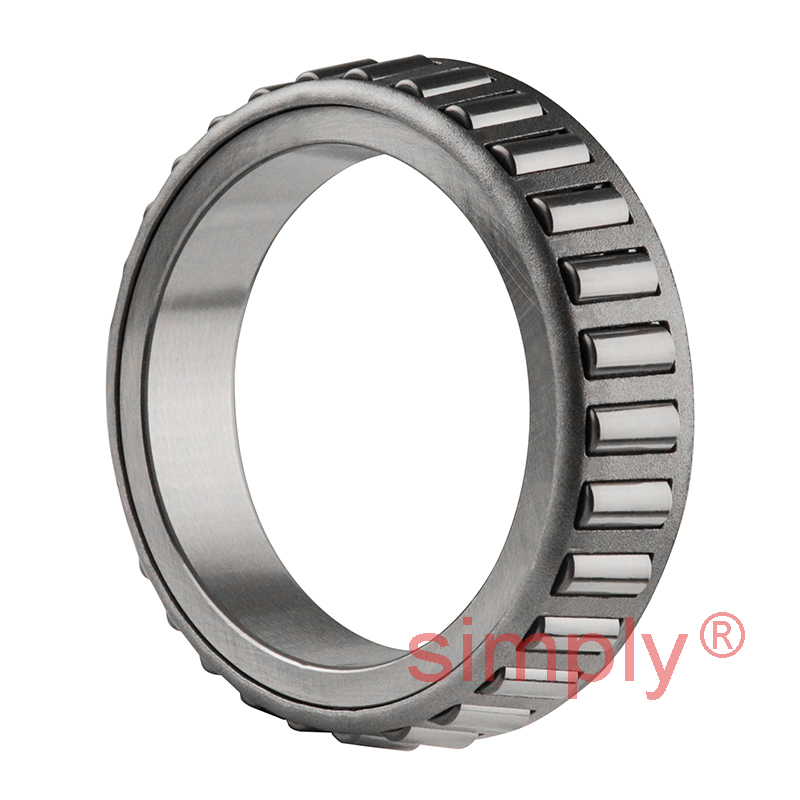

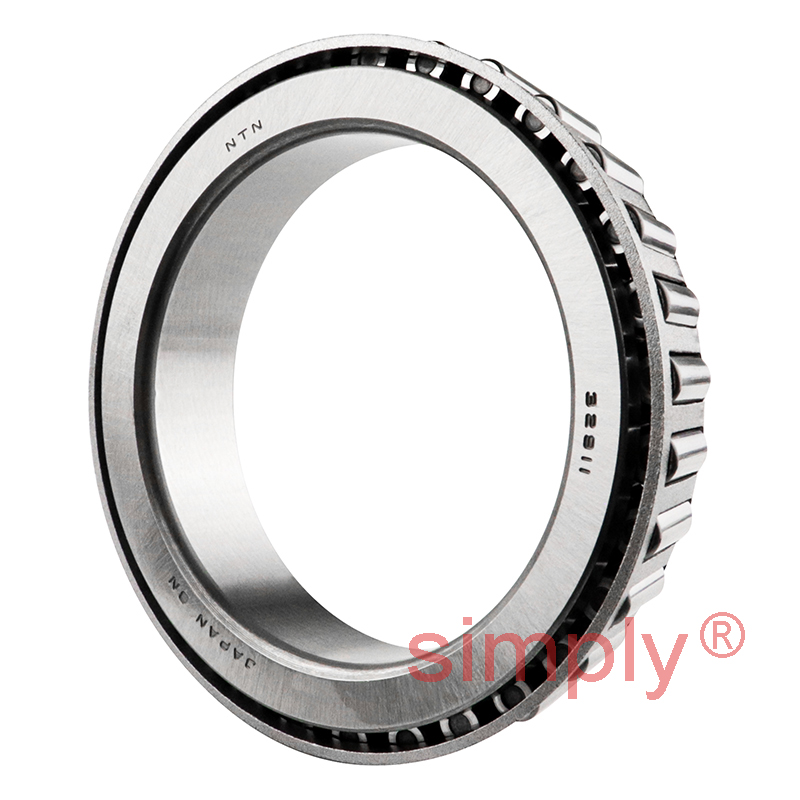

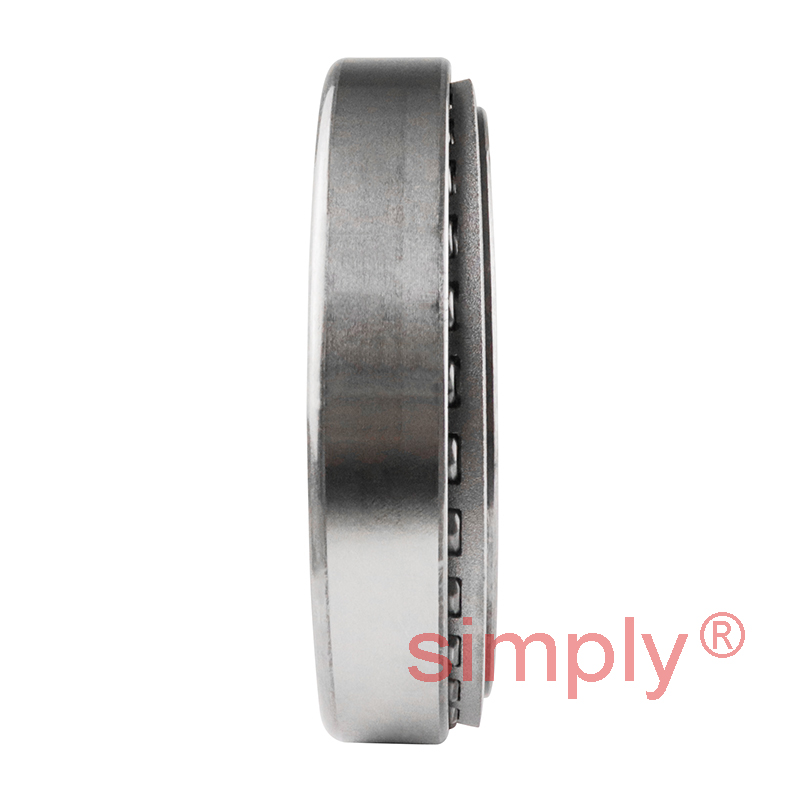

NTN 32911XU Tapered Roller Bearing Cup and Cone Set 55x80x17mm
- Premium Japanese Manufacturer
- Highest Quality Assured
- Highly Cost Effective
- Huge Stocks Available
- World Renowned Bearing Producer
£25.70
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £22.88 each |
| 5+ | £21.59 each |
| 10+ | £21.33 each |
| 25+ | £21.08 each |
| 49+ | £20.82 each |
| 74+ | £20.56 each |
| 99+ | £19.28 each |
| 199+ | £19.02 each |
| 249+ | £18.76 each |
| 499+ | £18.51 each |
| 999+ | £17.99 each |
In Stock
| Bearing dimensions | ||
| d | = | 55mm |
| D | = | 80mm |
| T | = | 17mm |
| B | = | 17mm |
| C | = | 14mm |
| rs min | = | 1mm |
| rls min | = | 1mm |
| Speeds and loads | ||
| Dynamic load Cr | = | 49.5kN |
| Static load Cor | = | 73.5kN |
| Fatigue Load limit Cu | = | 8.95kN |
| Allowable Speed in grease | = | 4300rpm |
| Allowable Speed in oil | = | 5700rpm |
| Abutment dimensions | ||
| ISO Dimension series | = | 2BC |
| da min | = | 60.5mm |
| db max | = | 61mm |
| Da max | = | 74.5mm |
| Da min | = | 70.5mm |
| Db min | = | 76.5mm |
| Sa min | = | 3mm |
| Sb min | = | 3mm |
| ras max | = | 1mm |
| r1as max | = | 1mm |
| Load center a | = | 14.5mm |
| Constant e | = | 0.31mm |
| Y2 | = | 1.94mm |
| Y0 | = | 1.07mm |
| Weight | = | 0.274kg |
