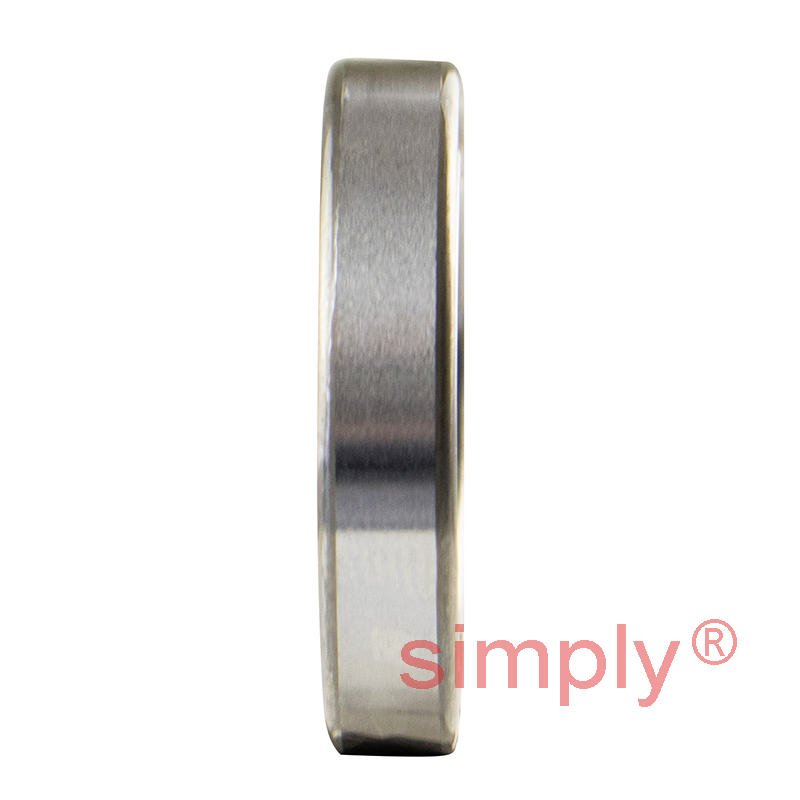

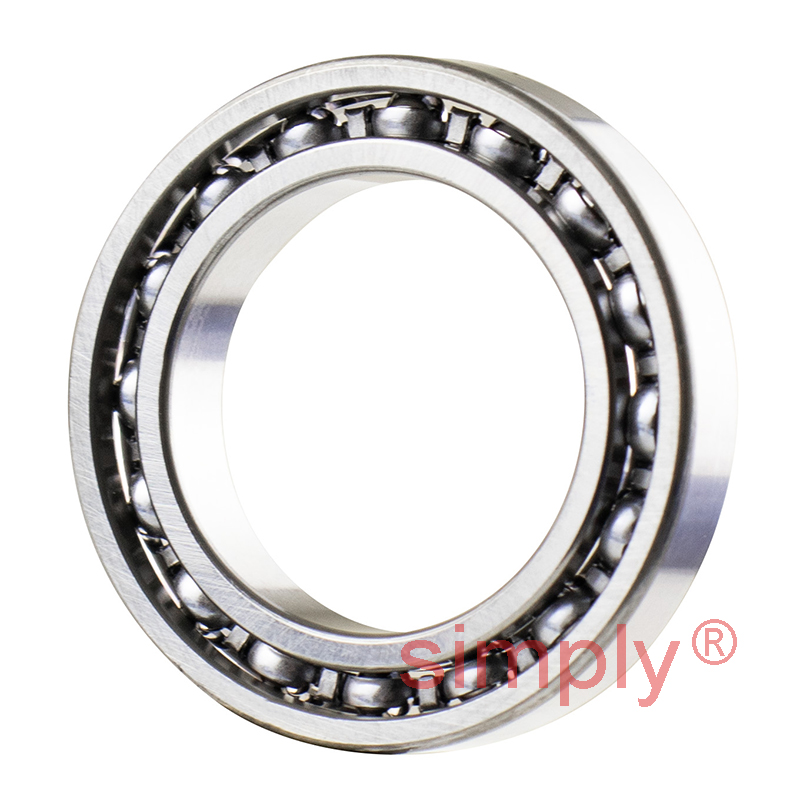

NTN 6803 Open Type Deep Groove Ball Bearing 17x26x5mm
- World-renowned NTN quality
- Cost effective solution
Equivalent to: 6803CM 61803CM 61803T 61803 1803S 61803
£11.79
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £10.49 each |
| 5+ | £9.90 each |
| 10+ | £9.78 each |
| 25+ | £9.67 each |
| 49+ | £9.55 each |
| 74+ | £9.43 each |
| 99+ | £8.84 each |
In Stock
| Bearing dimensions | ||
| d | = | 17mm |
| D | = | 26mm |
| B | = | 5mm |
| rs min | = | 0.3mm |
| Loads angles and speeds | ||
| Cr | = | 2.47 kN |
| Cor | = | 1.46 kN |
| Cu | = | 0.102 kN |
| f0 | = | 16.1 kN |
| Grease | = | 24000 rpm |
| Oil | = | 28000 rpm |
| Fitting Dimensions | ||
| da Min. | = | 19mm |
| Da Max. | = | 24mm |
| ras Max. | = | 0.3mm |
| Weight | = | 0.008 kg |
