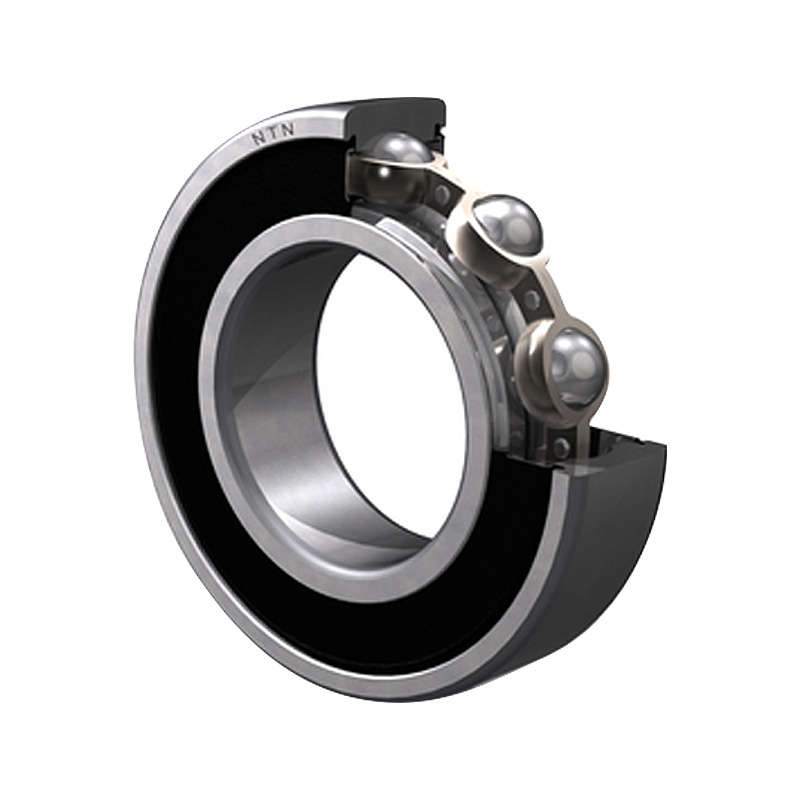

NTN 6902LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 15x28x7mm
- World-renowned NTN quality
- Premium Japanese Manufacturer
- Highest Quality Assured
- Cost effective solution
Equivalent to: 6902LLBCM 61902LLBCM 6902LLB 61902LLB 69022NKE 6902VV 69022RSL 69022RZ
£13.29
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £11.83 each |
| 5+ | £11.17 each |
| 10+ | £11.03 each |
| 25+ | £10.90 each |
| 49+ | £10.77 each |
| 74+ | £10.63 each |
| 99+ | £9.97 each |
| 199+ | £9.84 each |
| 249+ | £9.70 each |
| 499+ | £9.57 each |
| 999+ | £9.30 each |
In Stock
| Bearing dimensions | ||
| d | = | 15mm |
| D | = | 28mm |
| B | = | 7mm |
| rs min | = | 0.3mm |
| Loads angles and speeds | ||
| Cr | = | 4.05 kN |
| Cor | = | 2 kN |
| Cu | = | 0.157 kN |
| f0 | = | 14.8 kN |
| Grease | = | 24000 rpm |
| Oil | = | 28000 rpm |
| Fitting Dimensions | ||
| da Min. | = | 17mm |
| da Max. | = | 17.5mm |
| Da Max. | = | 26mm |
| ras Max. | = | 0.3mm |
| Weight | = | 0.016 kg |
