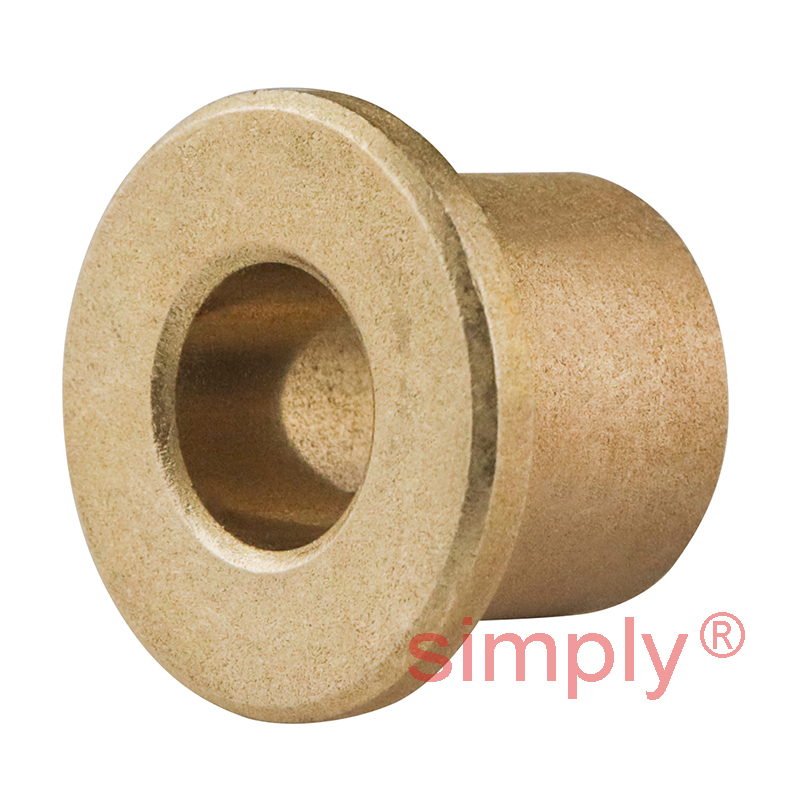

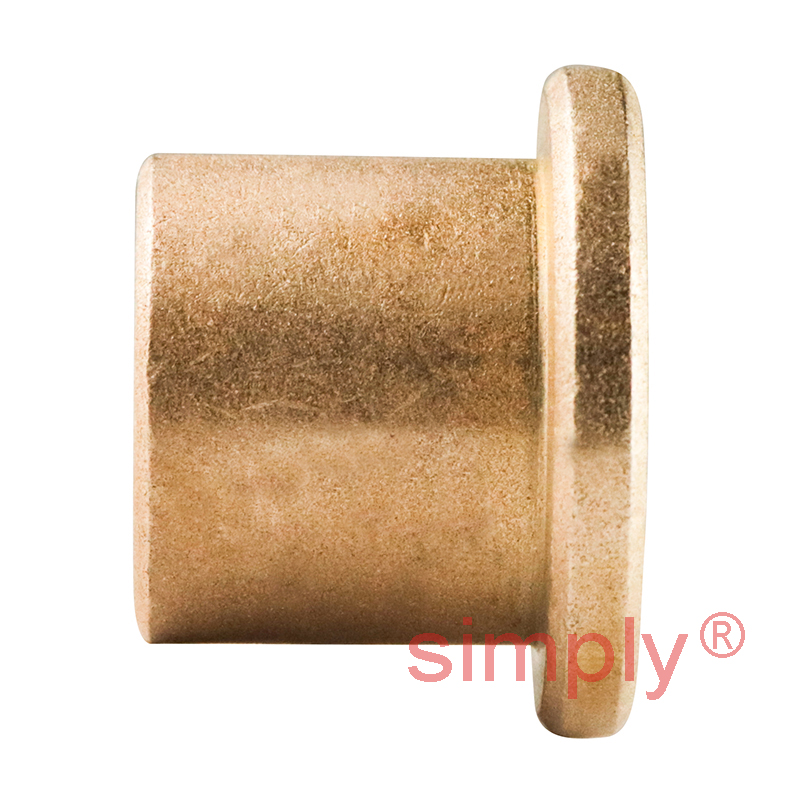

PSMF101616A51 Premier Budget Imperial Flanged Sintered Bronze Bush 0.394x0.63x0.63 inch
Equivalent to: SBK 010/016 X 016
£4.05
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 9+ | £3.60 each |
| 19+ | £3.40 each |
| 29+ | £3.36 each |
| 39+ | £3.32 each |
| 49+ | £3.28 each |
| 69+ | £3.24 each |
| 99+ | £3.04 each |
| 199+ | £3.00 each |
| 249+ | £2.96 each |
| 499+ | £2.92 each |
| 999+ | £2.83 each |
In Stock
| d | = | 0.394 inch |
| D | = | 0.63 inch |
| B | = | 0.63 inch |
| D1 | = | 0.87 inch |
| B1 | = | 0.12 inch |
| Tolerance shaft | = | h8 |
| Tolerance housing | = | H7 |
| Specific Dynamic Load Factor ( K ) | = | 1450.377 psi |
| Specific Static Load Factor ( K0 ) | = | 2900.755 psi |
| Permissable Sliding Velocity ( v ) | = | min. 49.213 ft/min |
| Permissable Sliding Velocity ( v ) | = | max. 984.252 ft/min |
| Coefficient of Friction ( y ) | = | min. 0.05 |
| Coefficient of Friction ( y ) | = | max. 0.1 |
| Weight | = | 0.01 lbs |
