PBMF202820M1G1 Premier Budget Metric Flanged Solid Bronze Bush 20x28x20mm
Equivalent to: TBF 020/028 X 020
£15.18
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 9+ | £13.51 each |
| 19+ | £12.75 each |
| 29+ | £12.60 each |
| 39+ | £12.45 each |
| 49+ | £12.30 each |
| 69+ | £12.14 each |
| 99+ | £11.39 each |
| 199+ | £11.23 each |
| 249+ | £11.08 each |
| 499+ | £10.93 each |
| 999+ | £10.63 each |
In Stock

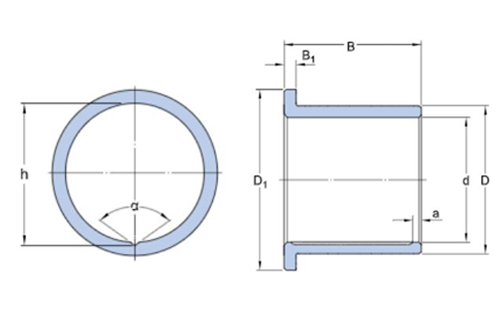

| d | = | 20mm |
| D | = | 28mm |
| B | = | 20mm |
| D1 | = | 35mm |
| B1 | = | 4mm |
| a | = | 3mm |
| h | = | 21mm |
| a Angle | = | 105 deg |
| Tolerance shaft | = | e7 |
| Tolerance housing | = | H7 |
| Specific Dynamic Load Factor ( K ) | = | 25 N/mm 2 |
| Specific Static Load Factor ( K0 ) | = | 45 N/mm 2 |
| Permissable Sliding Velocity ( v ) | = | min. 0 m/s |
| Permissable Sliding Velocity ( v ) | = | max. 0.5 m/s |
| Coefficient of Friction ( y ) | = | min. 0.08 |
| Coefficient of Friction ( y ) | = | max. 0.15 |
| Weight | = | 0.043kg |
