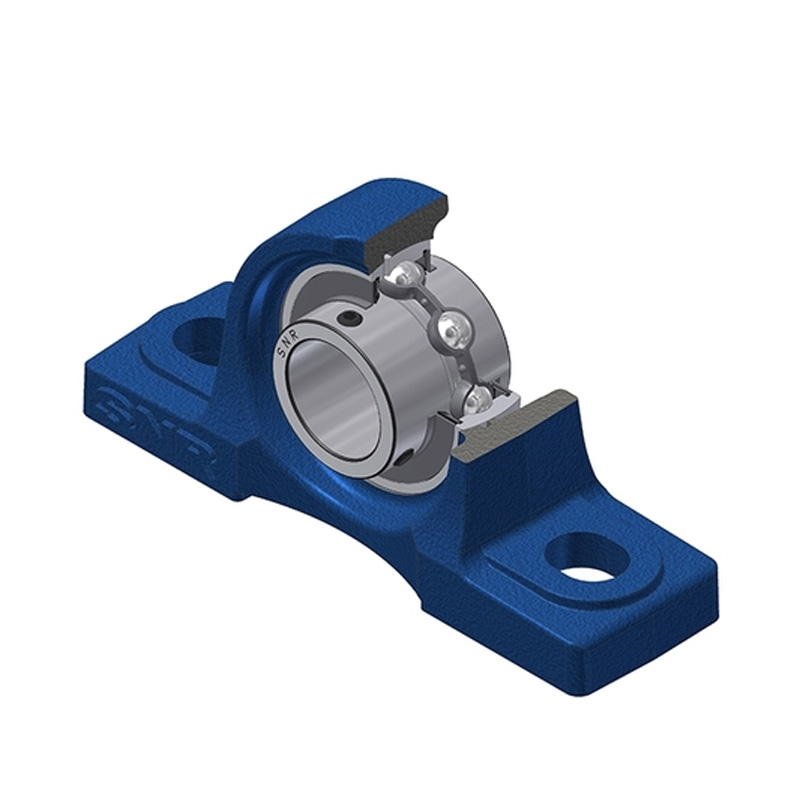

SNR UCP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
£22.17
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £19.74 each |
| 4+ | £18.63 each |
| 9+ | £18.41 each |
| 19+ | £18.18 each |
| 49+ | £17.96 each |
| 99+ | £17.74 each |
| 499+ | £16.63 each |
In Stock

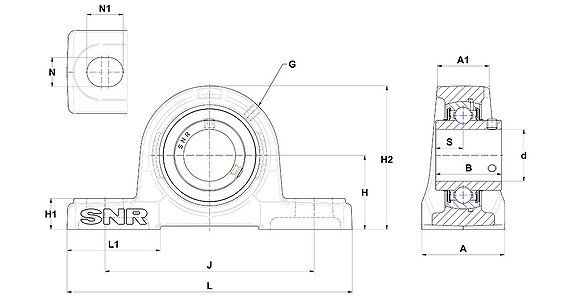

| Dimensions | ||
| Shaft diameter d | = | 20mm |
| A | = | 38mm |
| A1 | = | 22mm |
| B | = | 31mm |
| H | = | 33.3mm |
| H1 | = | 15mm |
| H2 | = | 65mm |
| J | = | 95mm |
| L | = | 127mm |
| L1 | = | 42mm |
| N | = | 13mm |
| N1 | = | 19mm |
| S | = | 12.7mm |
| Grease fitting G | = | M6x1 |
| Load rating | ||
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| Unit information | ||
| Operating temperature min. | = | -20°C |
| Operating temperature max. | = | 100°C |
| Mass | = | 0.67 kg |
| Recommended tightening torque for set screw | = | 5.5 Nm |
