SNR UCP207L3CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Triple Lip Seal and Steel Plate Cover - Open Version - Allow 2-3 Days
Contact Us for Availability
Limited Availability
Please Enquire

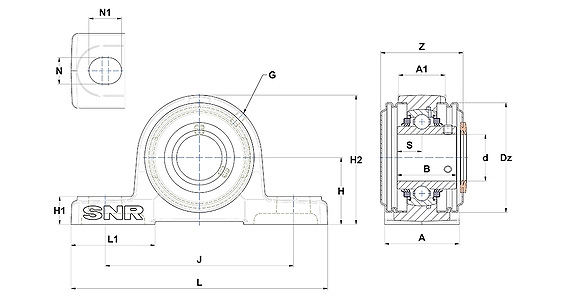

| Dimensions | ||
| Shaft diameter d | = | 35mm |
| A | = | 48mm |
| A1 | = | 31mm |
| B | = | 42.9mm |
| H | = | 47.6mm |
| H1 | = | 19mm |
| H2 | = | 94mm |
| J | = | 127mm |
| L | = | 167mm |
| L1 | = | 54mm |
| N | = | 17mm |
| N1 | = | 21mm |
| S | = | 17.5mm |
| Dz | = | 80mm |
| Z | = | 41.3mm |
| Grease fitting G | = | M6x1 |
| Load rating | ||
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| Unit information | ||
| Operating temperature min. | = | -20°C |
| Operating temperature max. | = | 100°C |
| Mass | = | 1.788 kg |
| Recommended tightening torque for set screw | = | 11.5 Nm |
